PKD915SM1SS WARMING DRAWER

Products

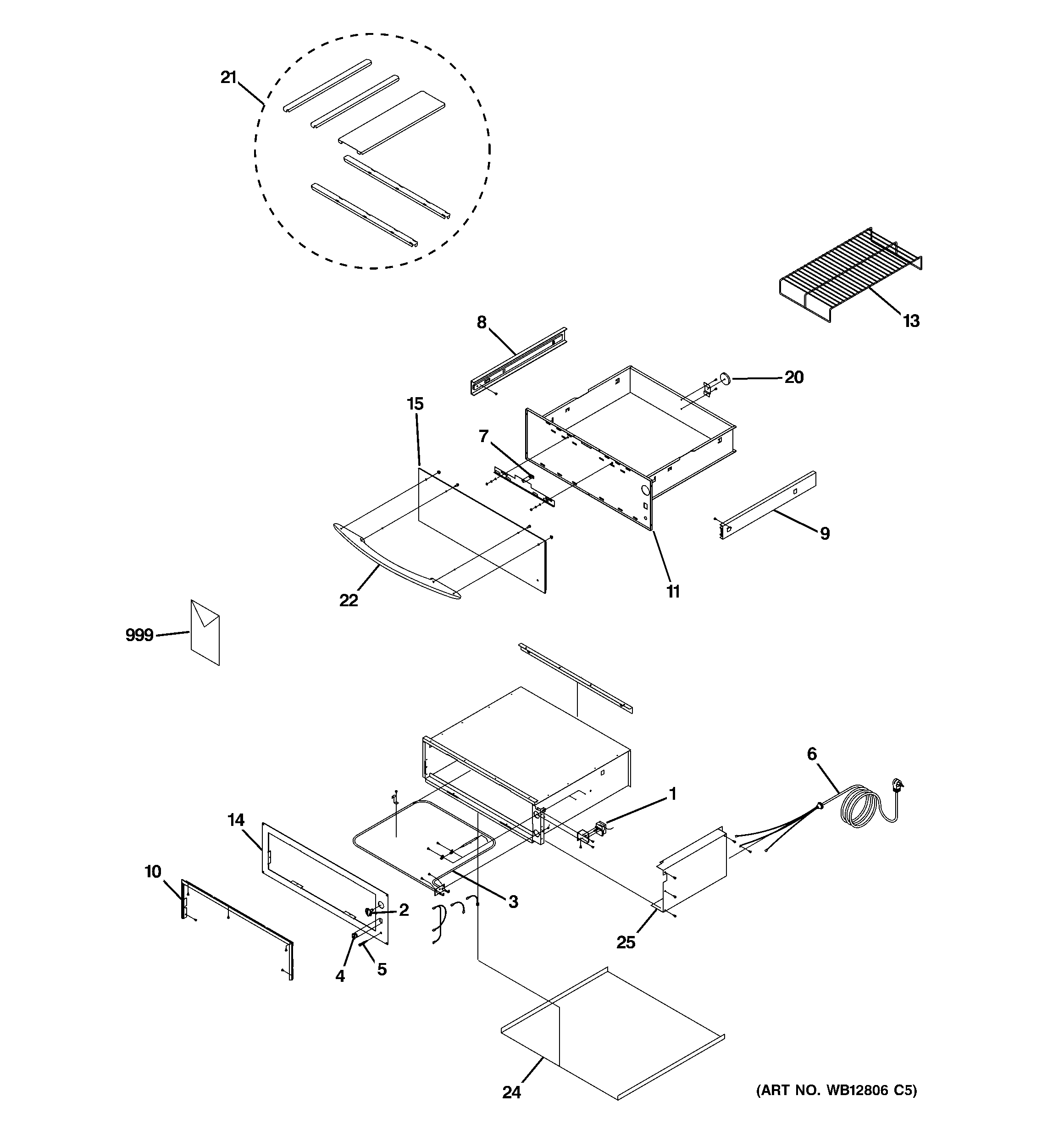

Position	Product
1	THERMOSTAT
2	GEN WB03X10060
3	WB44X10029 GE Oven Heating Element
4	GEN WB24X10036
5	GEN WB02X10819
6	GEN WB02X10588
7	KNOB, VENT SLIDE
8	GEN WB39X10014
9	GEN WB39X10015
10	WB02X11288 GE Range Gasket 27"
11	GEN WB58X10021
13	WB48X10045 GE Wire Rack
14	GEN WB56X10781
15	GEN WB56X10783
20	GEN WB02X11339
21	WB64X10031 GE 27" Rail Kit Svce Assembly
22	GEN WB15T10153
24	BOTTOM COVER 27"
25	GEN WB02X11007
999	USE & CARE MANUAL
