PKS7000BN1TS CONTROL PANEL

PKS7000BN1TS CONTROL PANEL

Written by

in

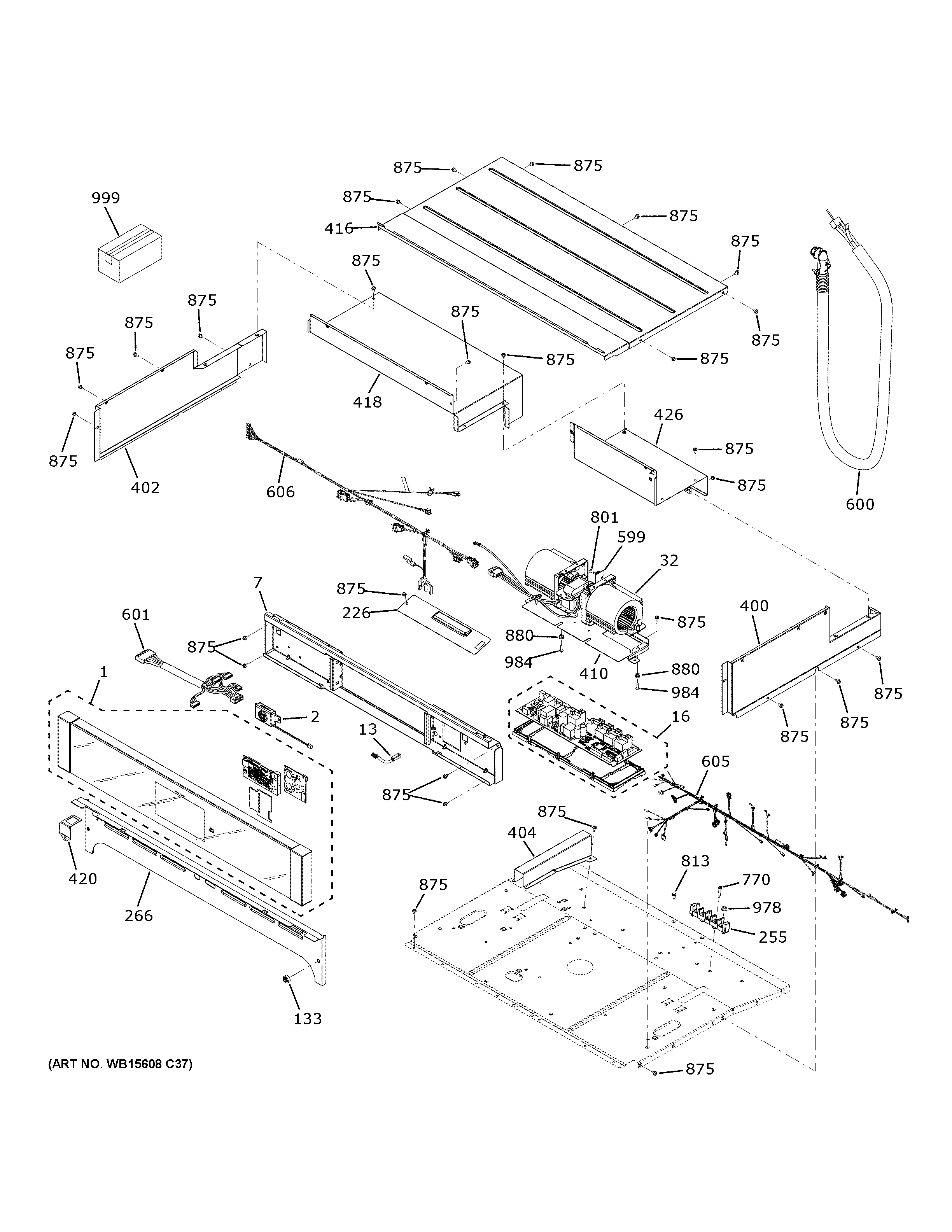

PKS7000BN1TS CONTROL PANEL

Products

PositionProduct
1WB56X40073 GE Black Stainless Control Panel
2WB27X33354 GE Speaker 70C 3W
7WB07X32470 GE Control Panel Mounting BRack
13WB18X30704 GE Jumper
16WB27X32939 GE Control Board Assembly
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
226WB34T10161 GE Access Latch Cover
255WB17K10001 GE Oven Block Terminal
266WB07X32859 GE Upper Vent Trim
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416COVER TOP FRONT
418TOP REAR COVER
420WB24X33028 GE RJ45 Bracket
426COVER WIRE REAR
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10581 GE Oven 6 FT Optional Conduit
600WB18X35246 GE Conduit Wire SWO
601WB18X32919 GE COM Wire Harness
605WB18X32880 GE Main Harness Wire
606LATCH COM WIRE HARNESS
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
999INSTRUCTION INSTALL
999MANUAL U&C TIP SHEET
999WB02T10303 GE Cleaner Lubricant
999PM INSTALL INSTRUCTIONS
