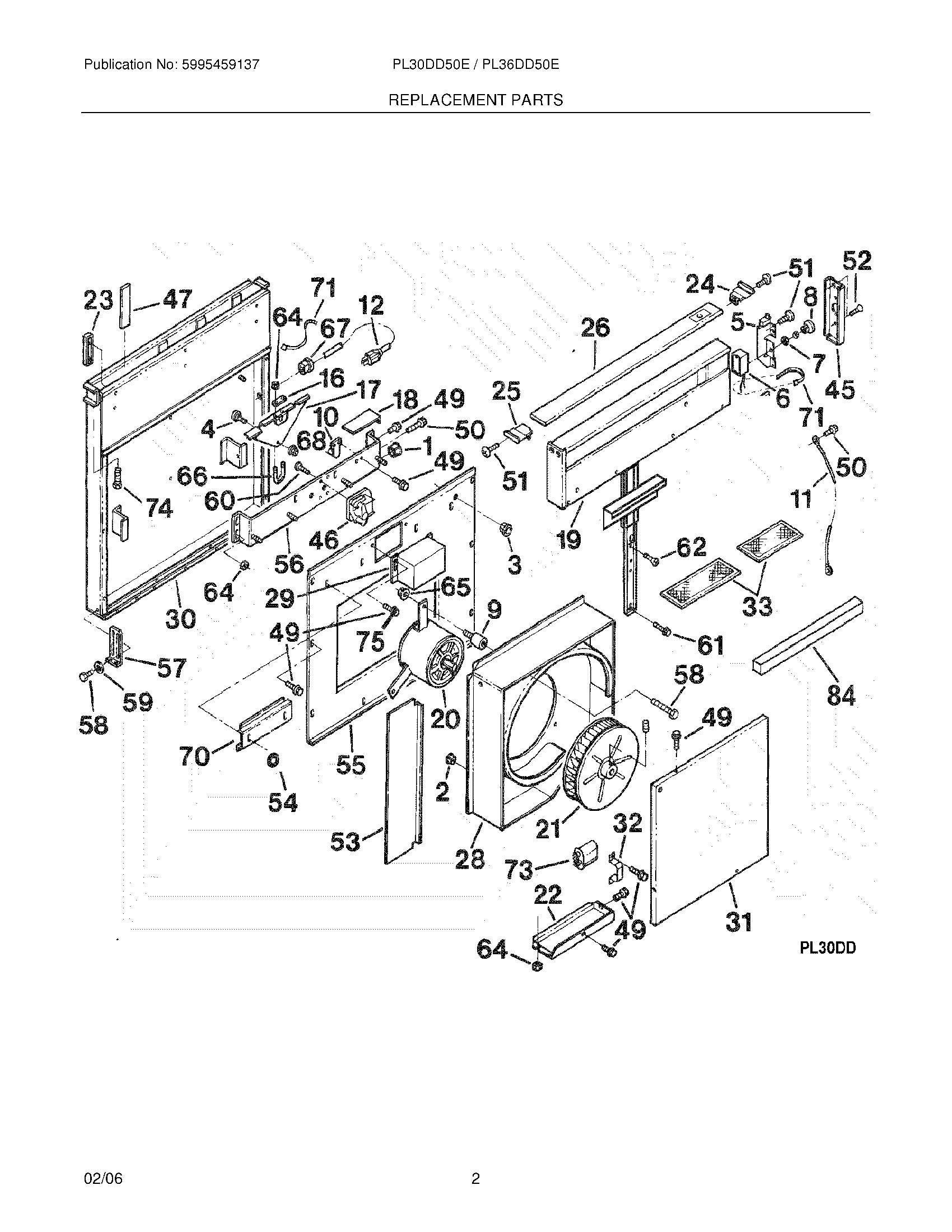

PL30DD50EC 03 – REPLACEMENT PARTS

Products

PositionProduct
1WCI 5303282136
2Bushing,split ,5/8 inch
3Bushing,1/2 inch
4WCI 5303304158
5Switch Assembly,vent up/down
6Wiring Harness,speed control
7WCI 5303303680
8Knob,control ,on/off/speed
9Isolator,motor mount
10Bracket,switch assembly ,lower
11WCI 5304452621
12Wiring Harness,main
16Plate,back-up
17WCI 5303282116
18Cover,switch
19Chimney Assy,30 inch ,w/slide
20Motor,with capacitor
21Blower Wheel,fan
22Extension,scroll box
23Spacer,air box
24Bracket,top cover ,right side
25Bracket,top cover ,left side
26WCI 5304454055
26WCI 5304452716
26WCI 5304452714
28Scroll Box,blower housing
29Cover,gear motor
30Air Box,30 inch model
31Cover,scroll box
32Strap,capacitor mount
33Filter,kit ,with 2 filters
45WCI 5304454057
46WCI 5303282122
47Slide Strip,air box
49WCI 5303281950
50WCI 5303282015
51131243700 Frigidaire Screw
52Screw,8-18 x 0.500
53Cover,air box opening ,30“ unit
54Nut,10-24
55WCI 5303303935
56Bracket,gearmotor mount
57Bracket,leveling leg
58Screw,1/4-20 x 0.312
59316008401 Frigidaire Washer P-1
605303307980 Frigidaire Oven Screw
61Screw,locking ,10-24 x 0.375
62Screw,10-24 x 0.375
645303013272 Frigidaire Oven Nut
65Nut,locking ,1/4-20
66Bolt,U type ,10-24
67WCI 5303282134
68Nut,hex flange ,5/16-18
70WCI 5304452650
71WIRE TIE
73Capacitor,motor
74WCI 5304452651
75WCI 5303282121
84WCI 5304450342
