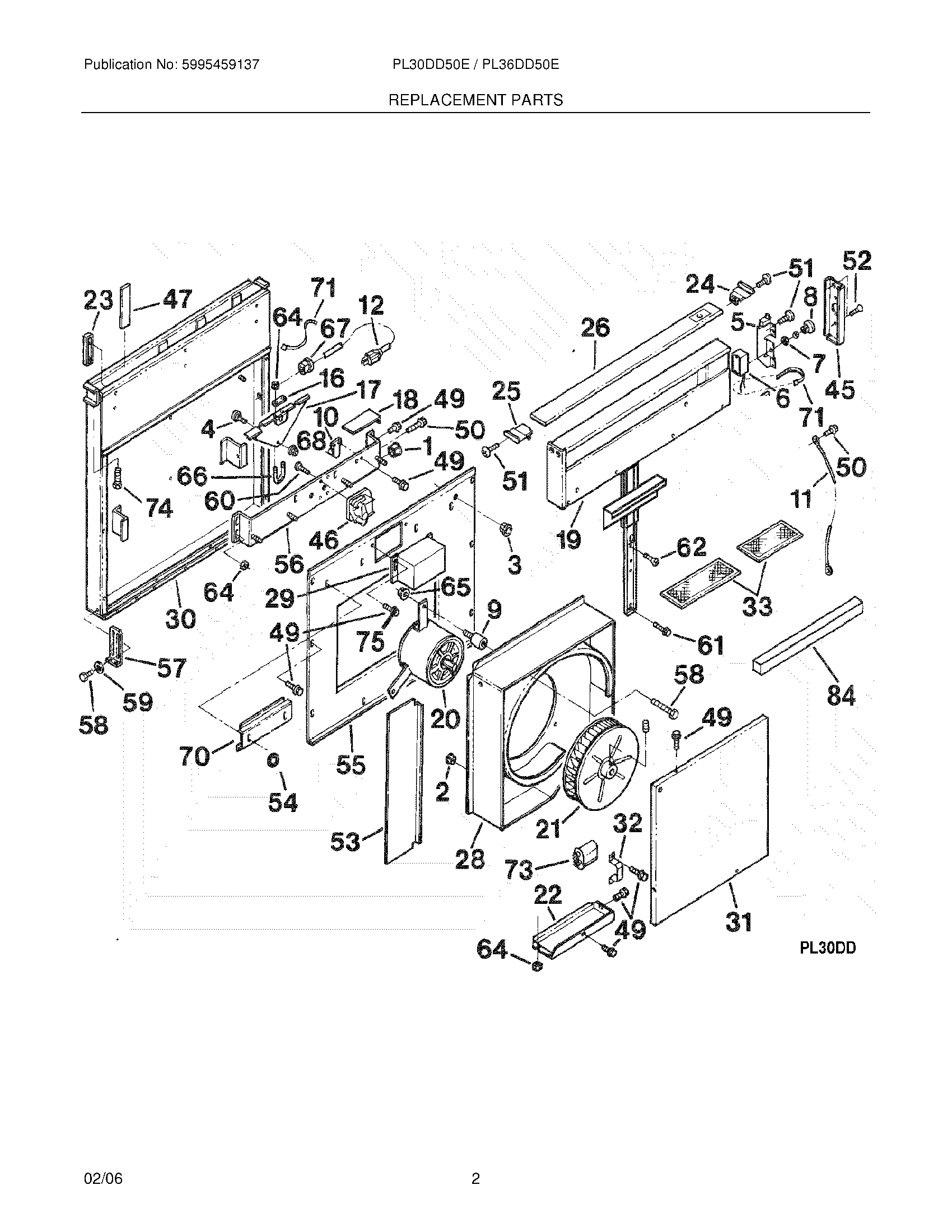

PL36DD50EC 03 – REPLACEMENT PARTS

Products

Position	Product
1	WCI 5303282136
2	Bushing,split ,5/8 inch
3	Bushing,1/2 inch
4	WCI 5303304158
5	Switch Assembly,vent up/down
6	Wiring Harness,speed control
7	WCI 5303303680
8	Knob,control ,on/off/speed
9	Isolator,motor mount
10	Bracket,switch assembly ,lower
11	WCI 5304452621
12	Wiring Harness,main
16	Plate,back-up
17	WCI 5303282116
18	Cover,switch
19	Chimney Assy,36 inch ,w/slide
20	Motor,with capacitor
21	Blower Wheel,fan
22	Extension,scroll box
23	Spacer,air box
24	Bracket,top cover ,right side
25	Bracket,top cover ,left side
26	WCI 5304454056
26	WCI 5304452719
26	WCI 5304452717
28	Scroll Box,blower housing
29	Cover,gear motor
30	Air Box,36 inch model
31	Cover,scroll box
32	Strap,capacitor mount
33	Filter,kit ,with 2 filters
45	WCI 5304454057
46	WCI 5303282122
47	Slide Strip,air box
49	WCI 5303281950
50	WCI 5303282015
51	131243700 Frigidaire Screw
52	Screw,8-18 x 0.500
53	Cover,air box opening ,36`` unit
54	Nut,10-24
55	Cover,air box ,36`` unit
56	Bracket,gearmotor mount
57	Bracket,leveling leg
58	Screw,1/4-20 x 0.312
59	316008401 Frigidaire Washer P-1
60	5303307980 Frigidaire Oven Screw
61	Screw,locking ,10-24 x 0.375
62	Screw,10-24 x 0.375
64	5303013272 Frigidaire Oven Nut
65	Nut,locking ,1/4-20
66	Bolt,U type ,10-24
67	WCI 5303282134
68	Nut,hex flange ,5/16-18
70	WCI 5304452650
71	WIRE TIE
73	Capacitor,motor
74	WCI 5304452651
75	WCI 5303282121
84	WCI 5304450341
