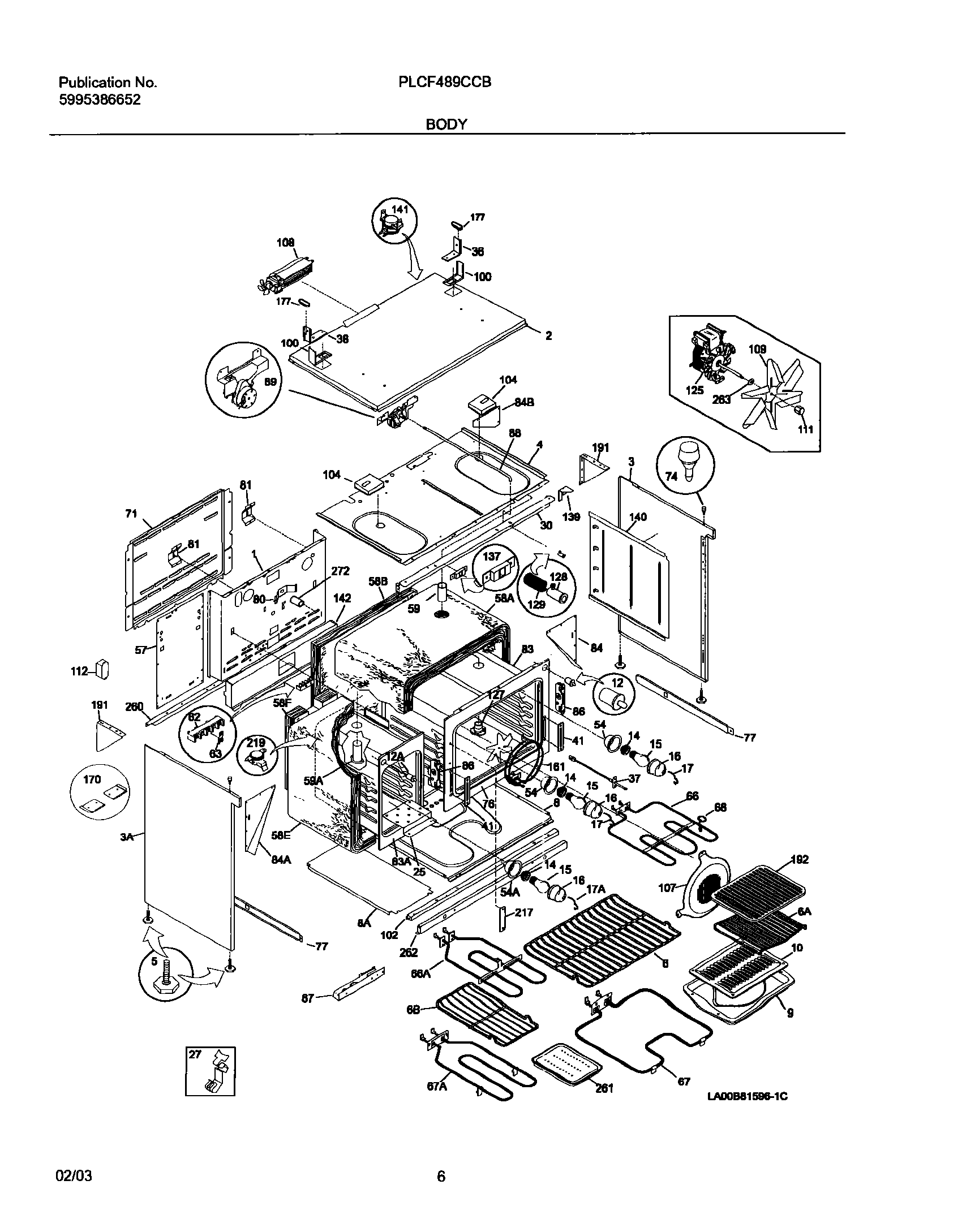

PLCF489CCB 07 – BODY

Products

Position	Product
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	316205500 Frigidaire Oven Nut
NI	5303307980 Frigidaire Oven Screw
NI	WCI 318120711
NI	WCI 5303311207
NI	5303211311 Frigidaire Refrigerator Screw
1	WCI 318066402
2	WCI 318173610
3	WCI 3201579
3A	WCI 3201580
4	WCI 318073707
5	318175503 Frigidaire Screw with Bolt
6B	WCI 318119700
6A	WCI 318219500
6	318345205 Frigidaire Oven Rack
8	Panel,heat shield ,oven bottom
8A	WCI 318071900
9	WCI 5303317977
10	WCI 5303317976
12	318394803 Frigidaire Oven Switch
12A	WCI 5301314211
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
17A	RETAINER-LENS
25	WCI 318179107
27	5303284616 Frigidaire Range Bulb Clip Thermostat
30	WCI 318023915
36	WCI 318182111
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54A	WCI 5303271606
54	WCI 318222400
57	WCI 318055701
58E	WCI 318133720
58B	WCI 318133769
58A	WCI 318133744
58F	WCI 318133721
59A	WCI 318072521
59	WCI 5303320844
62	5304409888 Frigidaire Oven Terminal Block with Hardware
63	WCI 316208500
66	318255605 Frigidaire Oven Broil Element Range
66A	WCI 318110100
67	BAKE ELEMENT
67A	318255201 Frigidaire Oven Small Bake Element
68	5304403015 Frigidaire Oven Support
71	WCI 5303310515
74	WCI 318147420
76	WCI 318056004
77	WCI 318144211
80	WCI 5303320846
81	WCI 318192400
83	WCI 318089617
83A	WCI 318089200
84B	WCI 318055901
84A	WCI 5303326185
84	WCI 5303326184
86	WCI 5303310524
87	WCI 318111800
88	WCI 5303311160
89	318095956 Frigidaire Oven Motor
100	WCI 318182011
102	WCI 318111901
104	WCI 318182212
107	WCI 318219401
108	WCI 318073002
109	FAN BLADE
111	316136600 Frigidaire Oven Range Lock Nut
112	WCI 318112701
125	5303311202 Frigidaire P1-Motor-Conv
127	318317100 Frigidaire Adapter Assembly
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
137	318090310 Frigidaire Oven Latch
139	WCI 318042900
140	WCI 318071300
141	WCI 318005201
142	WCI 318123901
161	318255511 Frigidaire Oven Heating Element
170	WCI 5304405241
177	WCI 5303324040
191	WCI 5303304030
217	WCI 318112102
219	WCI 318003600
260	WCI 318055500
261	WCI 08014183
262	Channel,oven support ,front
263	316008401 Frigidaire Washer P-1
