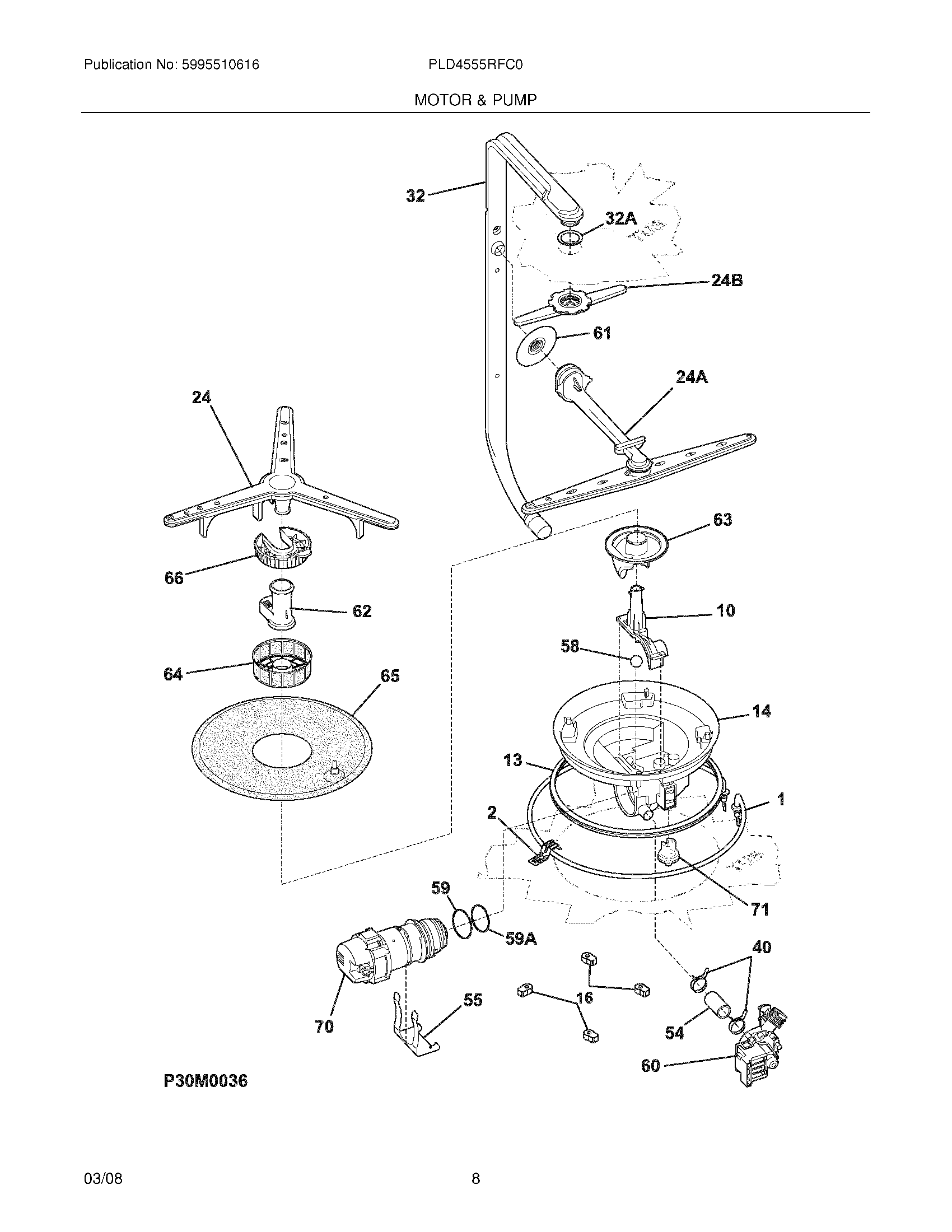

PLD4555RFC0 09 – MOTOR & PUMP

PLD4555RFC0 09 – MOTOR & PUMP

Written by

in

PLD4555RFC0 09 – MOTOR & PUMP

Products

PositionProduct
NIWCI 154200601
NI154289801 Frigidaire Dishwasher Shield
NI154491101 Frigidaire Dishwasher Screw
NI154779601 Frigidaire Dishwasher Screw
NI154106202 Frigidaire Dishwasher Heater Nut
NIWCI 5303316032
NI154380601 Frigidaire Dishwasher Clamp Assembly
NIWCI 154376001
1154825001 Frigidaire Dishwasher Round Heater Heating Element
2154465101 Frigidaire Dishwasher Heating Element Support Bracket
10807145201 Frigidaire Dishwasher Cover-Volute
13154246801 Frigidaire Dishwasher Primary Gasket
14154461902 Frigidaire Dishwasher Housing
16154246502 Frigidaire Dishwasher Bracket
24154608102 Frigidaire Spray Arm
24B5304506516 Frigidaire Dishwasher Upper Spray Arm
24AA01986801 Frigidaire Upper Rack Assembly
325304507087 Frigidaire Dishwasher Tube
32A154406401 Frigidaire Delivery Tube Gasket
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
555304534830 Frigidaire Dishwasher Bracket
58154246402 Frigidaire Dishwasher P-1 BALL
59A154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60154580301 Frigidaire Drain Pump Assembly
615304506517 Frigidaire Dishwasher Grommet Assembly
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
65WCI 154283006
665304532206 Frigidaire Trap
70154844101 Frigidaire Dishwasher Pump and Motor Assembly
71154473901 Frigidaire Dishwasher Sensor
