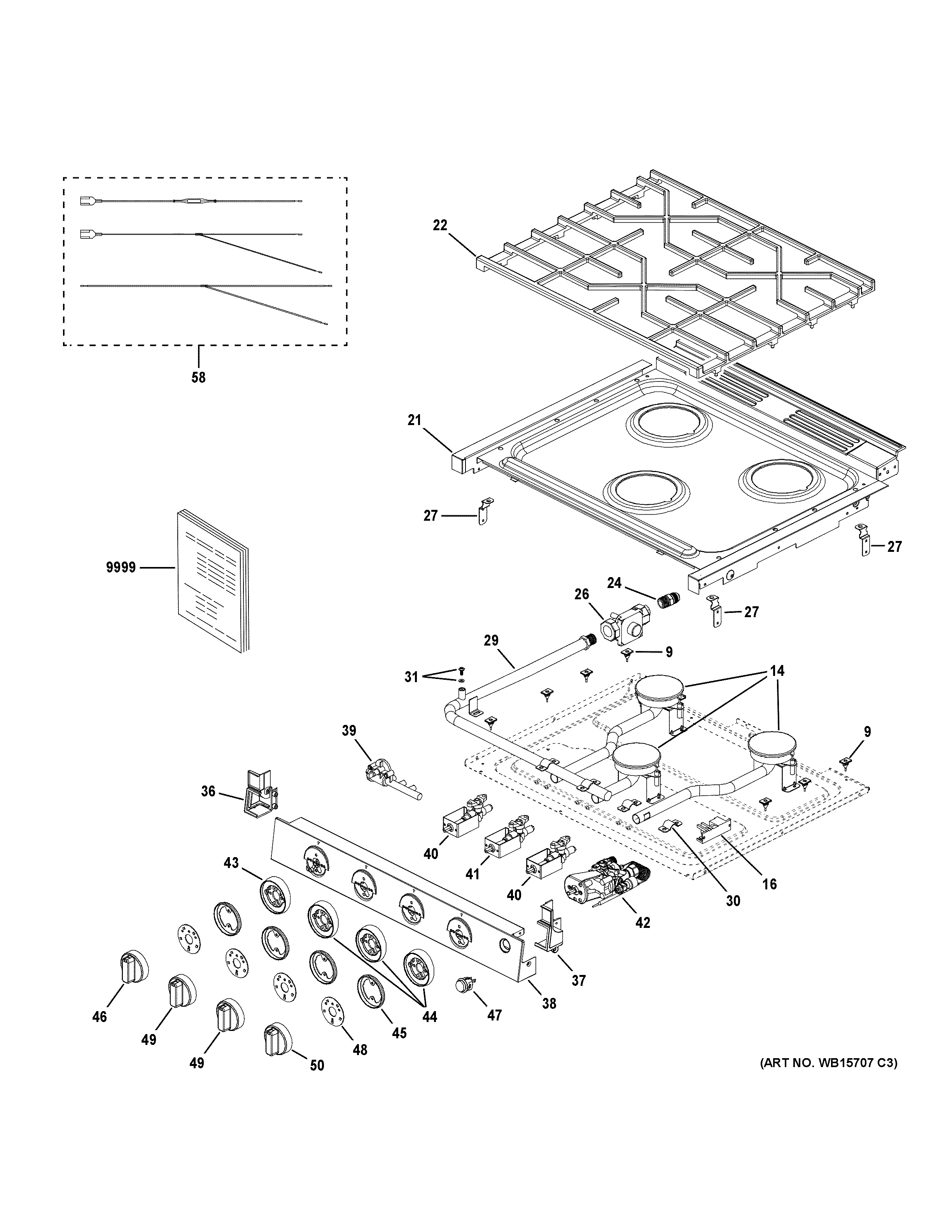

PLD617EW1SB CONTROL PANEL & COOKTOP

Products

Position	Product
9	GRATE BUMPERS
14	FRONT AND REAR BURNER ASM
16	PULSE IGNITER
21	COOKTOP ASM 3 BURNERS
22	GRATE
24	GAS ADAPTER
26	REGULATOR
27	COOKTOP SUPPORT BRACKET
29	MANIFOLD PIPE
30	VALVE CLAMP
31	WB21X43613 GE Gasket Seal and Screw Assembly
36	PLASTIC ENDCAP (LEFT)
37	PLASTIC ENDCAP (RIGHT)
38	MANIFOLD
39	SPARK MODULE
40	REAR BURNER KNOB VALVE
41	FRONT BURNER KNOB VALVE
42	OVEN VALVE
43	IGNITION KNOB BEZEL
44	KNOB BEZEL
45	LIGHT GUIDES
46	KNOB IGNITOR
47	LIGHT SWITCH
48	BACKLIGHT LED 12V
49	COOKTOP KNOB
50	OVEN KNOB
58	HARNESS
9999	PRINTED AND ONLINEOWNERS AND INSTALL
9999	PM OWNERS AND INSTALL
