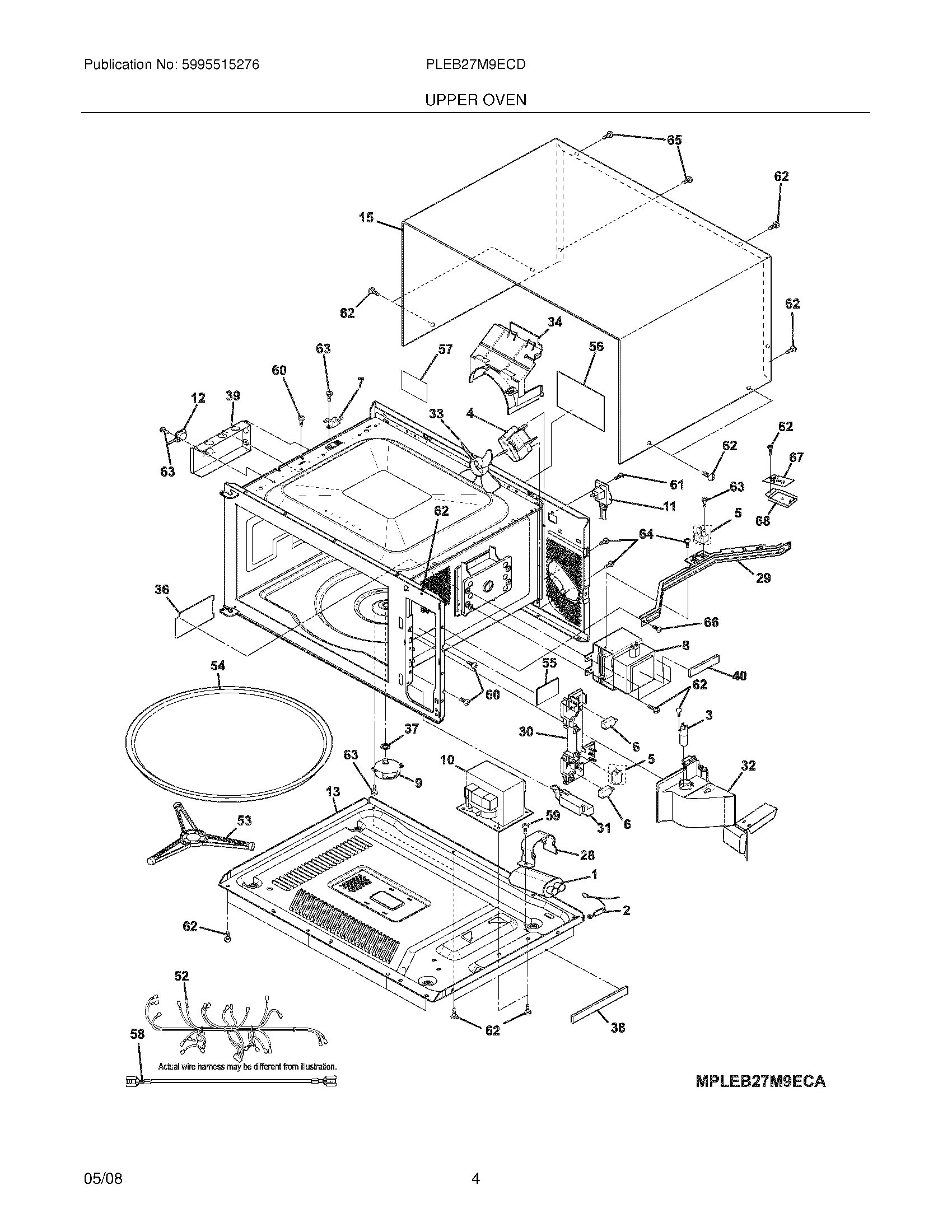

PLEB27M9ECD 05 – UPPER OVEN

PLEB27M9ECD 05 – UPPER OVEN

Written by

in

PLEB27M9ECD 05 – UPPER OVEN

Products

PositionProduct
15304487566 Frigidaire Microwave Capacitor
25304468869 Frigidaire Microwave Rectifier
35304500304 Frigidaire Microwave Lamp Assembly with SO
45304493152 Frigidaire Microwave Motor
55303319559 Frigidaire Microwave Fuse and Switch Kit
65304493153 Frigidaire Microwave Door Switch
75304440780 Frigidaire Microwave Fuse
85304521745 Frigidaire Microwave Magnetron
95304448832 Frigidaire Microwave Motor
105304492212 Frigidaire Microwave Transformer
115304440784 Frigidaire Microwave Power Cord
125304440785 Frigidaire Microwave Sensor
13WCI 5304440814
15WCI 5304440816
28WCI 5304440838
29WCI 5304440839
305304503439 Frigidaire Microwave Latch Hook
315304485407 Frigidaire Microwave Door Release Assembly
32WCI 5304440842
33WCI 5304440843
34WCI 5304440844
365304440845 Frigidaire Microwave Cover
37WCI 5304440288
38WCI 5304441909
39WCI 5304440847
40WCI 5304441910
525304499758 Frigidaire Microwave Wiring Harness
535304467717 Frigidaire Microwave Glass Tray Support
545304529482 Frigidaire Glass Tray Assembly
555304440334 Frigidaire Microwave Label
565304440333 Frigidaire Label
57LABEL, CAUTION, UL SCREW
58WCI 5304440870
59WCI 5303319636
605303319641 Frigidaire Screw
615304462315 Frigidaire Microwave Screw
625304451553 Frigidaire Microwave Screw
62WCI 5304452261
63WCI 5303319633
645304450253 Frigidaire Microwave Screw
655304440873 Frigidaire Screw
675304492543 Frigidaire Microwave Electronic Noise Filter
68WCI 5303322975
