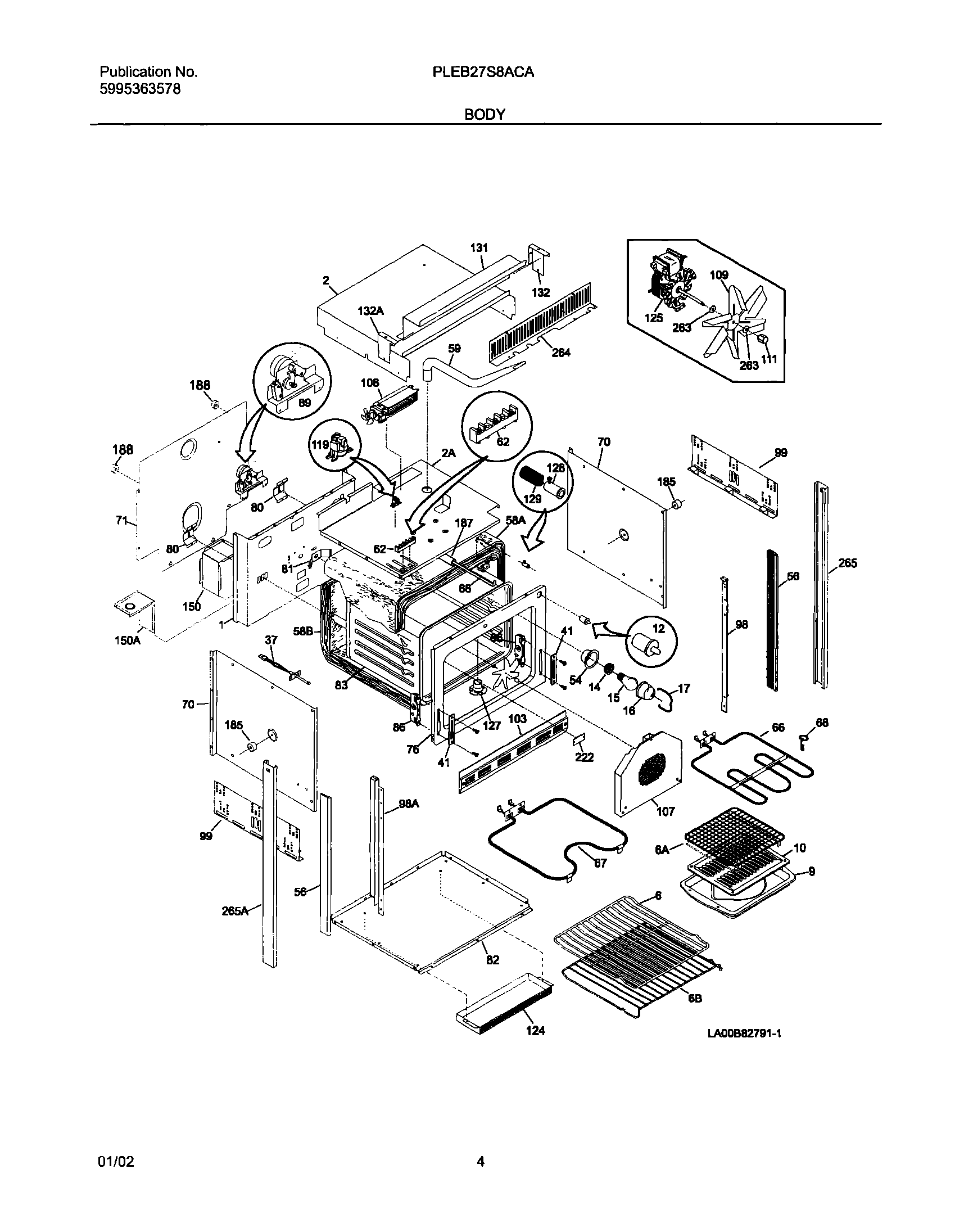

PLEB27S8ACA 05 – BODY

PLEB27S8ACA 05 – BODY

Written by

in

PLEB27S8ACA 05 – BODY

Products

PositionProduct
NI5303324184 Frigidaire Wall Oven Range Screw
NICLIP-WIRE
NIWCI 5303320422
NI3201861 Frigidaire Screw
NIWCI 318078511
NIWCI 318120710
NI5303211311 Frigidaire Refrigerator Screw
NI08002868 Frigidaire 0 Screw Assembly
1WCI 318066700
2AWCI 318071501
2WCI 318102001
6WCI 318025300
6BWCI 318025200
6AShelf,broiler pan
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 318145516
58AWCI 318133750
58BWCI 318133749
59WCI 318072511
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255100 Frigidaire Oven Range Bake Element, 2300W
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 318071102
76WCI 318056104
80WCI 318192400
81WCI 5303320846
82WCI 318071801
83WCI 318089519
86WCI 5303310524
88WCI 5303311222
89318095956 Frigidaire Oven Motor
98AWCI 318029801
98WCI 318029800
99WCI 318055420
103TRIM-BASE,SMALL ,BLACK
103WCI 5303316773
107WCI 5303318711
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076902
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102203
132END-COVER, CONTROL HSG, LH
132END-COVER, CONTROL HSG, RH
150BRACKET-SUPPORT, ACCESS COVER, RH
150BRACKET-SUPPORT, ACCESS COVER, LH
185318531800 Frigidaire Oven Spacer
187WCI 318013501
188318531702 Frigidaire Oven Spacer
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
264WCI 318143811
265WCI 318029501
265WCI 318029500
