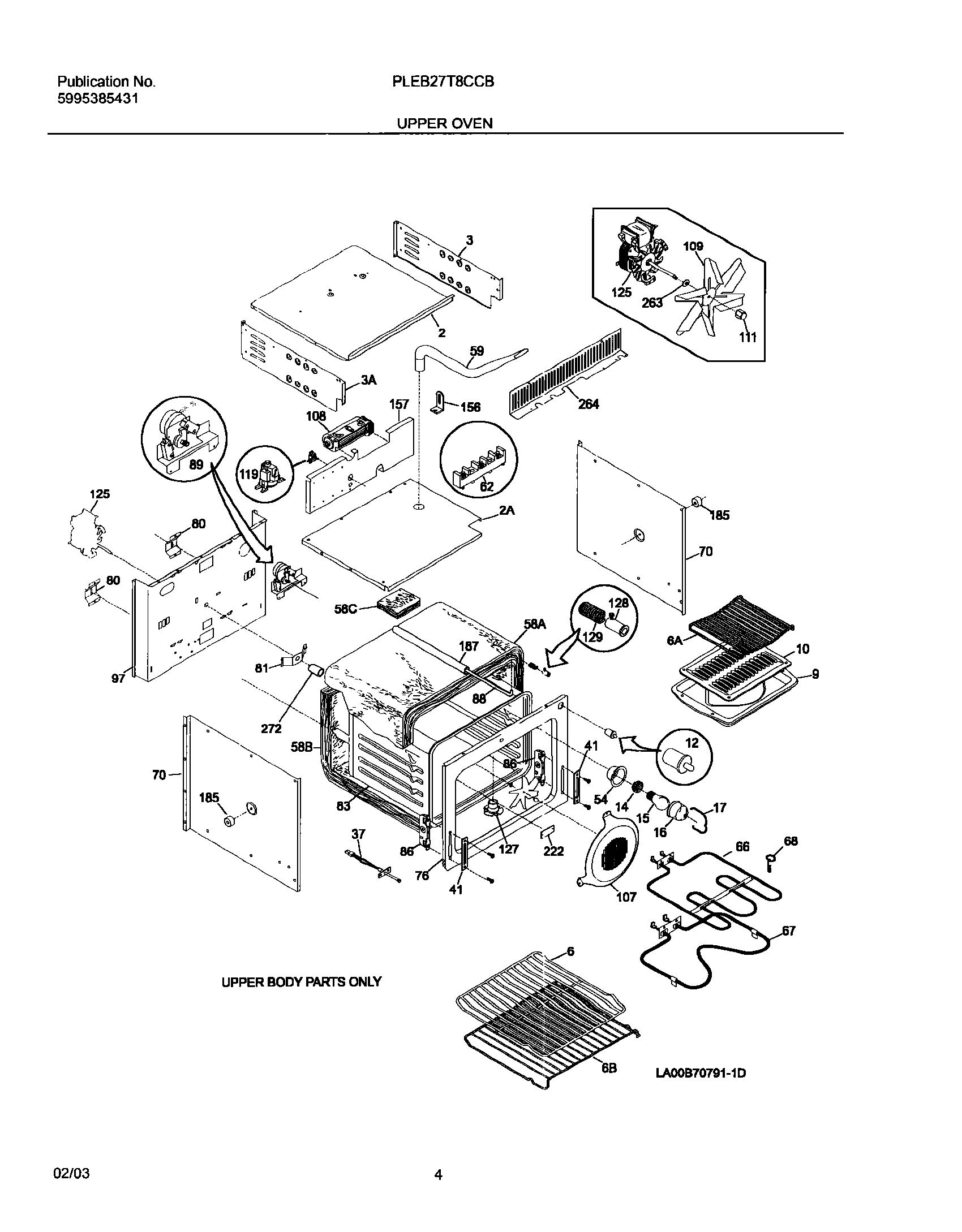

PLEB27T8CCB 05 – UPPER OVENM BODY

Products

Position	Product
NI	CLIP-WIRE
NI	WCI 318078507
NI	08002868 Frigidaire 0 Screw Assembly
NI	5303323139 Frigidaire Oven Screw
NI	5304480396 Frigidaire Screw
NI	WCI 318120711
NI	316205500 Frigidaire Oven Nut
NI	5303211311 Frigidaire Refrigerator Screw
2A	WCI 318071502
2	WCI 318070203
3	WCI 318070610
3A	WCI 318070611
6	WCI 318025300
6A	WCI 318219500
6B	WCI 318025200
9	WCI 5303317977
10	WCI 5303317976
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
37	316217002 Frigidaire Oven Temperature Probe
41	WCI 5303310526
54	WCI 318222400
58C	WCI 5303316994
58A	WCI 318133758
58B	WCI 318133749
59	WCI 318072511
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	5303016247 Frigidaire Broil Element
67	318255100 Frigidaire Oven Range Bake Element, 2300W
68	5304403015 Frigidaire Oven Support
70	WCI 5303300142
76	WCI 318056104
80	WCI 5303320846
81	WCI 318192400
83	WCI 318089524
86	WCI 5303310524
88	WCI 5303311222
89	318095956 Frigidaire Oven Motor
97	WCI 318066703
107	WCI 318219401
108	WCI 318073012
109	FAN BLADE
111	316136600 Frigidaire Oven Range Lock Nut
119	318004900 Frigidaire Thermal Switch
125	5303311202 Frigidaire P1-Motor-Conv
127	318317100 Frigidaire Adapter Assembly
128	WCI 5303311163
129	5303311164 Frigidaire Oven Spring
156	WCI 318024100
157	WCI 318071602
185	318531800 Frigidaire Oven Spacer
187	WCI 318013501
222	PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263	316008401 Frigidaire Washer P-1
264	WCI 318143811
272	WCI 5303311207
