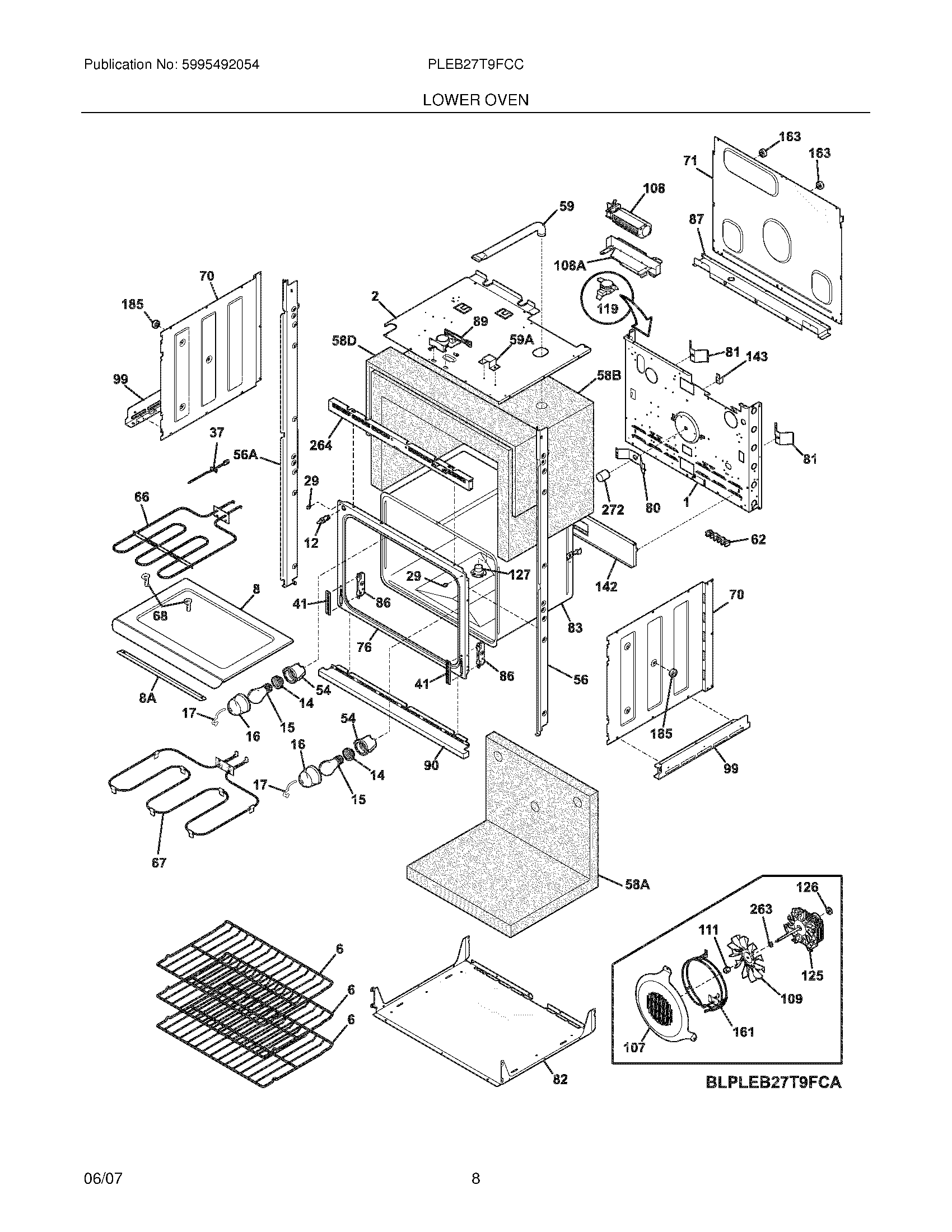

PLEB27T9FCC 07 – LOWER OVEN

PLEB27T9FCC 07 – LOWER OVEN

Written by

in

PLEB27T9FCC 07 – LOWER OVEN

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NIWCI 318340201
NI316205500 Frigidaire Oven Nut
NI5304506955 Frigidaire Harness Assembly
NIWCI 318370313
NI5303323139 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318199746
NIWCI 318268099
NI5304436875 Frigidaire Oven Screw
NIWCI 318231750
NISCREW,TRUSS HEAD,8-18 X 0.375
NIWCI 318199744
1WCI 318259213
2WCI 318258910
6WCI 318345210
8WCI 318262011
8AWCI 318318600
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
29318147430 Frigidaire Oven Bumper
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 318222400
56AWCI 318903605
56318903676 Frigidaire Oven Trim
58BWCI 318285059
58AWCI 318285060
58DWCI 318285058
59AWCI 318261600
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255606 Frigidaire Range Oven Broil Element
67318254902 Frigidaire Oven Element
685304403015 Frigidaire Oven Support
70WCI 318259100
71WCI 318260001
76WCI 318056222
80WCI 5303320846
81WCI 318192400
82WCI 318258710
83WCI 318261500
86WCI 318342400
87WCI 318260601
89318261229 Frigidaire Oven Motor
90WCI 318259812
99318256201 Frigidaire Oven Bracket
107WCI 318219401
108318073028 Frigidaire Oven Motor
108WCI 318251300
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
125WCI 5303316994
1255304467898 Frigidaire Oven Kit Assembly
126Clip,insulator
127318317100 Frigidaire Adapter Assembly
142WCI 318123910
143318172904 Frigidaire Bracket
161318255504 Frigidaire Oven Element
163WCI 318014111
185318531800 Frigidaire Oven Spacer
263316008401 Frigidaire Washer P-1
264WCI 318257811
272WCI 318249401
