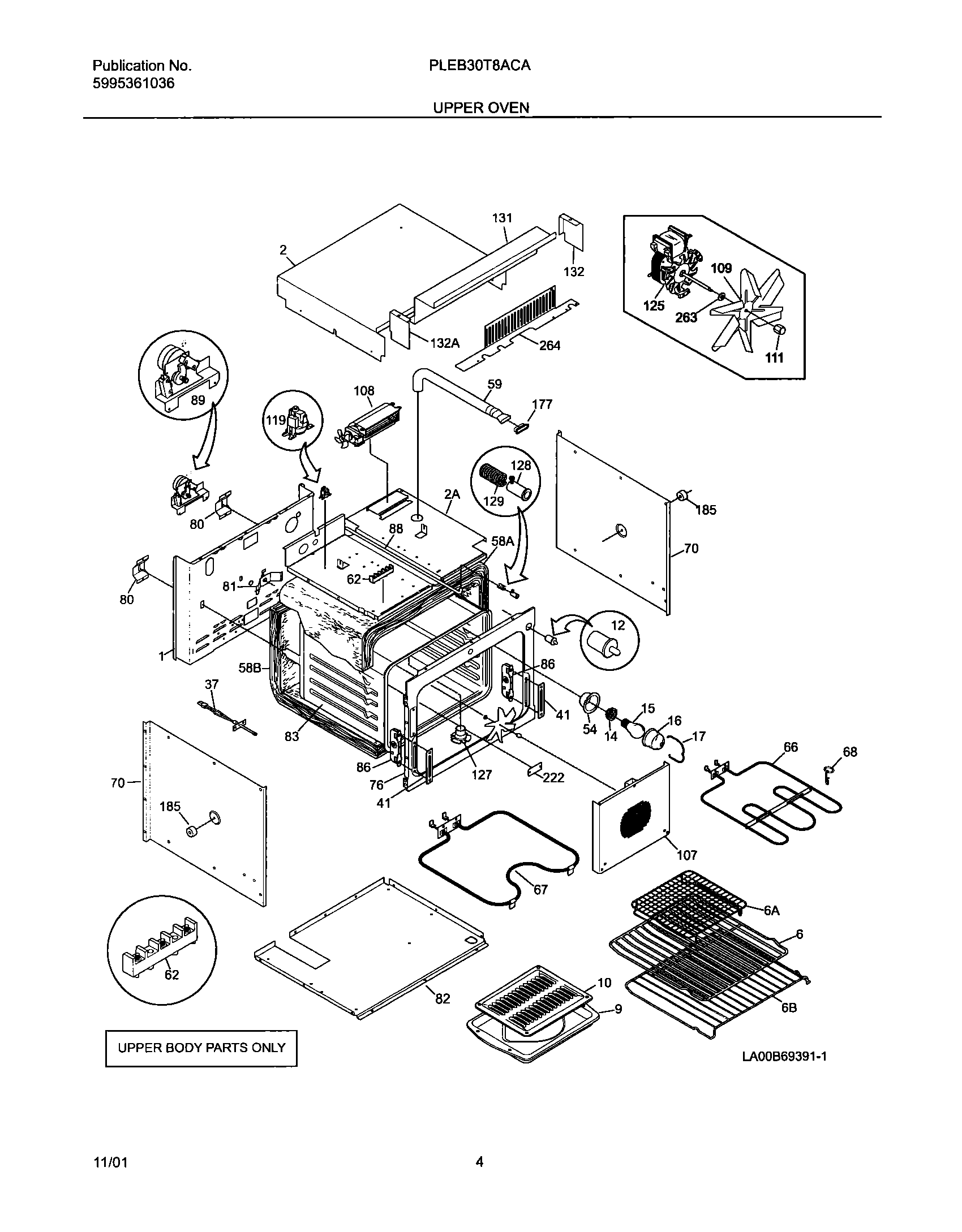

PLEB30T8ACA 05 – UPPER OVEN

PLEB30T8ACA 05 – UPPER OVEN

Written by

in

PLEB30T8ACA 05 – UPPER OVEN

Products

PositionProduct
NI5303323139 Frigidaire Oven Screw
NIWCI 5303311528
NIWCI 318078507
NI08002868 Frigidaire 0 Screw Assembly
NIWCI 5303302745
NIWCI 318120710
NI5303211311 Frigidaire Refrigerator Screw
1WCI 318066402
2WCI 318102101
2AWCI 318071705
6AShelf,broiler pan
6318345205 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
58BWCI 318133769
58AWCI 318133744
59WCI 318072506
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 5303300142
76WCI 318056202
80WCI 318192400
81WCI 5303320846
82WCI 318072301
83Liner,oven
86WCI 5303310524
88WCI 5303311222
89318095956 Frigidaire Oven Motor
107WCI 318119600
108WCI 318073012
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
131WCI 318102301
132END-COVER, CONTROL HSG, RH
132END-COVER, CONTROL HSG, LH
177WCI 318053800
185318531800 Frigidaire Oven Spacer
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
264WCI 318143815
