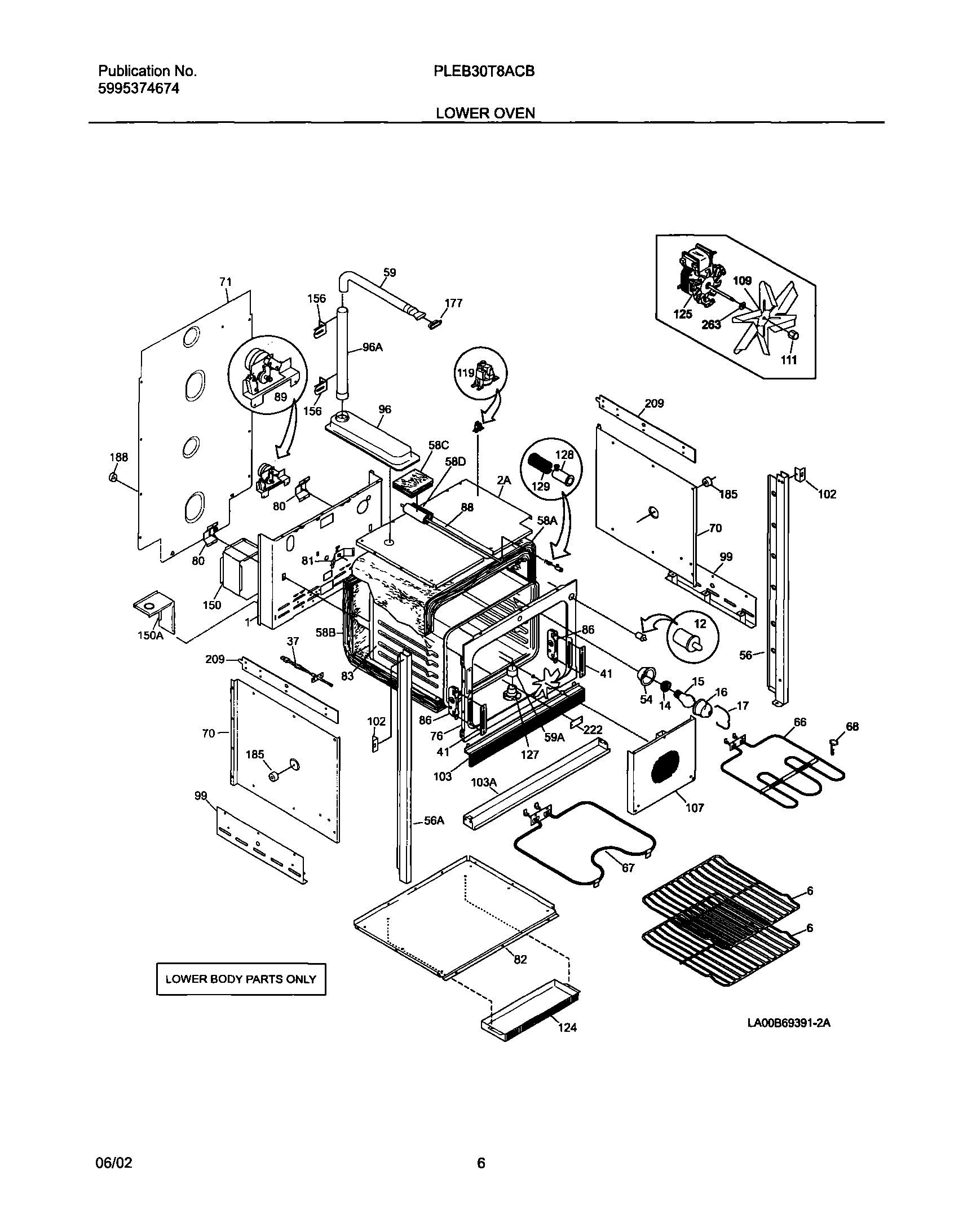

PLEB30T8ACB 07 – LOWER OVEN

PLEB30T8ACB 07 – LOWER OVEN

Written by

in

PLEB30T8ACB 07 – LOWER OVEN

Products

PositionProduct
NI08002868 Frigidaire 0 Screw Assembly
NIWCI 5303311207
NIWCI 318120711
NI5303211311 Frigidaire Refrigerator Screw
1WCI 318066402
2AWCI 318071704
6318345205 Frigidaire Oven Rack
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 318029111
56AWCI 318029110
58DWCI 318133757
58CWCI 318133755
58AWCI 318133744
58BWCI 318133769
59WCI 318072504
59AWCI 5303320844
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 318071211
76WCI 318056202
80WCI 318192400
81WCI 5303320846
82SHIELD-INSULATION
83WCI 318089607
86WCI 5303310524
88WCI 5303311222
89318095956 Frigidaire Oven Motor
96WCI 5303317197
96ADuct,oven vent ,center
99WCI 318055410
102WCI 318090900
103WCI 318028500
103TRIM-BASE,STAINLESS
107WCI 318119600
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
124WCI 318076903
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
150WCI 318072205
150WCI 318072204
156WCI 5303317198
177WCI 318053800
185318531800 Frigidaire Oven Spacer
188318531702 Frigidaire Oven Spacer
209WCI 318086200
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
263316008401 Frigidaire Washer P-1
