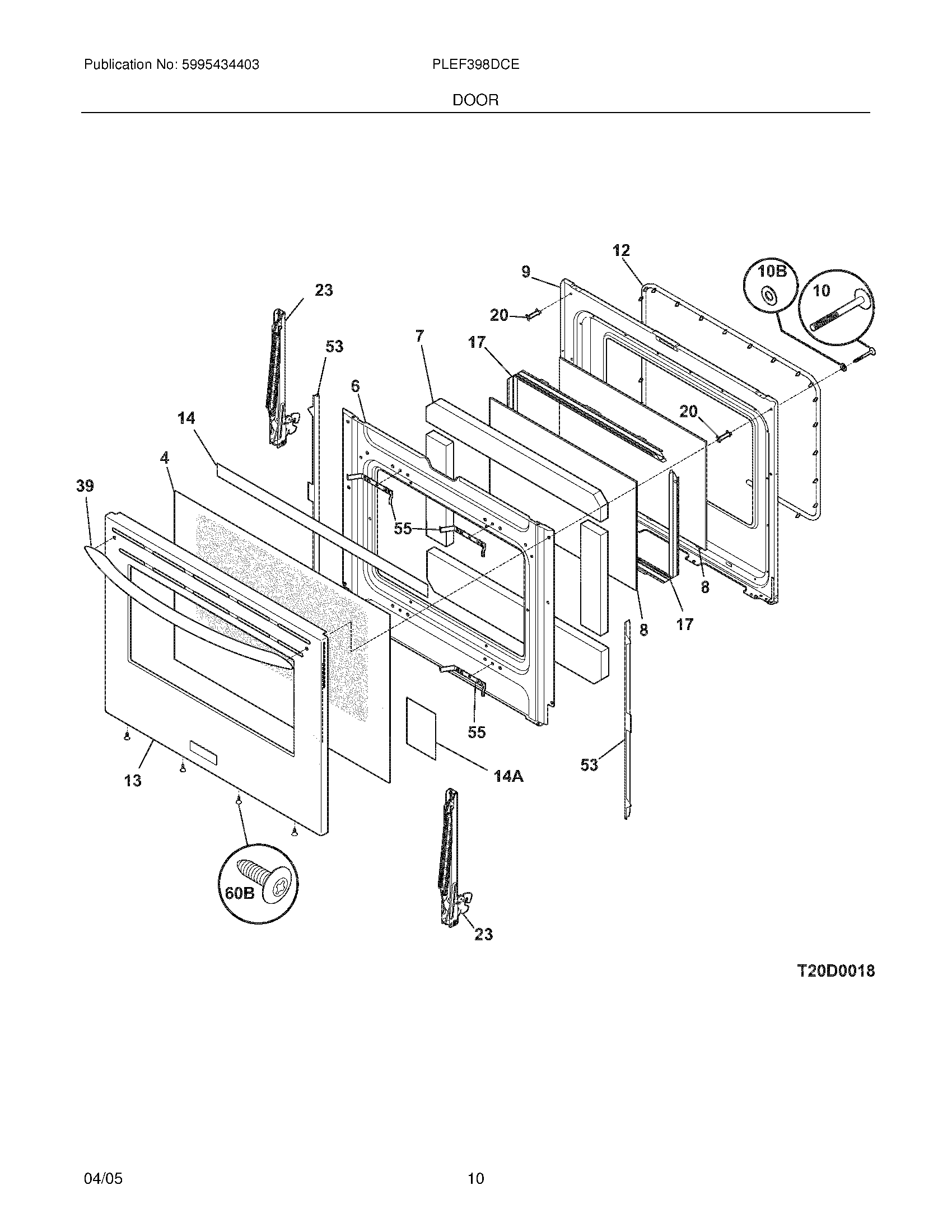

PLEF398DCE 09 – DOOR

PLEF398DCE 09 – DOOR

Written by

in

PLEF398DCE 09 – DOOR

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316418900 Frigidaire Oven Screw
NI316433603 Frigidaire Oven Label
NIWCI 316279700
NI5303271648 Frigidaire Oven Screw
4WCI 316408503
6316406328 Frigidaire Shield
7316405600 Frigidaire Insulation
85304503232 Frigidaire Oven Inner Door Glass
9WCI 316423701
10SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
10B316008401 Frigidaire Washer P-1
12316405000 Frigidaire Oven Seal
13WCI 316407903
14A316574601 Frigidaire Oven FOIL
14316574603 Frigidaire Oven FOIL
175304504811 Frigidaire Glass Spacer
20WCI 316408600
23316437704 Frigidaire Oven Hinge
39316246105 Frigidaire Oven Handle
535304532042 Frigidaire Shield-Filler Door
55316408300 Frigidaire Oven Bracket
60B316021109 Frigidaire Oven Screw
