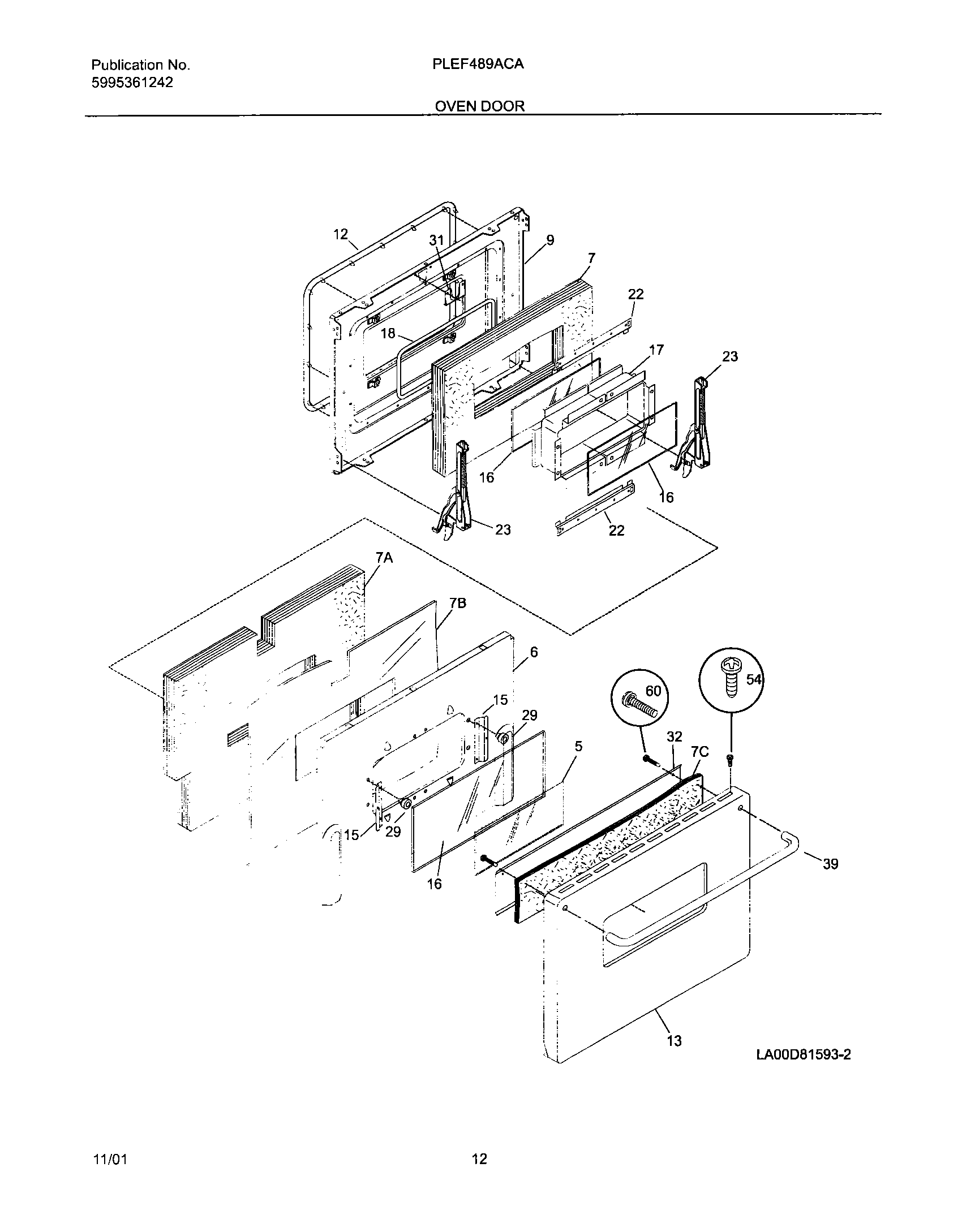

PLEF489ACA 11 – OVEN DOOR

PLEF489ACA 11 – OVEN DOOR

Written by

in

PLEF489ACA 11 – OVEN DOOR

Products

PositionProduct
NI5303323137 Frigidaire Oven Screw
NI5303307980 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 218490900
NISCREW,TRUSS HEAD,8-18 X 0.375
5WCI 318197300
6WCI 318057000
7WCI 318133706
7AWCI 318133753
7CINSULATION
7BWCI 5304400472
9WCI 5303320621
12318053103 Frigidaire Oven Door Seal Gasket
13WCI 318009110
15318172904 Frigidaire Bracket
16GLASS-OVEN DOOR, HEAT BARRIER
17WCI 318139000
18SEAL-ROPE
22WCI 5303310511
23Hinge,oven door
29WCI 318147410
31WCI 5303310536
32WCI 318057210
39WCI 318039801
545303300265 Frigidaire Oven Screw
60240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
