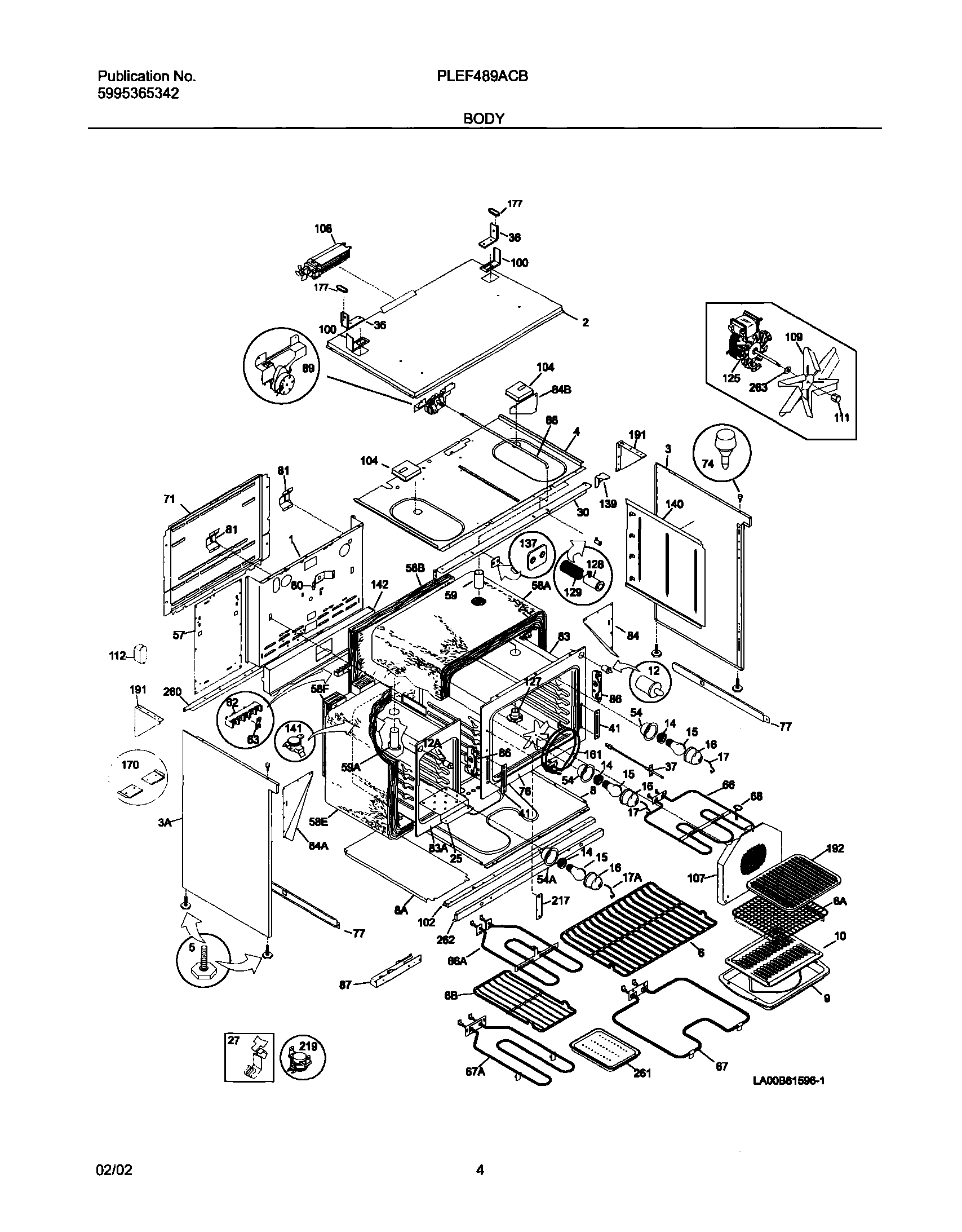

PLEF489ACB 05 – BODY

PLEF489ACB 05 – BODY

Written by

in

PLEF489ACB 05 – BODY

Products

PositionProduct
NI5303300265 Frigidaire Oven Screw
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5303297477 Frigidaire Oven Screw
NIWCI 5303311207
NI316205500 Frigidaire Oven Nut
NI5303307980 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318120711
1WCI 318066402
2WCI 318173610
3AWCI 318066008
3WCI 318066007
4WCI 318073706
5318175503 Frigidaire Screw with Bolt
6AShelf,broiler pan
6BWCI 318119700
6318345205 Frigidaire Oven Rack
8AWCI 318071900
8Panel,heat shield ,oven bottom
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
12AWCI 5301314211
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
17ARETAINER-LENS
25WCI 318179107
275303284616 Frigidaire Range Bulb Clip Thermostat
30WCI 318023915
36WCI 318182110
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54AWCI 5303271606
54WCI 5303310514
57WCI 318055701
58BWCI 318133769
58AWCI 318133744
58EWCI 318133720
58FWCI 318133721
59WCI 5303320844
59AWCI 318072521
625304409888 Frigidaire Oven Terminal Block with Hardware
63WCI 5303310517
66318255605 Frigidaire Oven Broil Element Range
66AWCI 318110100
67A318255201 Frigidaire Oven Small Bake Element
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
71WCI 5303310515
74WCI 318147420
76WCI 318056004
77316105501 Frigidaire P-1 Glide
80WCI 5303320846
81WCI 318192400
83AWCI 318089200
83WCI 318089610
84WCI 5303326184
84AWCI 5303326185
84BWCI 318055901
86WCI 5303310524
87WCI 318111800
88WCI 5303311160
89318095956 Frigidaire Oven Motor
100WCI 318182010
102WCI 318111901
104WCI 318182210
107WCI 5303318711
108WCI 318073002
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
112WCI 5303324861
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
137318090310 Frigidaire Oven Latch
139WCI 318042900
140WCI 318071300
141SWITCH, THERMAL CUTOUT
142WCI 318123901
161318255511 Frigidaire Oven Heating Element
170WCI 5304405241
177WCI 5303324040
191WCI 5303304030
217WCI 316042300
219WCI 318003600
260WCI 318055500
261WCI 08014183
262Channel,oven support ,front
263316008401 Frigidaire Washer P-1
