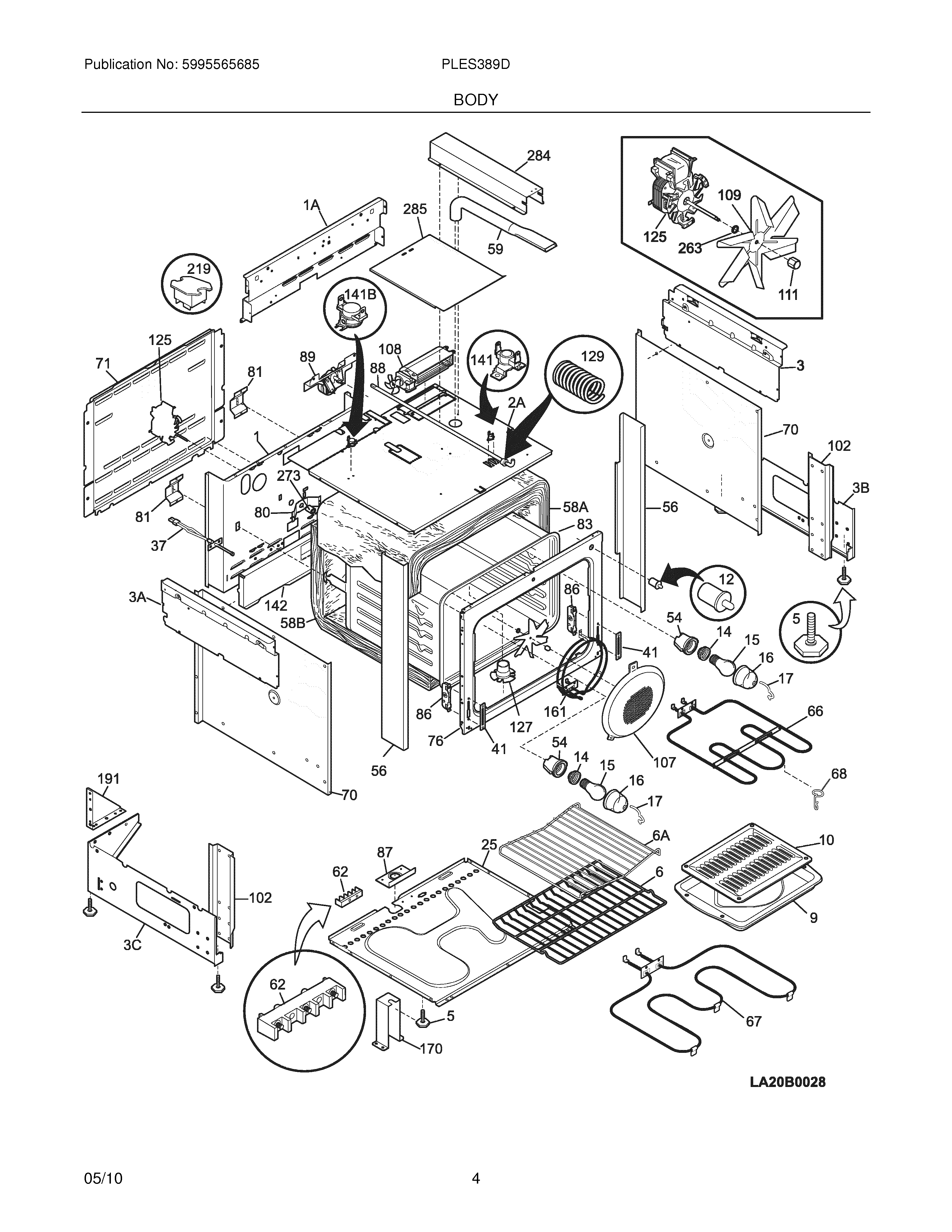

PLES389DCC 05 – BODY

PLES389DCC 05 – BODY

Written by

in

PLES389DCC 05 – BODY

Products

PositionProduct
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5304436864 Frigidaire WASHER
NI5303211311 Frigidaire Refrigerator Screw
NI318264200 Frigidaire Oven Plate
NI316205500 Frigidaire Oven Nut
NIWCI 318120711
NI5303307980 Frigidaire Oven Screw
NI5303323139 Frigidaire Oven Screw
NI318167300 Frigidaire Clip
NIWCI 318226300
NI318235301 Frigidaire Assembly Connector
1AWCI 318225101
1WCI 318066415
2AWCI 318227601
3BWCI 318160012
3AWCI 318225201
3CWCI 318160013
3WCI 318225200
5318175503 Frigidaire Screw with Bolt
6AWCI 318219500
6318345205 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12318089916 Frigidaire P-1 Light Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
25WCI 318179108
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 318222400
56WCI 318225902
58AWCI 318285017
58BWCI 318285018
59WCI 318072534
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 318194401
71WCI 318295800
76WCI 318225302
80WCI 5303320846
81WCI 318192400
83WCI 318089616
86WCI 5303310524
87WCI 318111803
88WCI 318250210
89318095957 Frigidaire Oven Motor
102WCI 5303311142
107WCI 318219401
108318073028 Frigidaire Oven Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
112WCI 318112701
125WCI 316136300
127318317100 Frigidaire Adapter Assembly
1295303311164 Frigidaire Oven Spring
141WCI 318005203
141WCI 318003615
142WCI 318123901
161WCI 318255501
170WCI 5304405244
191WCI 5303304030
263316008401 Frigidaire Washer P-1
272WCI 318249400
284WCI 318226600
285WCI 318236200
