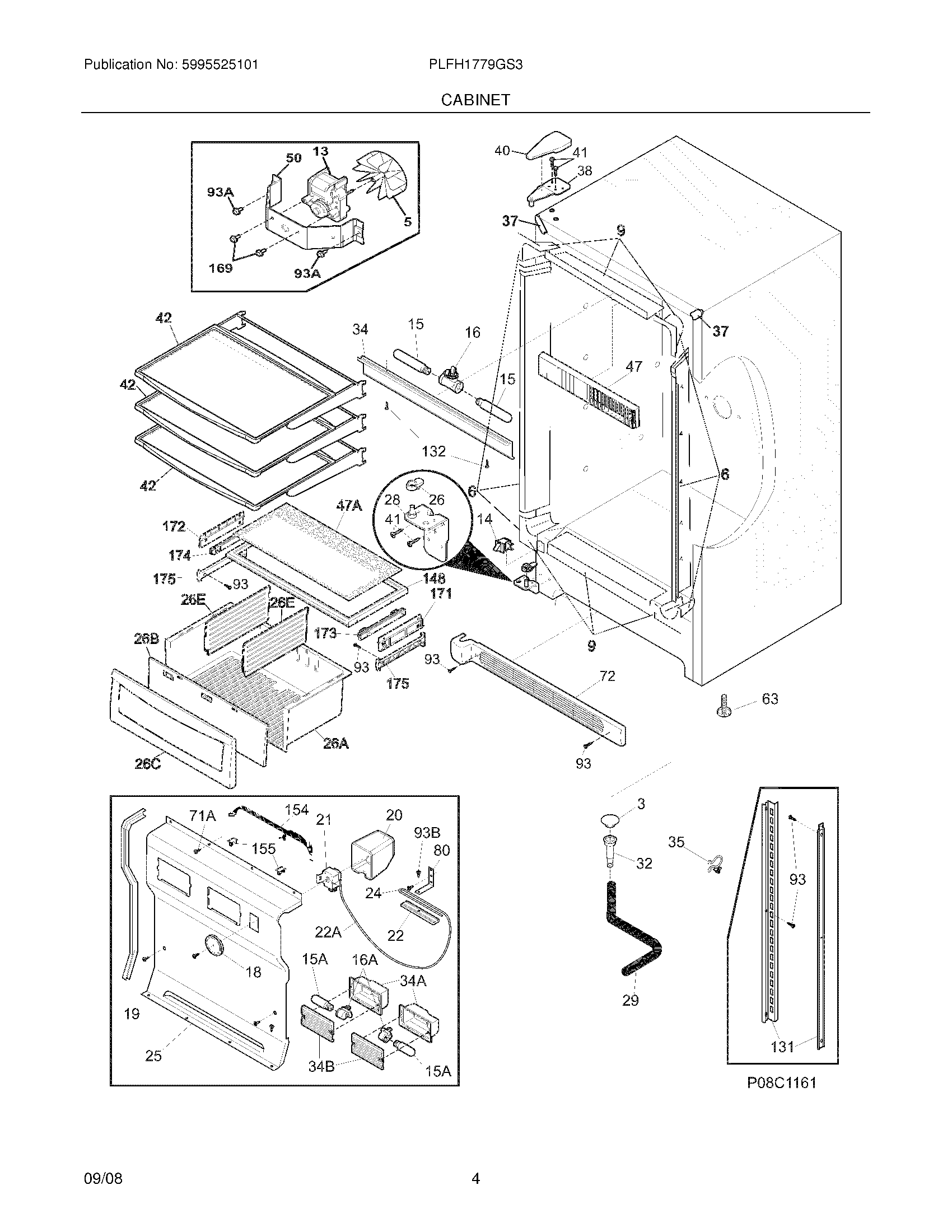

PLFH1779GS3 05 – CABINET

PLFH1779GS3 05 – CABINET

Written by

in

PLFH1779GS3 05 – CABINET

Products

Position	Product
NI	297001704 Frigidaire Refrigerator Insulation
NI	216901700 Frigidaire Instruction Sheet
NI	WCI 297107000
NI	297013100 Frigidaire Instruction
NI	WCI 216910408
NI	WCI 297109500
3	216503100 Frigidaire Refrigerator Screen-Drain
5	FAN BLADE, EVAPORATOR
6	WCI 297200600
9	297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15A	241552802 Frigidaire Refrigerator Light Bulb
15	5304517886 Frigidaire Refrigerator Light
16	241622802 Frigidaire Refrigerator Socket-Light
16A	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	5304513033 Frigidaire Refrigerator Temperature Control
22A	TUBE
22	CLAMP, CAP TUBE, COLD CONTROL
24	Screw,type A ,10-24 x 3/8
25	WCI 297099256
26E	WCI 297099400
26C	WCI 297091704
26A	A11791811 Frigidaire Crisper Drawer
26A	297142600 Frigidaire Refrigerator/Freezer Screw
26B	WCI 297091801
26	WCI 297248200
28	WCI 297240801
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34B	297053200 Frigidaire Refrigerator Lens
34	WCI 216979504
34A	SHIELD-LIGHT
35	216273000 Frigidaire Refrigerator Strap
37	5303918607 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	COVER-UPPER HINGE, BLACK
41	240578902 Frigidaire Screw Mounting Hinge
42	WCI 297108900
47	WCI 297053300
47A	WCI 297102703
50	WCI 08013207
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	WCI 297146800
72	297036907 Frigidaire Refrigerator Grille Kickplate
80	WCI 06594601
93	216858001 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
93A	216629601 Frigidaire Refrigerator Screw
131	WCI 297108300
132	WCI 5304460601
148	WCI 297092501
152	216974600 Frigidaire Refrigerator Bearing
154	297053000 Frigidaire Refrigerator Wire
155	WCI 5303313703
169	216912401 Frigidaire Refrigerator Screw
171	297092700 Frigidaire Refrigerator Bracket
172	297092701 Frigidaire Refrigerator Bracket
173	5304515502 Frigidaire Refrigerator Slide
174	5304515501 Frigidaire Refrigerator Slide
175	297099500 Frigidaire Refrigerator Support
