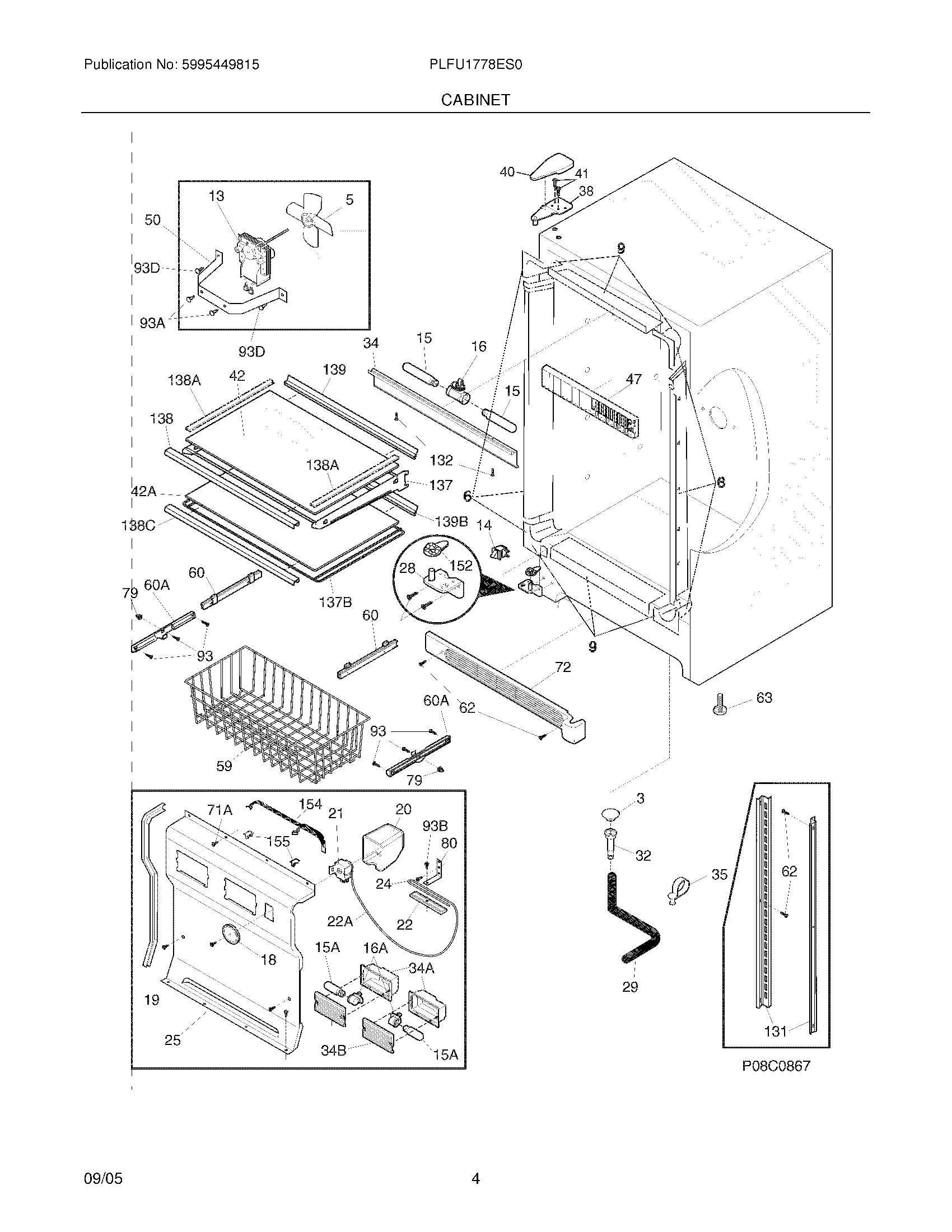

PLFU1778ES0 05 – CABINET

PLFU1778ES0 05 – CABINET

Written by

in

PLFU1778ES0 05 – CABINET

Products

Position	Product
NI	240494001 Frigidaire Refrigerator Plug Button
NI	297001704 Frigidaire Refrigerator Insulation
NI	WCI 216893800
NI	216901700 Frigidaire Instruction Sheet
NI	241586701 Frigidaire Refrigerator Plug
NI	297013100 Frigidaire Instruction
NI	WCI 297002600
NI	WCI 216893600
NI	WCI 216795408
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 216604200
9	WCI 216603300
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15A	241552802 Frigidaire Refrigerator Light Bulb
15	5304517886 Frigidaire Refrigerator Light
16A	297139501 Frigidaire Refrigerator Socket
16	241622802 Frigidaire Refrigerator Socket-Light
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	5304513033 Frigidaire Refrigerator Temperature Control
22	CLAMP, CAP TUBE, COLD CONTROL
22A	TUBE
24	SCREW, CLAMP, TRUSS HD CR, CONTROL
25	WCI 216949709
28	WCI 216978201
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34A	WCI 297053101
34	WCI 216979500
34B	297053200 Frigidaire Refrigerator Lens
34A	SHIELD-LIGHT
35	297315800 Frigidaire Refrigerator Clip
38	WCI 216939100
40	WCI 216809001
41	Screw-hinge,12-24x.700 HWH
42A	WCI 297007700
42	297265900 Frigidaire Refrigerator Glass Shelf
47	WCI 297053300
50	WCI 216394000
59	WCI 216939300
60A	Slide-basket,RH ,(2) ,w/4 clips
60A	Slide-basket,LH ,(2) ,w/4 clips
60	297013500 Frigidaire Refrigerator Slide
62	131420300 Frigidaire Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	134178901 Frigidaire Screw
72	297036907 Frigidaire Refrigerator Grille Kickplate
79	301036 Frigidaire Refrigerator Insert Nut
80	WCI 06594601
93A	216629601 Frigidaire Refrigerator Screw
93D	216912401 Frigidaire Refrigerator Screw
93	297048000 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
131	241513001 Frigidaire Refrigerator Shelf Mounting Channel
132	WCI 5303283898
137	297050600 Frigidaire Refrigerator Frame-Shelf
137	WCI 297007600
138	WCI 297007800
138	Trim-shelf,front
138	WCI 216983601
139	WCI 297007900
139	Trim-shelf,rear
152	216974600 Frigidaire Refrigerator Bearing
154	297053000 Frigidaire Refrigerator Wire
155	WCI 5303313703
