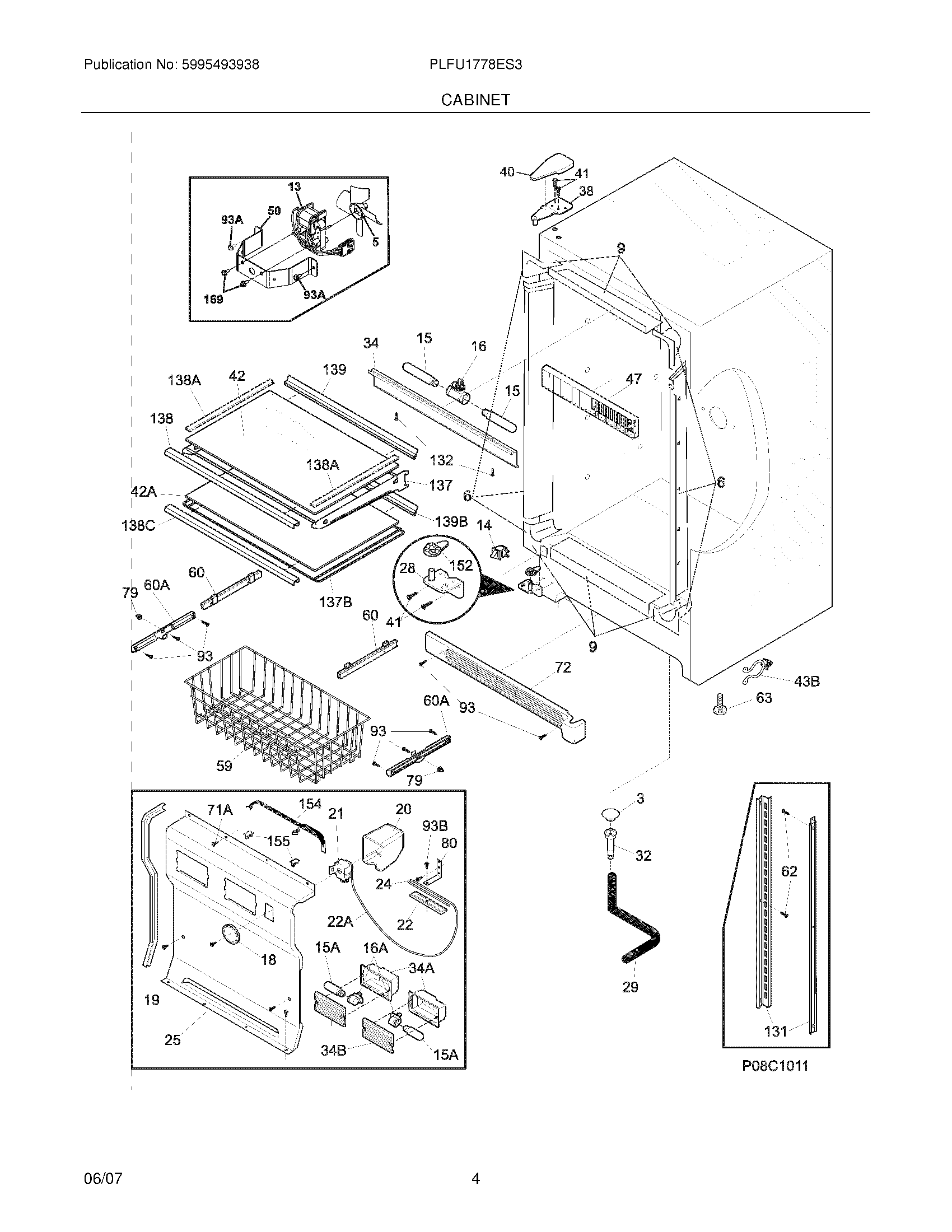

PLFU1778ES3 05 – CABINET

PLFU1778ES3 05 – CABINET

Written by

in

PLFU1778ES3 05 – CABINET

Products

Position	Product
NI	240494001 Frigidaire Refrigerator Plug Button
NI	297001704 Frigidaire Refrigerator Insulation
NI	216901700 Frigidaire Instruction Sheet
NI	WCI 216893800
NI	WCI 216795408
NI	IM116000 Frigidaire Refrigerator Ice Maker
NI	297013100 Frigidaire Instruction
NI	WCI 297002600
NI	WCI 297109500
NI	241586701 Frigidaire Refrigerator Plug
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 216604200
9	WCI 216603300
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
15A	241552802 Frigidaire Refrigerator Light Bulb
16	241622802 Frigidaire Refrigerator Socket-Light
16A	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	5304513033 Frigidaire Refrigerator Temperature Control
22A	TUBE
22	CLAMP, CAP TUBE, COLD CONTROL
24	SCREW, CLAMP, TRUSS HD CR, CONTROL
25	WCI 297099203
28	WCI 216978201
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 216979500
34B	297053200 Frigidaire Refrigerator Lens
34A	SHIELD-LIGHT
38	WCI 216939100
40	WCI 216809001
41	Screw-hinge,12-24x.700 HWH
42	297265900 Frigidaire Refrigerator Glass Shelf
42A	WCI 297007700
43B	297315800 Frigidaire Refrigerator Clip
47	WCI 297053300
50	WCI 216394000
59	WCI 297119000
60A	Slide-basket,RH ,(2) ,w/4 clips
60A	Slide-basket,LH ,(2) ,w/4 clips
60	297013500 Frigidaire Refrigerator Slide
62	131420300 Frigidaire Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	134178901 Frigidaire Screw
72	297036907 Frigidaire Refrigerator Grille Kickplate
79	301036 Frigidaire Refrigerator Insert Nut
80	WCI 06594601
93	216858001 Frigidaire Refrigerator Screw
93A	216629601 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
131	241513001 Frigidaire Refrigerator Shelf Mounting Channel
132	WCI 5303283898
137	297050600 Frigidaire Refrigerator Frame-Shelf
137	WCI 297007600
138	WCI 297007800
138	WCI 216983601
138	Trim-shelf,front
139	Trim-shelf,rear
139	WCI 297007900
152	216974600 Frigidaire Refrigerator Bearing
154	297053000 Frigidaire Refrigerator Wire
155	WCI 5303313703
169	216912401 Frigidaire Refrigerator Screw
