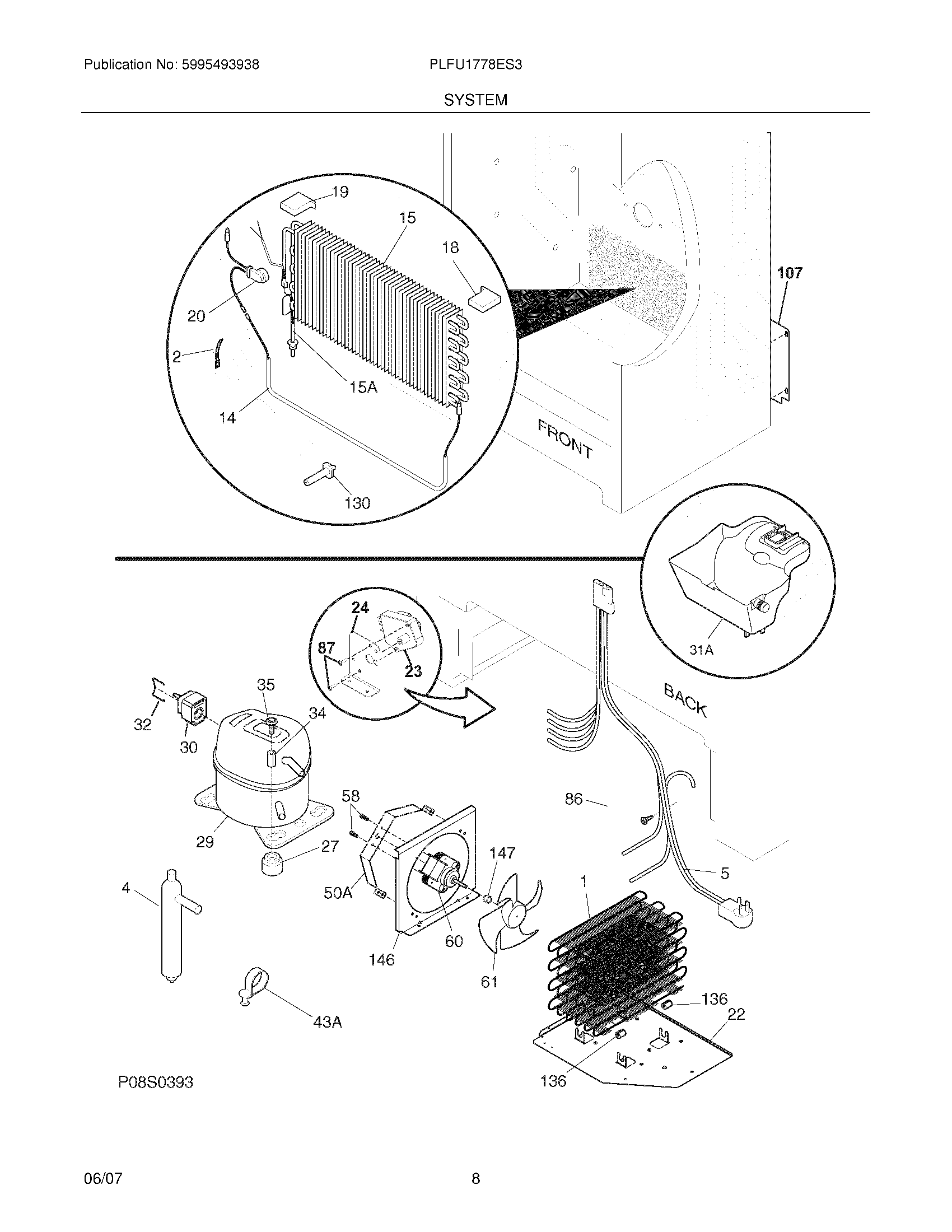

PLFU1778ES3 07 – SYSTEM

Products

Position	Product
NI	WCI 216502500
NI	297014702 Frigidaire Refrigerator Suction Line Plug
NI	SPACER, COMPRESSOR
NI	WCI 297102800
1	WCI 216970100
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 297033600
14	216730700 Frigidaire Refrigerator Defrost Heater
15	297414901 Frigidaire Refrigerator Evaporator
15A	216783200 Frigidaire Refrigerator P1-Heat Exchanger
18	WCI 297078700
19	WCI 297078800
20	297216600 Frigidaire Refrigerator Defrost Thermostat
22	WCI 216970300
23	5304518034 Frigidaire Refrigerator Defrost Timer
24	WCI 216968500
27	216498900 Frigidaire Refrigerator Grommet
29No.	5304511983 Frigidaire Refrigerator Compressor Assembly Kit
30	297051003 Frigidaire Start Relay
32	CLAMP, ELEC CONT MTG, COMPRESSOR
34	SLEEVE-COMPRESSOR
35	SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A	297315800 Frigidaire Refrigerator Clip
50A	WCI 240524001
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
60	CONDENSER FAN MOTOR KIT
61	240524102 Frigidaire Refrigerator Condenser Fan Blade
86	216036601 Frigidaire Refrigerator Screw
87	216858001 Frigidaire Refrigerator Screw
107	WCI 297124500
130	297244700 Frigidaire Refrigerator Support
136	240405201 Frigidaire Refrigerator Grommet
146	WCI 216970200
