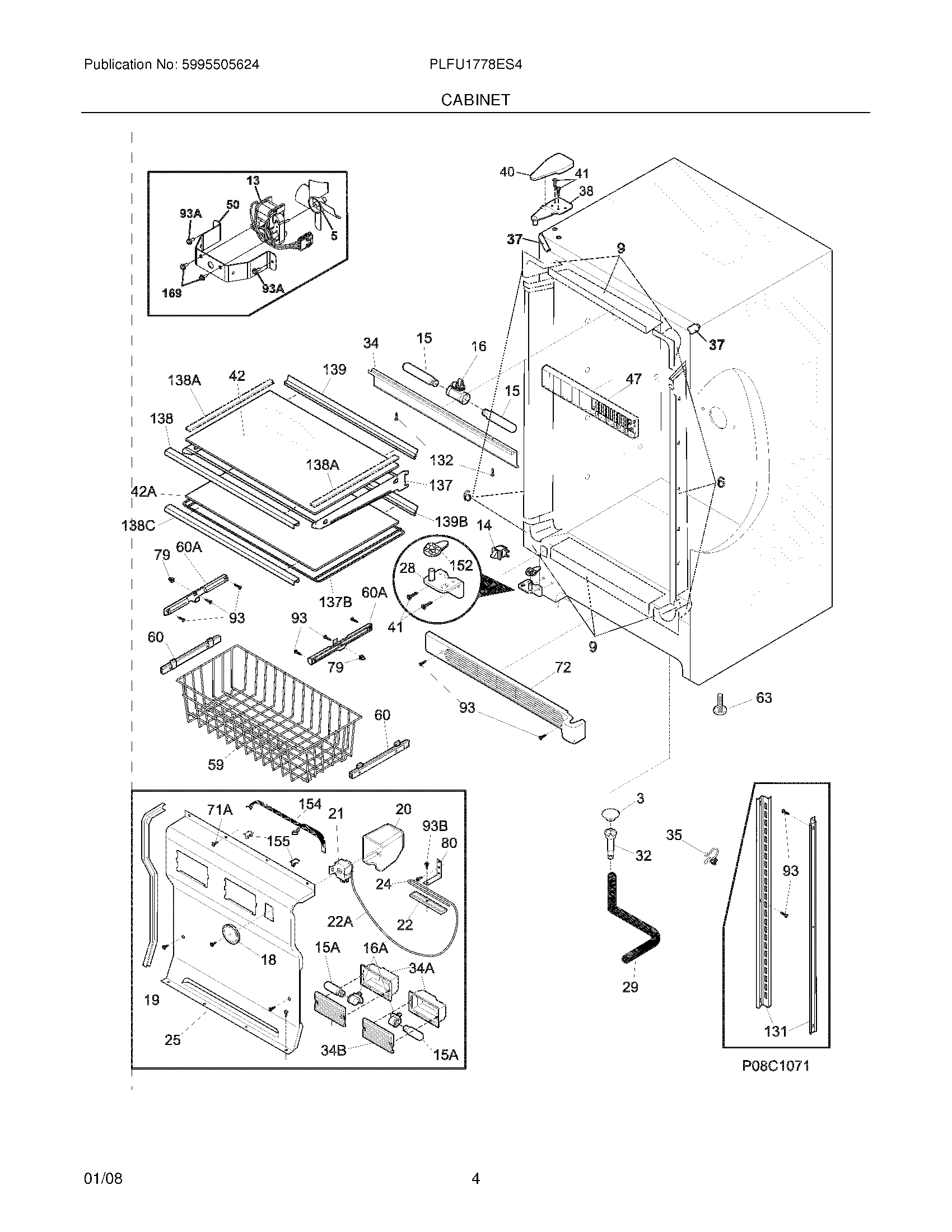

PLFU1778ES4 05 – CABINET

PLFU1778ES4 05 – CABINET

Written by

in

PLFU1778ES4 05 – CABINET

Products

Position	Product
NI	240494001 Frigidaire Refrigerator Plug Button
NI	241586701 Frigidaire Refrigerator Plug
NI	297013100 Frigidaire Instruction
NI	297001704 Frigidaire Refrigerator Insulation
NI	216901700 Frigidaire Instruction Sheet
NI	IM116000 Frigidaire Refrigerator Ice Maker
NI	WCI 216795408
NI	WCI 216893800
NI	WCI 297109500
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 297200600
9	297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
15A	241552802 Frigidaire Refrigerator Light Bulb
16A	297139501 Frigidaire Refrigerator Socket
16	241622802 Frigidaire Refrigerator Socket-Light
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	5304513033 Frigidaire Refrigerator Temperature Control
22	CLAMP, CAP TUBE, COLD CONTROL
22A	TUBE
24	Screw,type A ,10-24 x 3/8
25	WCI 297099203
28	WCI 297179301
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34A	SHIELD-LIGHT
34B	297053200 Frigidaire Refrigerator Lens
34	WCI 216979500
35	216273000 Frigidaire Refrigerator Strap
37	5303918607 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	COVER-UPPER HINGE, BLACK
41	240578902 Frigidaire Screw Mounting Hinge
42	297265900 Frigidaire Refrigerator Glass Shelf
42A	WCI 297007700
47	WCI 297053300
50	216394050 Frigidaire Refrigerator Bracket
59	WCI 297119000
60	Slide-basket,RH ,(2) ,w/4 clips
60	Slide-basket,LH ,(2) ,w/4 clips
60A	297013500 Frigidaire Refrigerator Slide
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	WCI 297146800
72	297036907 Frigidaire Refrigerator Grille Kickplate
79	301036 Frigidaire Refrigerator Insert Nut
80	WCI 06594601
93A	216629601 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
131	241513001 Frigidaire Refrigerator Shelf Mounting Channel
132	WCI 5304460601
137	297050600 Frigidaire Refrigerator Frame-Shelf
137B	WCI 297007600
138	Trim-shelf,front
138C	WCI 297007800
138A	WCI 216983601
139	WCI 297007900
139	Trim-shelf,rear
152	216974600 Frigidaire Refrigerator Bearing
154	297053000 Frigidaire Refrigerator Wire
155	WCI 5303313703
169	216912401 Frigidaire Refrigerator Screw
