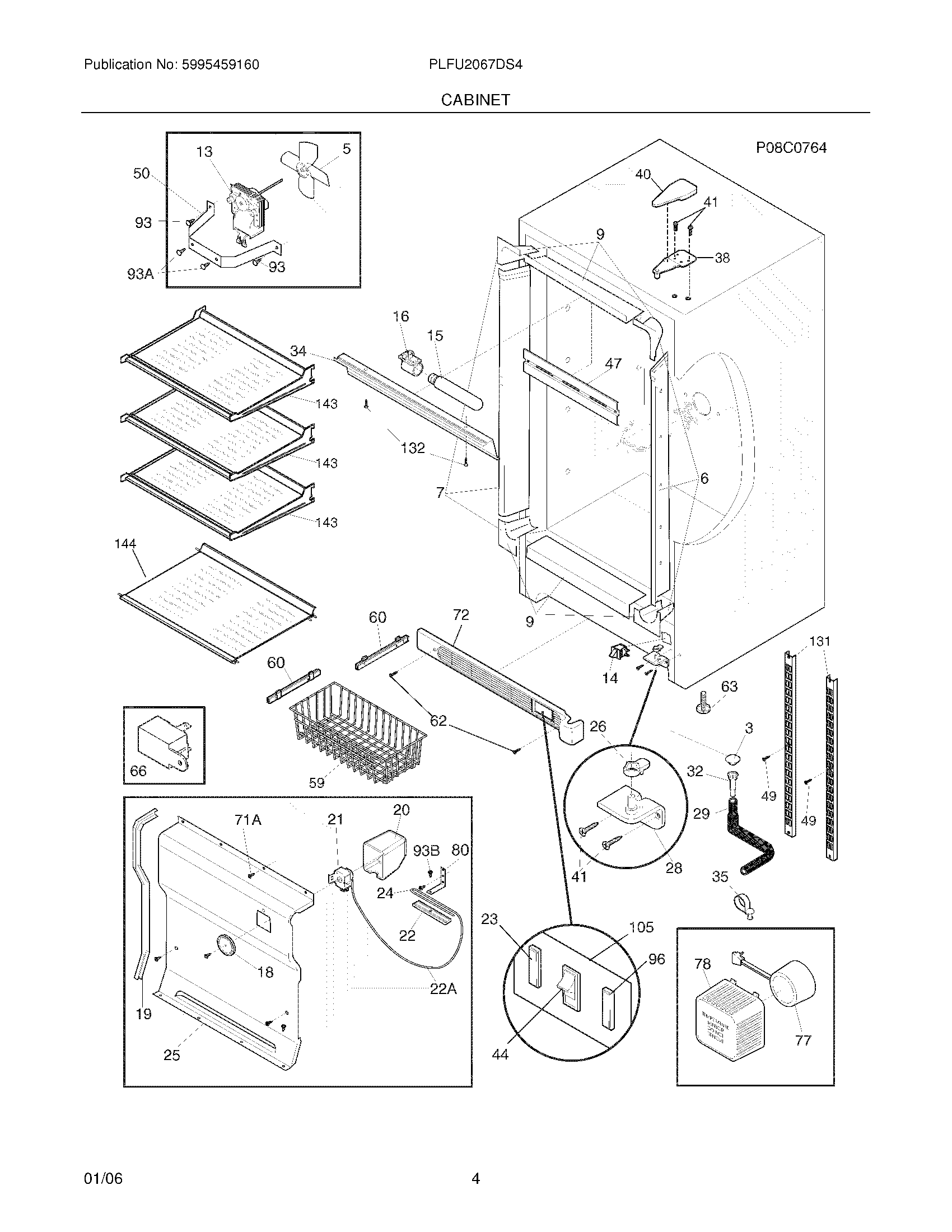

PLFU2067DS4 05 – CABINET

PLFU2067DS4 05 – CABINET

Written by

in

PLFU2067DS4 05 – CABINET

Products

Position	Product
NI	216912401 Frigidaire Refrigerator Screw
NI	297001704 Frigidaire Refrigerator Insulation
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	WCI 216893600
NI	WCI 216795509
NI	216901700 Frigidaire Instruction Sheet
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 216604100
7	WCI 216603600
9	WCI 216603300
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	WCI 216204901
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	5304513033 Frigidaire Refrigerator Temperature Control
22	CLAMP, CAP TUBE, COLD CONTROL
22A	TUBE
23	WCI 5308002706
24	SCREW, CLAMP, TRUSS HD CR, CONTROL
25	WCI 216820300
26	216974600 Frigidaire Refrigerator Bearing
28	WCI 216978200
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 216816221
35	297315800 Frigidaire Refrigerator Clip
38	WCI 216939100
40	WCI 216809001
41	Screw-hinge,12-24x.700 HWH
44	WCI 216823300
47	297192903 Frigidaire Refrigerator Baffle
49	WCI 5303212704
50	WCI 216394000
59	WCI 216932600
60	WCI 216936700
60	WCI 216936701
62	131420300 Frigidaire Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
66	WCI 216713700
71A	134178901 Frigidaire Screw
72	WCI 216946801
77	WCI 5308037992
78	WCI 297013300
80	WCI 06594601
93B	216036601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
93A	216629601 Frigidaire Refrigerator Screw
96	WCI 08016772
105	WCI 216926604
105	WCI 216926701
131	WCI 216484900
132	WCI 5303283898
143	Shelf,cantilever ,(3) ,complete assy
144	Shelf-assy,fixed,glass ,(3) ,complete
