PLGC30S8CCA 03 – MAINTOP

PLGC30S8CCA 03 – MAINTOP

Written by

in

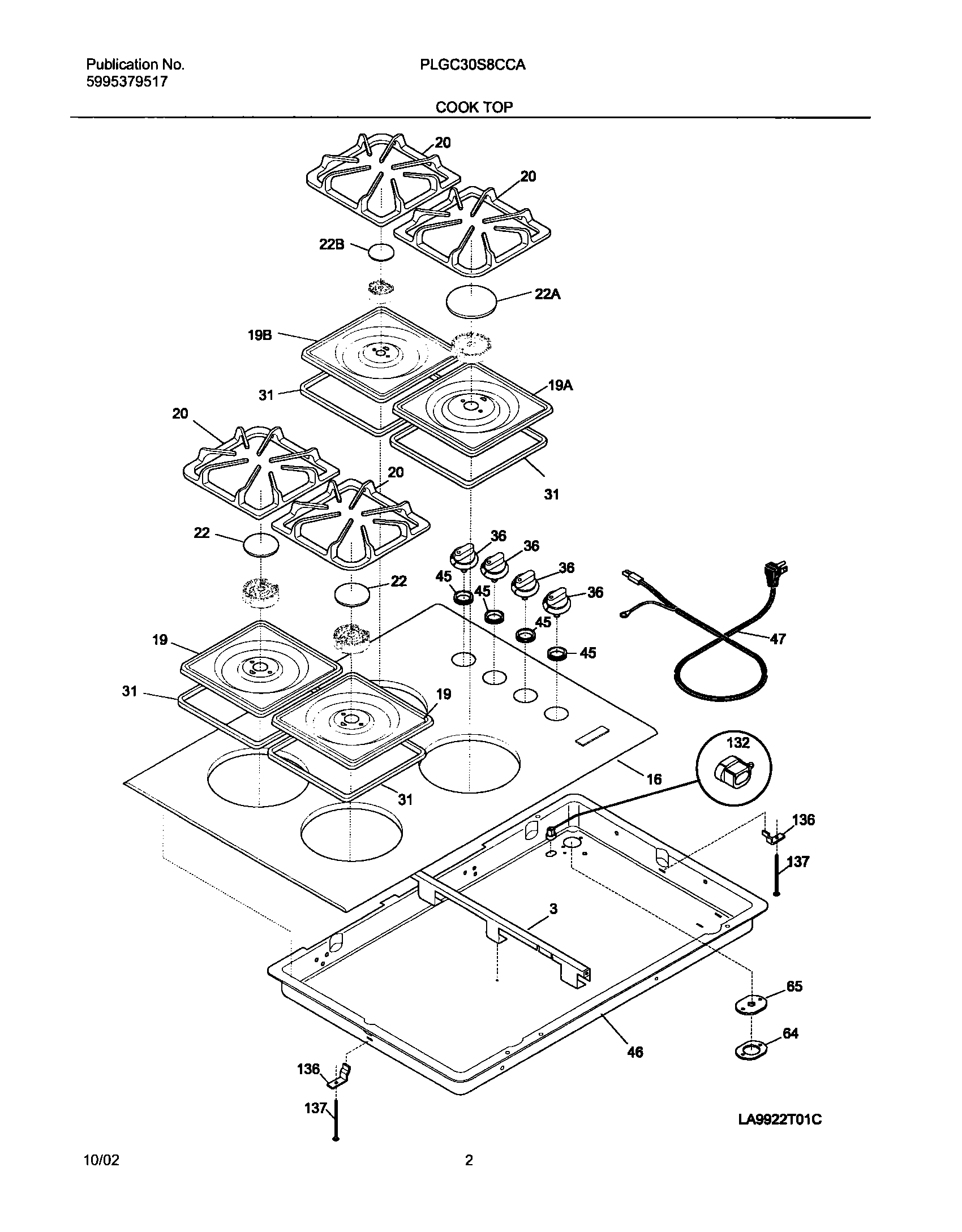

PLGC30S8CCA 03 – MAINTOP

Products

PositionProduct
NI5304403558 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NI316524400 Frigidaire Oven Screw
NI5303323140 Frigidaire Oven Screw
3Support
16WCI 318191510
19A318168124 Frigidaire Large Burner Pan
19318168114 Frigidaire Oven Pan
19B318168104 Frigidaire Pan, Small Black
20Grate,burner ,black
22BWCI 318076400
22AWCI 318076420
22316213500 Frigidaire Range Medium 9.5K Black Surface Burner Cap
31318053901 Frigidaire Drip Pan Seal Gasket
36Knob,top valve ,black ,(4)
45BUSHING
46WCI 318077215
47WCI 5303303991
64Bracket,retainer
655304506478 Frigidaire Seal
1325304513507 Frigidaire Bushing Assembly
136SUPPORT
137WCI 5303323138
