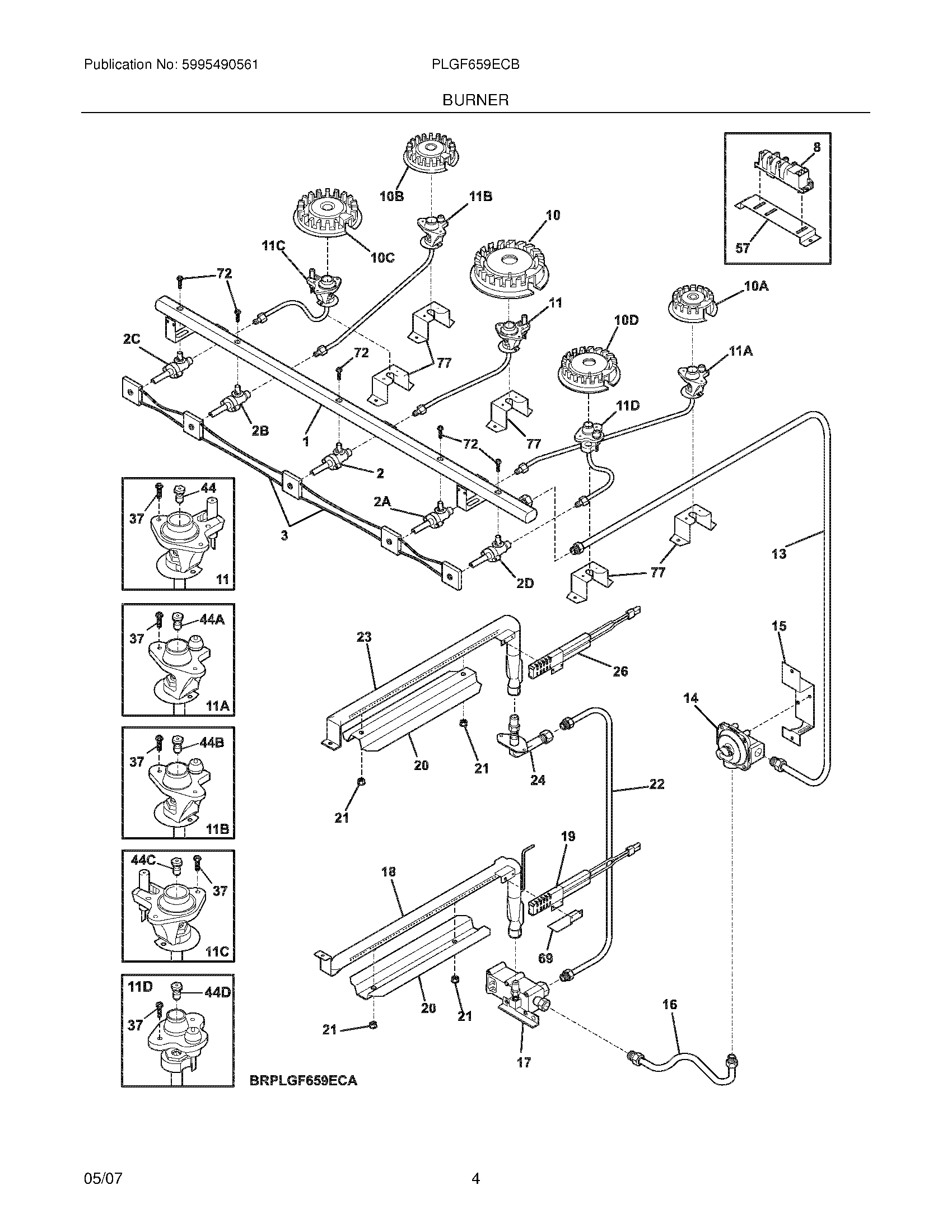

PLGF659ECB 05 – BURNER

Products

Position	Product
NI	WCI 5303324193
NI	WCI 318199745
NI	SCREW, 10 X 3/8
NI	5300803416 Frigidaire Dishwasher Screw
NI	WCI 318186912
1	WCI 318315700
2D	WCI 318234023
2C	WCI 318234022
2B	WCI 318234024
2A	WCI 318234025
2	WCI 318234021
3	318232613 Frigidaire Wiring Harness
8	SPARK MODULE
10	Burner,sealed ,17K
10B	316212400 Frigidaire Oven Primary Burner
10D	WCI 316212300
10A	WCI 316206400
10C	WCI 316223400
11	WCI 318221357
11A	WCI 318221351
11B	WCI 318221352
11C	WCI 318221354
11D	WCI 318221355
13	WCI 318054511
14	5304521339 Frigidaire Regulator
15	318262810 Frigidaire Oven Bracket
16	WCI 318054512
17	VALVE-SAFETY
18	WCI 5303311544
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	Baffle,oven burner
21	5303013272 Frigidaire Oven Nut
22	WCI 318249301
23	BURNER-BROILER
24	MIXER ELBOW
26	318177730 Frigidaire Igniter Assembly
37	316240600 Frigidaire Igniter Mounting Screw
44D	316237901 Frigidaire Oven Orifice
44C	316237900 Frigidaire Oven Orifice Assembly
44B	316237902 Frigidaire Orifice Top Burner
44A	WCI 316237903
57	WCI 318340500
69	WCI 3131871
72	316215600 Frigidaire Oven Screw
77	WCI 318192606
