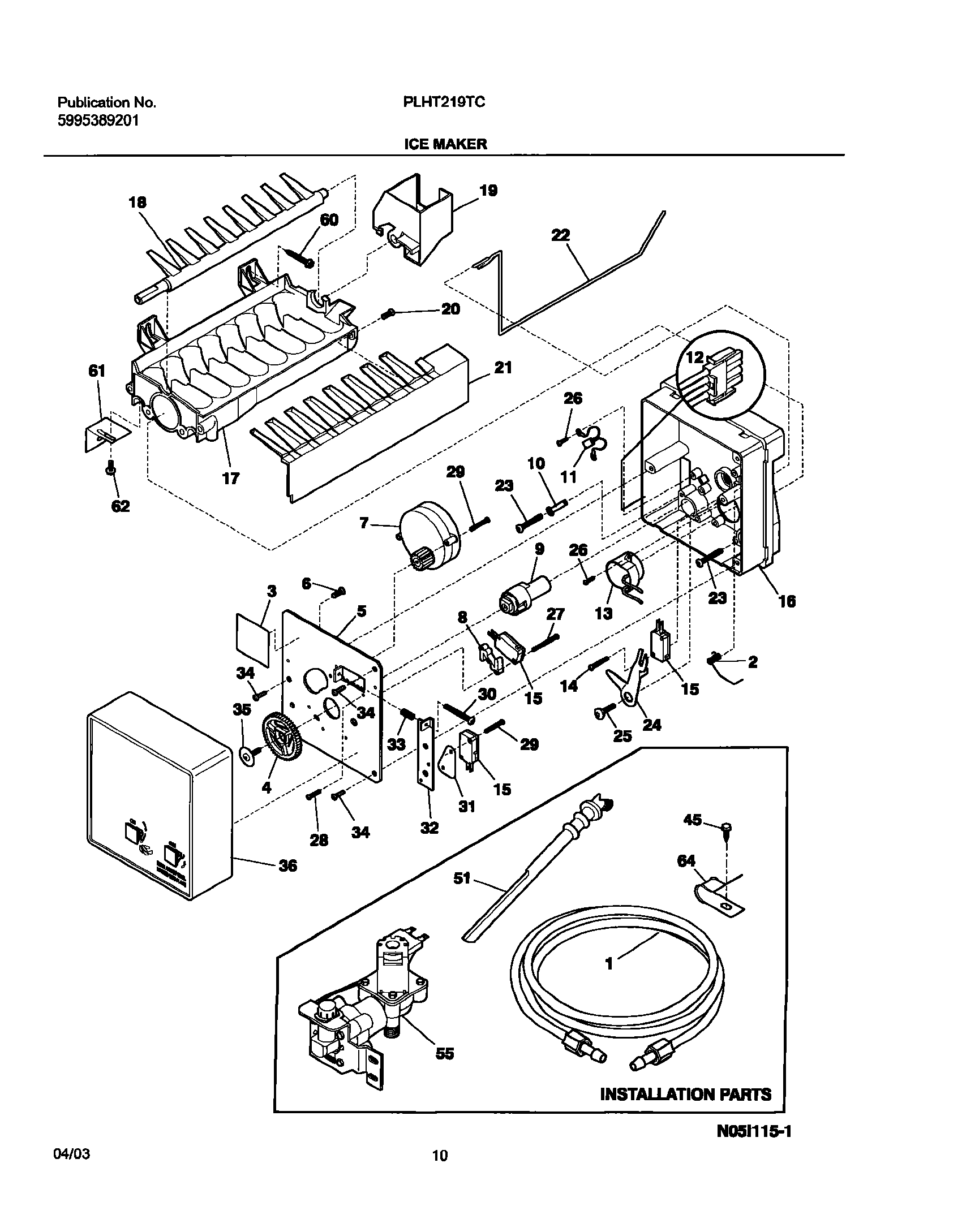

PLHT219TCK1 11 – ICE MAKER

Products

Position	Product
NI	218843801 Frigidaire Refrigerator Screw
NI	5304458371 Frigidaire Refrigerator Ice Maker
NI	Adapter-water supply,nut & sleeve ,
1	218976901 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 5304420650
3	Label,ID plate
4	5304469403 Frigidaire Gear
5	WCI 3206303
6	218359202 Frigidaire Refrigerator Screw
7	5303918277 Frigidaire Refrigerator Ice Maker Assembly
8	SPACER-HOLD SWITCH
9	WCI 3206313
10	WCI 3206315
11	3206319 Frigidaire Refrigerator Thermal Cut-Off Assembly P1
12	WCI 5304420651
13	Thermostat Assy,ice maker
14	WCI 5304420652
15	5304456667 Frigidaire Refrigerator Micro Switch
16	WCI 5304420653
17	241798231 Frigidaire Refrigerator Ice Maker Assembly
18	EJECTOR-ICE
19	WCI 3206330
20	WCI 5304408581
21	ICE STRIPPER
22	SHUT-OFF ARM
23	SCREW,8-32 X 0.875 ,MOLD-TO-SUPPORT ,
24	5304456675 Frigidaire Refrigerator Lever Arm
25	SCREW,8-18 X 0.562 ,LEVER ARM/SPRT
26	WCI 5304420654
27	SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,
28	Screw-timing stop`4-40 x 0.375
29	SCREW,4-24 X 0.750 ,(6)
30	SCREW-TIMING ADJ,8-32 X 1.000
31	WCI 3206342
32	WCI 3206343
33	WCI 5304408583
34	WCI 5304420655
35	WCI 5304408585
36	COVER-ICE MAKER
45	5304455650 Frigidaire Refrigerator Screw
51	241796405 Frigidaire Refrigerator Fill Water Tube
55	ICE MAKER WATER VALVE
60	218362501 Frigidaire Refrigerator Screw
61	218721500 Frigidaire Refrigerator Bracket-Leveling
62	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
64	5304455846 Frigidaire Refrigerator Clamp
