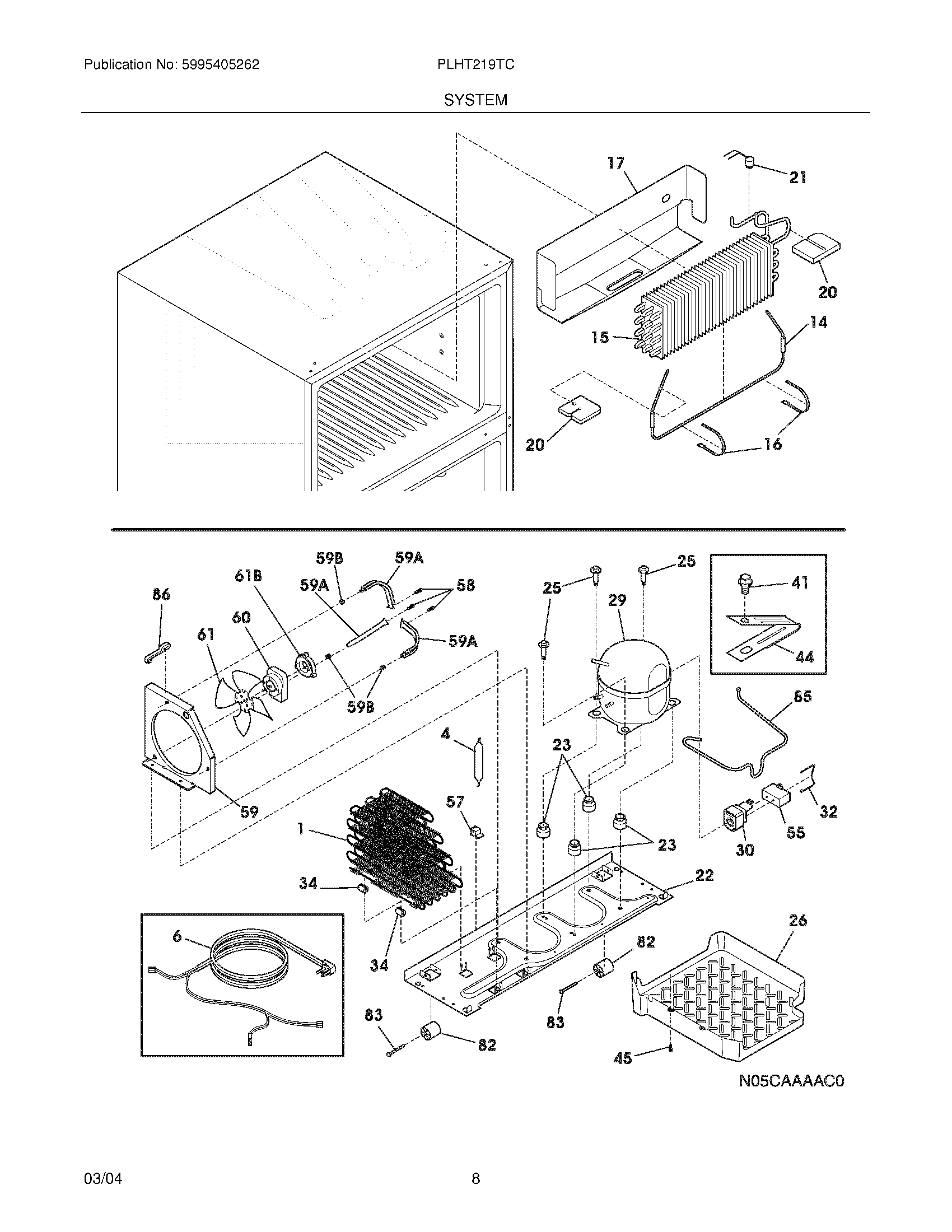

PLHT219TCK4 09 – SYSTEM

PLHT219TCK4 09 – SYSTEM

Written by

in

PLHT219TCK4 09 – SYSTEM

Products

Position	Product
NI	218252201 Frigidaire Refrigerator Screw
NI	Wiring Harness,freezer section ,with light
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	240388701 Frigidaire Refrigerator Wiring Harness
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	WCI 240569501
NI	WCI 5304421289
NI	5303918330 Frigidaire Refrigerator Heat Exchanger Kit OS1
1	5304472169 Frigidaire Refrigerator Condenser Kit
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	WCI 240496101
14	5303918247 Frigidaire Refrigerator P1-Defrost Heater Kit
15	5303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
20	WCI 240518402
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	WCI 240330001
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	Screw-compressor mtg,hex washer head ,
26	241697603 Frigidaire Defrost Pan
29	5304511983 Frigidaire Refrigerator Compressor Assembly Kit
30	216954235 Frigidaire Refrigerator Compressor Freezer Controller
32	241544101 Frigidaire Refrigerator Clamp
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240569202 Frigidaire Refrigerator Screw
59B	WCI 240346601
59A	240346501 Frigidaire Refrigerator Support Bracket
59	WCI 240315501
60	5304448483 Frigidaire Refrigerator Condenser Fan Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
61B	WCI 240564001
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
85	241856901 Frigidaire Refrigerator Tube-Connector
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
