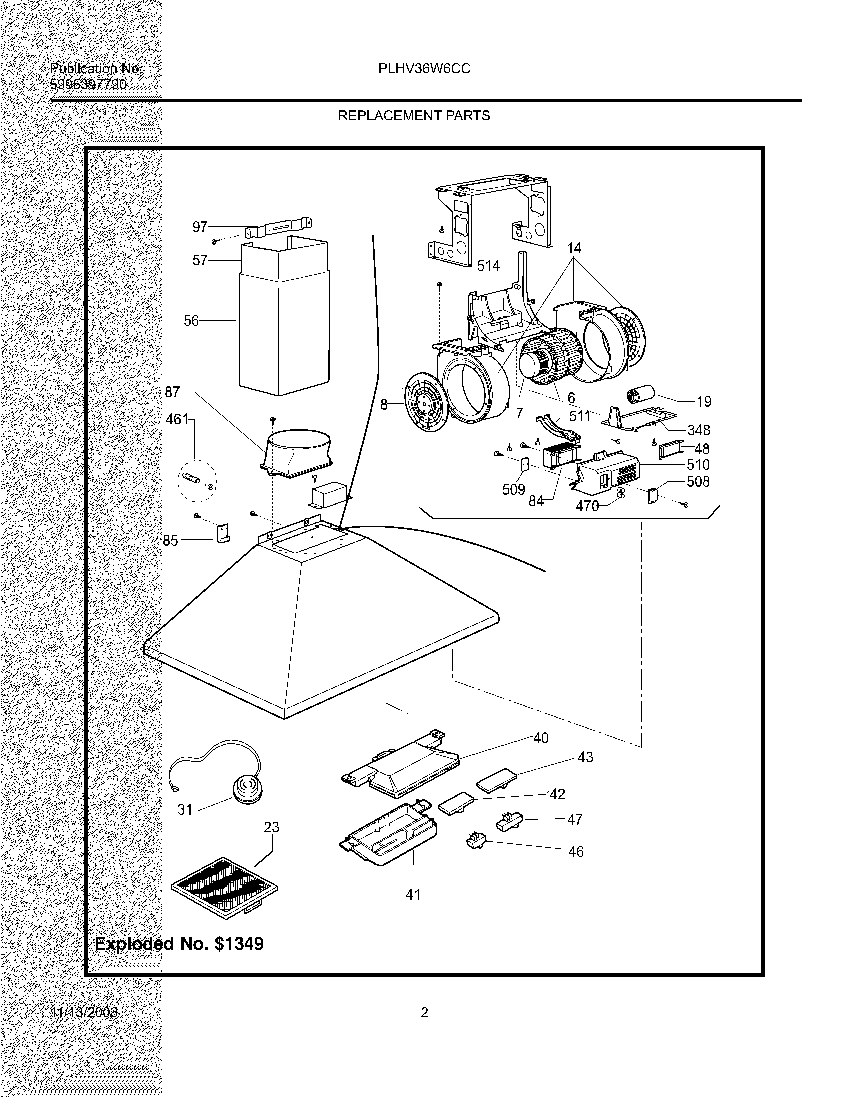

PLHV36W6CC 03 – REPLACEMENT PARTS

PLHV36W6CC 03 – REPLACEMENT PARTS

Written by

in

PLHV36W6CC 03 – REPLACEMENT PARTS

Products

PositionProduct
6WCI 5304425236
7WCI 5304425237
8WCI 5304425238
14WCI 5304425239
19WCI 5304425240
23Filter,range hood ,framed grid
31WCI 5304425242
40WCI 5304435617
41Panel,control
42Actuator,light key
43WCI 5304425246
46Switch,light
47Switch,fan motor
48Circuit Board,printed ,control
56Chimney,exhaust duct ,lower extension ,fixed
57Chimney,exhaust duct ,upper extension ,sliding
84Ballast,lamp
85Bracket,hood support ,rear ,U-hook
87Duct,air exhaust ,connector
97Bracket,chimney support ,rear
348Cover,capacitor
461Plug,with screw
470WCI 5304425258
508WCI 5304425259
509Plate,fuse mounting
510WCI 5304425261
511WCI 5304425262
514WCI 5304425263
