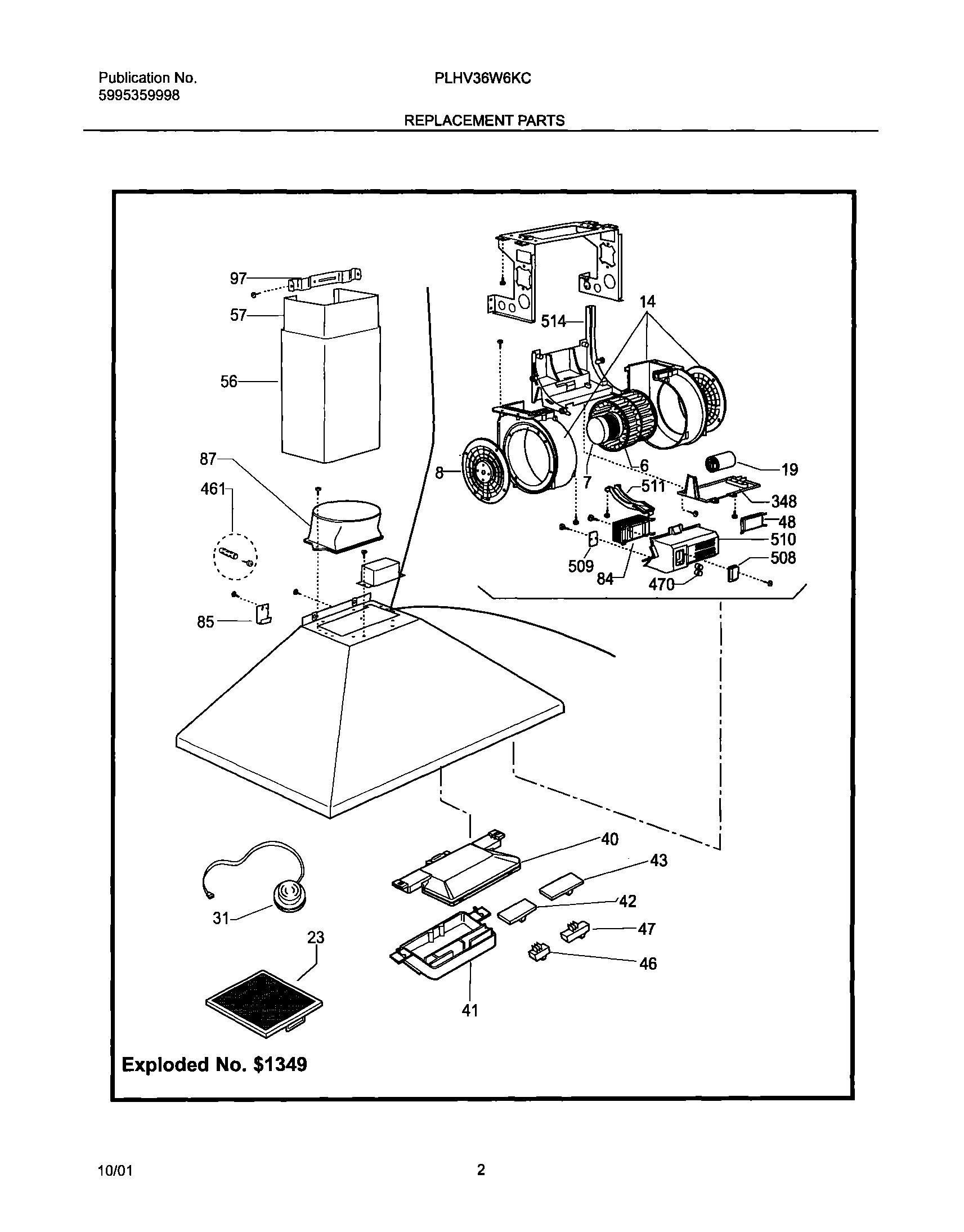

PLHV36W6KC 03 – REPLACEMENT PARTSadmin2025-04-26T10:25:03+00:00PLHV36W6KC 03 – REPLACEMENT PARTS
Products
| Position | Product |
|---|
| NI | WCI 218395401 |
| 6 | WCI 5304425236 |
| 7 | WCI 5304425237 |
| 8 | WCI 5304425238 |
| 14 | WCI 5304425239 |
| 19 | WCI 5304425240 |
| 23 | Filter,range hood ,framed grid |
| 31 | WCI 5304425242 |
| 40 | WCI 5304425243 |
| 41 | Panel,control |
| 42 | Actuator,light key |
| 43 | WCI 5304425246 |
| 46 | Switch,light |
| 47 | Switch,fan motor |
| 48 | Circuit Board,printed ,control |
| 56 | Chimney,exhaust duct ,lower extension ,fixed |
| 57 | Chimney,exhaust duct ,upper extension ,sliding |
| 84 | Ballast,lamp |
| 85 | Bracket,hood support ,rear ,U-hook |
| 87 | Duct,air exhaust ,connector |
| 97 | Bracket,chimney support ,rear |
| 348 | Cover,capacitor |
| 461 | Plug,with screw |
| 470 | WCI 5304425258 |
| 508 | WCI 5304425259 |
| 509 | Plate,fuse mounting |
| 510 | WCI 5304425261 |
| 511 | WCI 5304425262 |
| 514 | WCI 5304425263 |
