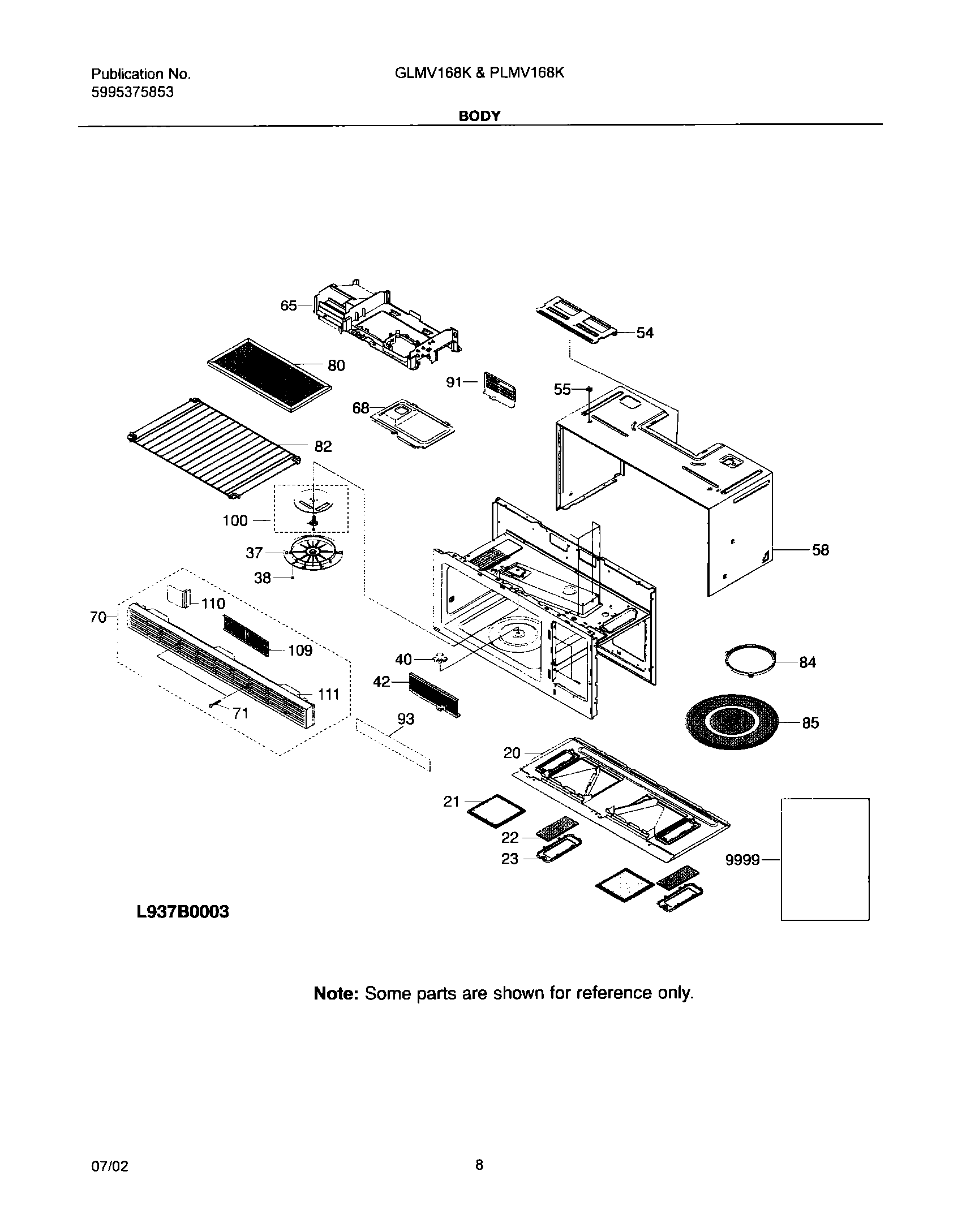

PLMV168KC4 09 – BODY

PLMV168KC4 09 – BODY

Written by

in

PLMV168KC4 09 – BODY

Products

PositionProduct
NIWCI 316137215
20WCI 5304429460
21WCI 5304408977
22WCI 5304408988
23WCI 5304429462
37WCI 5304408986
38Rivet,push mount ,plastic ,stirrer cover
40WCI 5304429464
42WCI 5304408990
54Bracket,motor mtg ,turntable/vent ,wrpr top plate
55WCI 5304423504
58WCI 5304429465
65WCI 5304429468
68Bracket,duct assy ,upper
70WCI 5304429469
71WCI 5304408994
80WCI 5304409641
82WCI 5304423519
84WCI 5304417414
85WCI 5304423399
91WCI 5304429472
93WCI 5304423524
100WCI 5304429473
109WCI 5304429474
110WCI 5304429475
111WCI 5304429476
