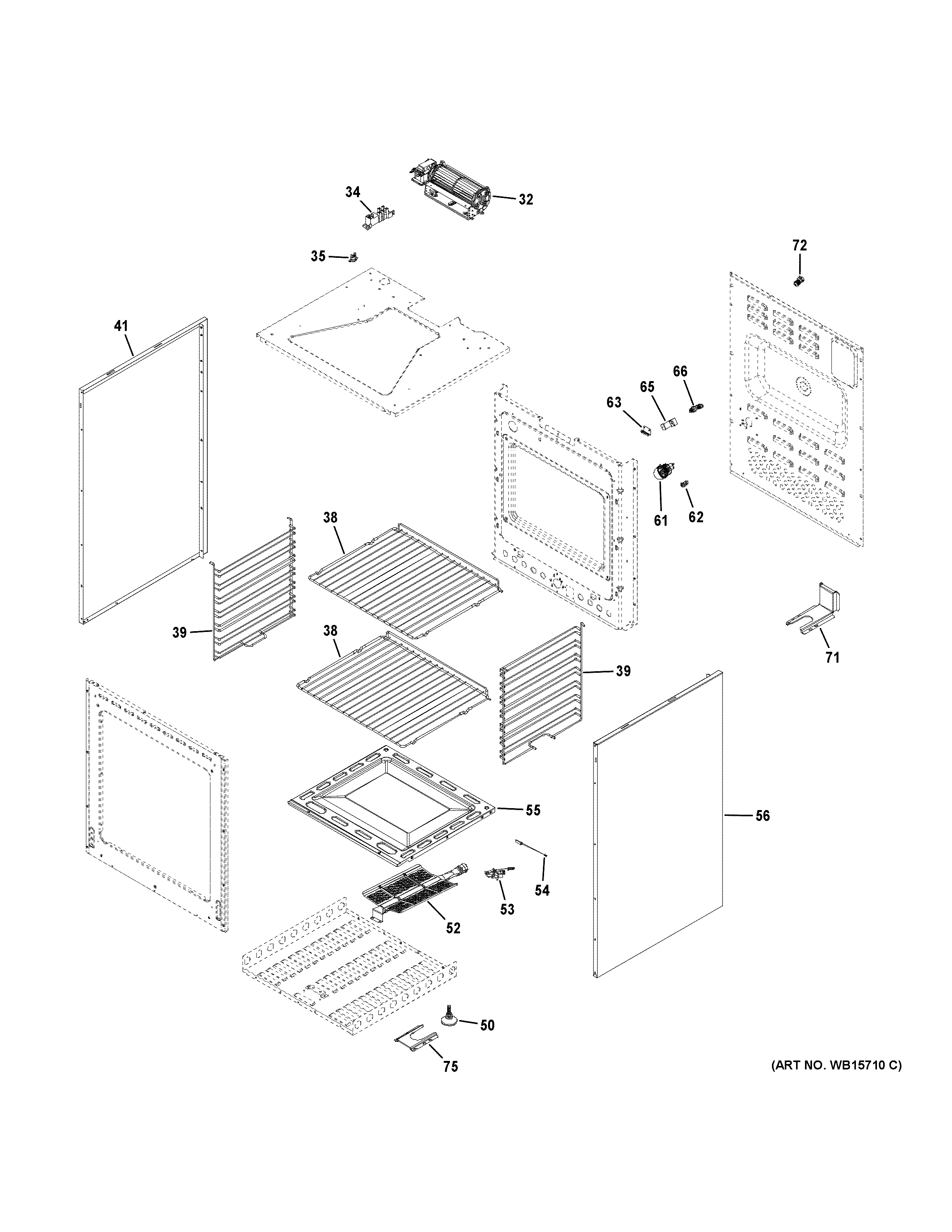

PLS624DT1BB BODY PARTS

Products

Position	Product
32	COOLING FAN
34	PULSE IGNITOR
35	THERMOSTAT(MOTOR)
38	OVEN RACK
39	OVEN SIDE RACK
41	LEFT COVER
50	LEG
52	BAKE BURNER
53	PILOT ASM
54	IGNITION WIRE ASM
55	BAKE BOTTOM PLATE
56	RIGHT COVER
61	OVEN LAMP HOLDER ASM
62	OVEN LAMP 12V
63	THERMOSTAT SUPPORT CLIP
65	NOZZEL HOLDER
66	BAKE BURNER NOZZLE
71	ANTI-TIP BRACKET
72	JUNCTION BOX
75	WB21X43679 GE Front Leg Lock
