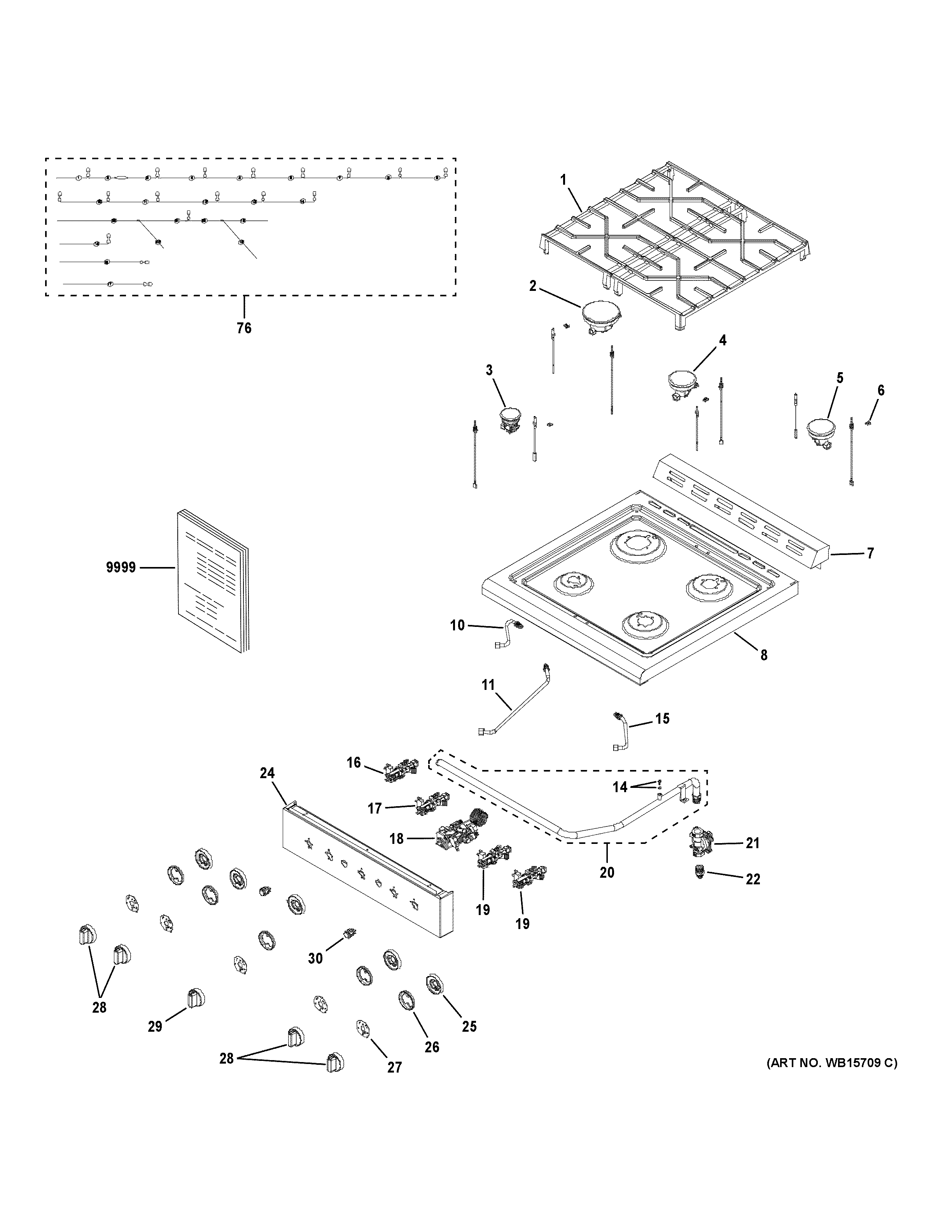

PLS624DT1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1GRATE
2LEFT REAR BURNER ASM
3LEFT FRONT BURNER ASM
4RIGHT FRONT BURNER ASM
5RIGHT REAR BURNER ASM
6IGNITION PIN FIXING CLIP
7FLUE DECORATIVE PANEL ASM
8WB21X44526 GE Cooktop
10LEFT BURNER SUPPLY TUBE
11REAR BURNER SUPPLY TUBE
14WB21X43613 GE Gasket Seal and Screw Assembly
15RIGHT PRONT GAS IN PIPE
16LEFT FRONT BURNER SAFETY VALVE
17LEFT REAR BURNER SAFETY VALVE
18OVEN VALVE
19RIGHT BURNER SAFETY VALVE
20MAIN GAS PIPE ASM
21REGULATOR
22REGULATOR ADAPTER
24CONTROL PANEL
25KNOB BEZEL
26LIGHT GUIDES
27BACKLIGHT LED 12V
28COOKTOP KNOB
29OVEN KNOB
30LIGHT SWITCH
76HARNESSES (24In.)
9999PM OWNERS AND INSTALL
