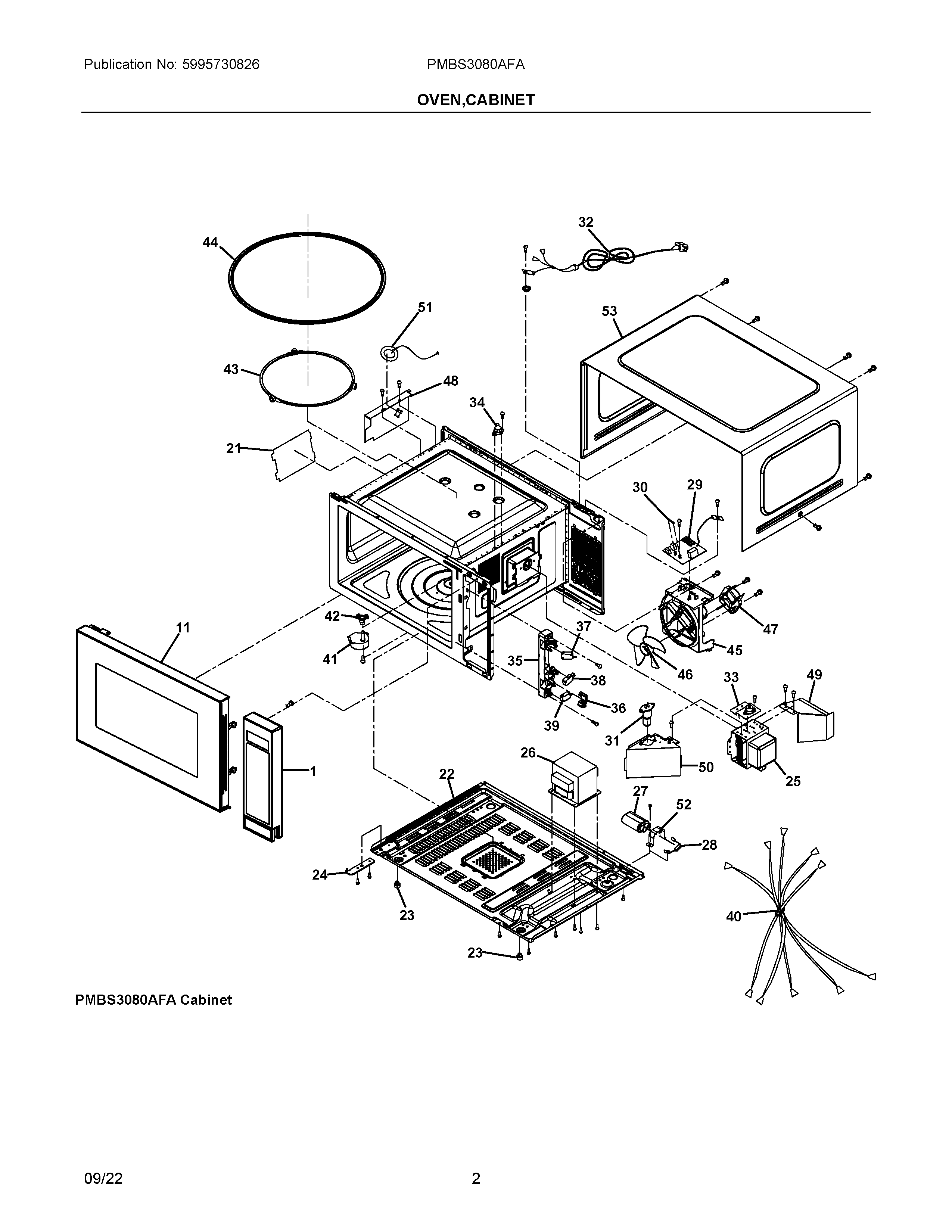

PMBS3080AFA 02 – OVEN,CABINET

PMBS3080AFA 02 – OVEN,CABINET

Written by

in

PMBS3080AFA 02 – OVEN,CABINET

Products

PositionProduct
15304532666 Frigidaire Control Panel
11DOOR ASSEMBLY, COMPLETE
215304505675 Frigidaire Microwave Stirrer Blade Cover
225304519319 Frigidaire Base
235304505674 Frigidaire Microwave Foot
245304519320 Frigidaire Microwave Hinge
255304513456 Frigidaire Microwave Magnetron
265304513457 Frigidaire Microwave High Voltage Transformer
275304513458 Frigidaire Microwave Capacitor
28DIODE, HIGH VOLTAGE
295304525109 Frigidaire Microwave Filter
305304517874 Frigidaire Fuse
31BULB, LAMP
32POWER CORD
335304519318 Frigidaire Microwave Thermostat
345304520011 Frigidaire Microwave Thermostat
355304519341 Frigidaire Microwave Bracket
365304532544 Frigidaire Lever
375304520019 Frigidaire Microwave Microswitch
38SWITCH
395304520021 Frigidaire Microwave Microswitch
405304520022 Frigidaire Microwave Harness
415304532545 Frigidaire Motor
425304519346 Frigidaire Microwave Coupler
435304519347 Frigidaire Microwave Ring Assembly
445304519348 Frigidaire Microwave Tray
455304519349 Frigidaire Guide
465304519350 Frigidaire Microwave Blade
475304519351 Frigidaire Microwave Motor
48INSULATOR, HEAT
495304513477 Frigidaire Microwave Guide
50Cover, wind guide, metal
515304509652 Frigidaire Microwave Sensor
525304509477 Frigidaire Retainer
535304519354 Frigidaire Microwave Wrapper
