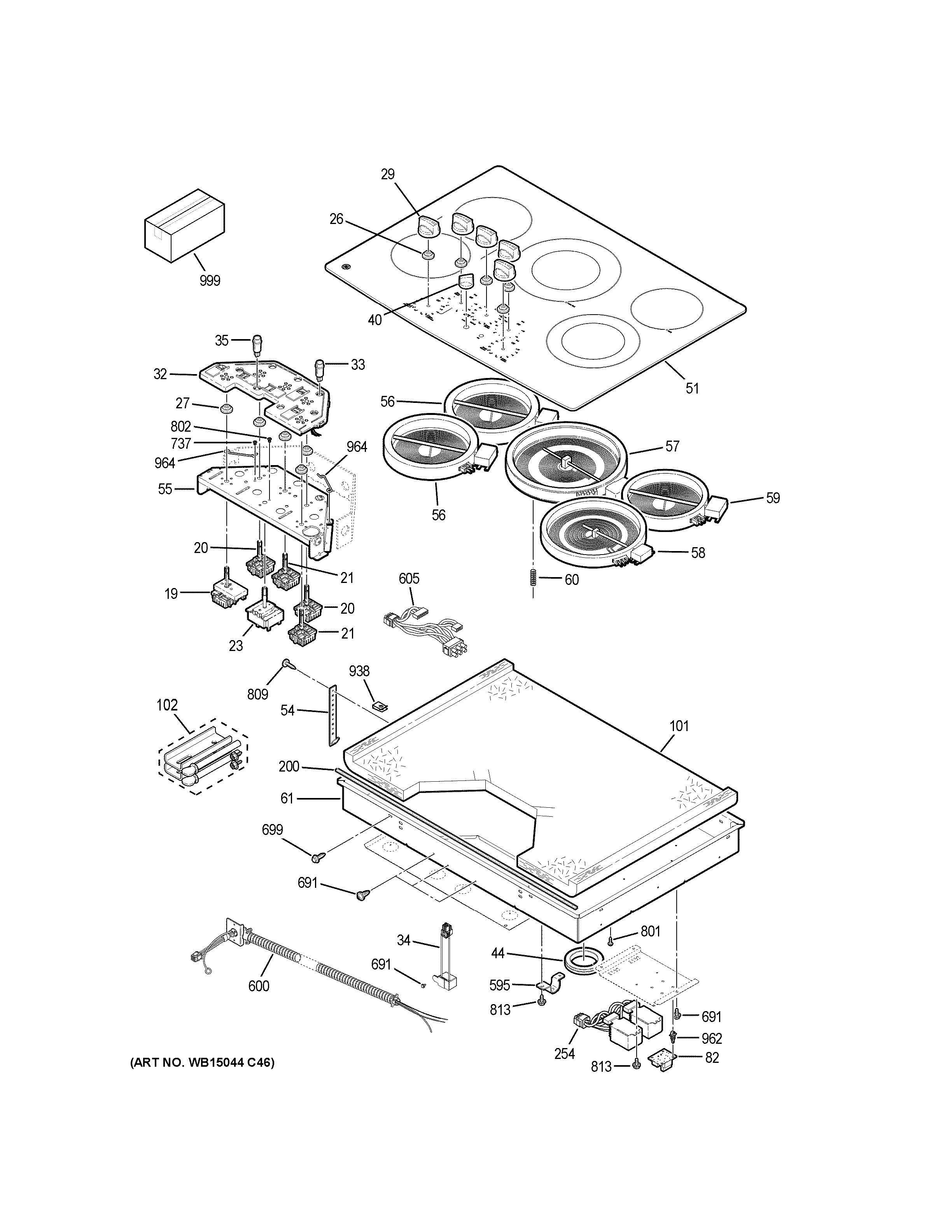

PP7030DJ1BB CONTROL PANEL & COOKTOP

PP7030DJ1BB CONTROL PANEL & COOKTOP

Written by

in

PP7030DJ1BB CONTROL PANEL & COOKTOP

Products

Position	Product
19	WB24X47195 GE Infinite Switch Control
20	WB24X24137 GE Oven Infinite Switch Control
21	WB24X24138 GE Oven Infinite Control Switch
23	WB24X24145 GE Oven Lockout Switch
26	WB02X26801 GE Oven Clear Seal Infinite Control
27	INFINITE CONTROL SEAL
29	WB03X24148 GE Range Knob Black
32	WB27X33687 GE Refrigerator LED Board and Housing Assembly
33	WB25T10012 GE Oven Indicator Light
34	WB18X24105 GE Oven Buzzer
35	WB25X24131 GE Oven Lockout Indicator Light
40	WB03T10314 GE Oven Black Selector Knob
44	WB02T10092 GE Burner Box Grommet
51	WB62X24149 GE Oven Maintop Glass and Frame
54	WB2K5328 GE Oven Hold Down Bracket
55	BRACKET INF SWITCH
56	WB30T10129 GE Oven Radiant Element 6 In
57	WB30X24111 GE Oven Dual Radiant Element
58	WB30X24134 GE Oven Halogen Element (Dual)
59	WB30T10145 GE Oven Radiant Surface Element
60	WB09X40389 GE Radiant Element Spring
61	WB63X24120 GE Bottom Burner Box
82	WB27X24029 GE Surface Backlight Control Board
101	WB35X24123 GE Insulation
102	WB01X24570 GE Oven Installation Kit
200	WB02X26088 GE Oven Foam Tape
254	WB18X32561 GE Relay Wire Harness
595	WB2K5126 GE Oven Condenser Clamp
600	WB18X32530 GE Wire Conduit Assembly
605	WB18X32551 GE Power Wire Harness
605	WB18X32565 GE Oven 18 Gauge Lead Wire
605	WB18X32533 GE Griddle Wire Harness
605	WB18X32539 GE Oven Main Wire Harness
605	WB18X32546 GE Infinite LED Wire Harness
691	GEN WZ04X0217
699	WB01X24096 GE Screw 8-18X
737	SCR 8-32 B FLP 3/4
801	WS02X10087 GE Screws 10-32 GX HXW 7/16 S
802	WB1K5119 GE Oven Screw
809	WB1X1137 GE Oven Screw
813	WB01X24092 GE Oven Screw 8-18
938	WB1K5209 GE Oven Clip
962	WB02T10477 GE Standoff PCB
964	WB02T10086 GE Retainer Wire
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	PM INSTALL INSTRUCTIONS
999	PM MANUAL MINI & WD ASM
999	PM OWNERS MANUAL
