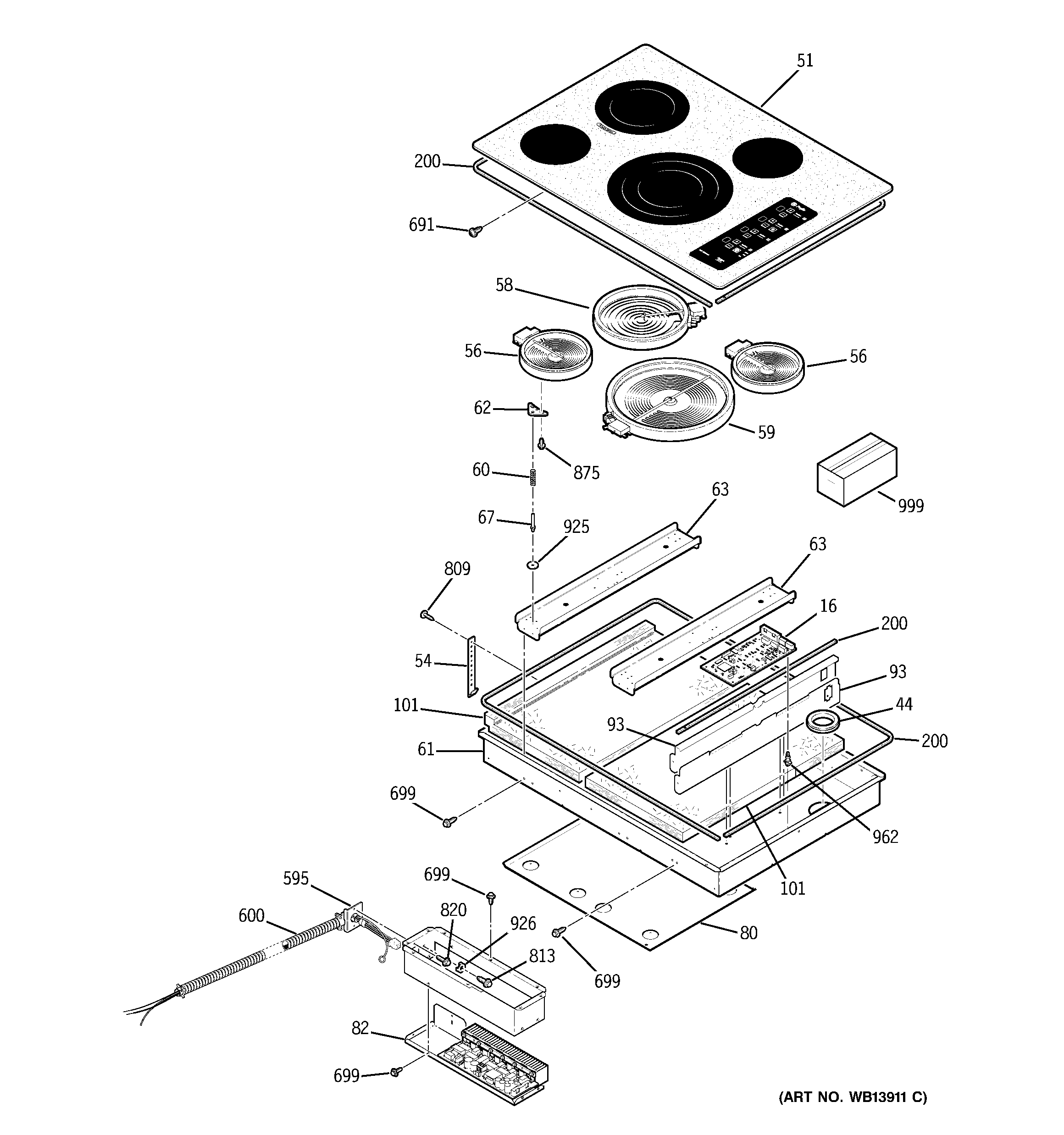

PP945WM2WW CONTROL PANEL & COOKTOP

Products

Position	Product
16	WB27T10893 GE Oven Daughter Relay Board
44	WB02T10092 GE Burner Box Grommet
51	GEN WB62T10569
51	GEN WB62T10568
51	GLASS MAINTOP ASM BK
54	WB2K5328 GE Oven Hold Down Bracket
56	WB30T10145 GE Oven Radiant Surface Element
58	WB30T10131 GE Oven Halogen Element 8 In
59	WB30T10126 GE Oven Triple Halogen Element
60	WB09T10005 GE Oven Spring Radiant
61	BOTTOM BURN BOX
62	WB2K5318 GE Oven Radiant Heater Bracket
63	GEN WB02T10335
63	GEN WB02T10334
67	WB2X9502 GE Oven Stud
80	GEN WB34T10100
82	WB23T10024 GE Oven Universal Power Board Assembly
93	BARRIER THERMAL INR 30
93	BARRIER THERMAL OTR 30
101	INSULATION
200	WB02X26088 GE Oven Foam Tape
200	WB06T10008 GE Oven Insulation Foam Tape
200	WB06T10007 GE Oven Cooktop Tape
595	WB2X9867 GE Oven Condenser Plate
600	WIRE CONDUIT ASM
691	WB1K5162 GE Oven Black Screw
699	WB1M1 GE Oven Screw
809	WB1X1137 GE Oven Screw
813	WB1X1261 GE Oven Screw
820	WB1X1424D GE Oven Screw Package
875	WH2X930 GE Screw
925	WB1K5117 GE Oven Washer
926	GROUND WASHER
962	WB02T10093 GE Oven Standoff Printed Circuit Board
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	GEN 31-14517
999	GEN 31-10637
999	GEN 49-80412
