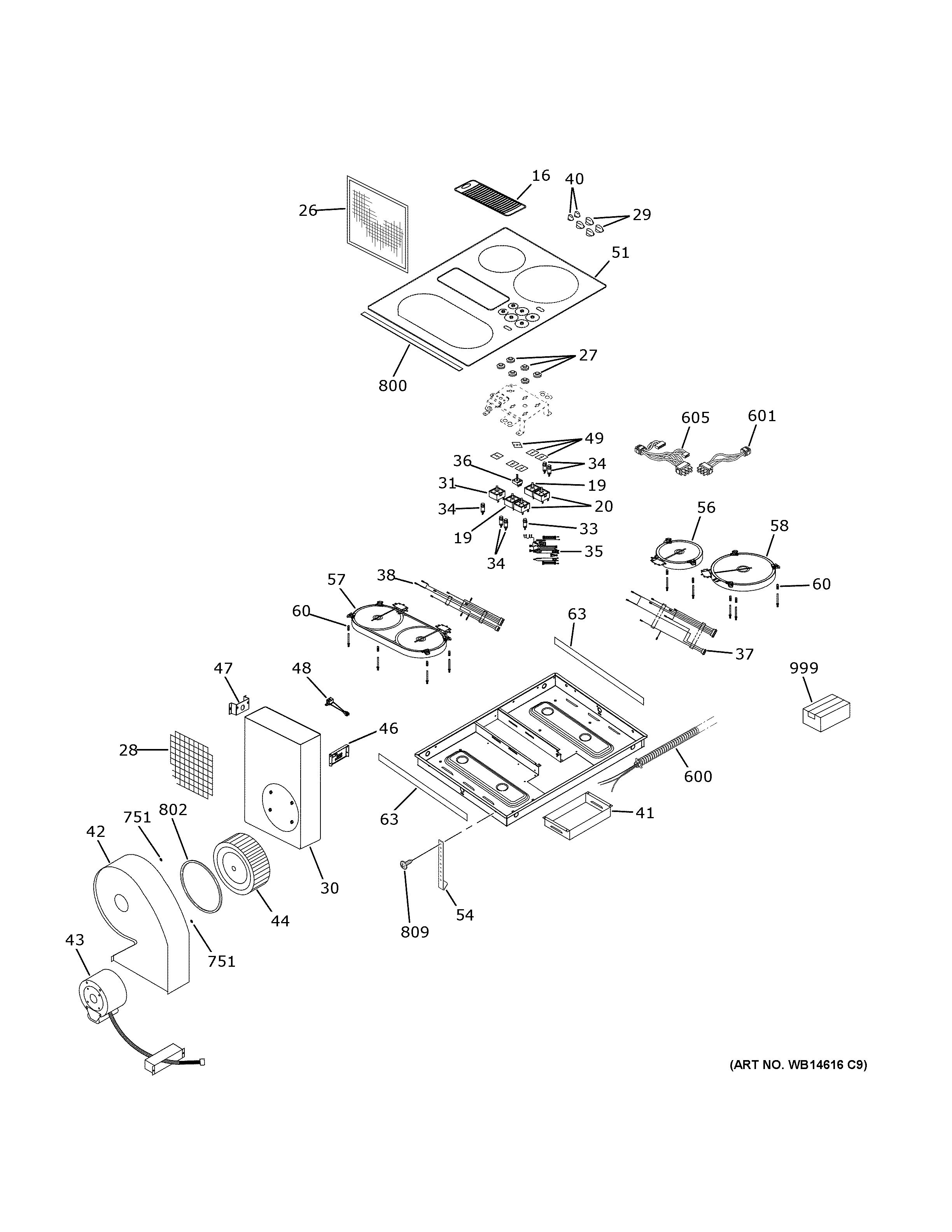

PP9830DR1BB CONTROL PANEL & COOKTOP

PP9830DR1BB CONTROL PANEL & COOKTOP

Written by

in

PP9830DR1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
16WB07X11210 GE Vent Grill Assembly (Black)
19SWITCH INFINITE
20SWITCH INFINITE
26FILTER
27WB35X28480 GE Glass and Shaft Seal
28GUARD WIRE
29WB03X10136 GE Oven Switch Knob
30BLOWER PLENUM
31WB24X10177 GE Oven Switch Lockout with Screw
33WB25K10006 GE Oven Control Indicator Light
34GEN WB25X10018
35CONTROL PANEL WIRE HARNESS
36WB24X10174 GE Oven Fan Switch
37MAINTOP WIRE HARNESS RH
38MAINTOP WIRE HARNESS LH
40WB03T10035 GE Oven Black Selector Knob
41COVER WIRE RADIANT
42BLOWER HOUSING
43WB26X45053 GE Motor
44GEN WB26X10130
46ENCLOSURE PLENUM
47SUPPORT PLENUM REAR
48WB18X24105 GE Oven Buzzer
49SWITCH GASKET
51WB62X45042 GE Maintop Assembly
54WB2K5328 GE Oven Hold Down Bracket
56RADIANT ELEMENT 7"
57WB30X45041 GE Bright Radiant Element
58WB30X45058 GE Radiant Element 10"
60WB09X10035 GE Heater Spring
63INSULATION SIDE
600CONDUIT WIRE
601L TO ON INDICATOR LIGHT JUMPER
601L1 TO LOCK INDICATOR LIGHT JUMPER
601LOCK SWITCH TO INFINITE SWITCH JUMPER
601P1 TO INFINITE SWITCH PILOT JUMPER
605INFINITE SWITCH WIRE HARNESS LH
605INFINITE SWITCH WIRE HARNESS RH
751WB01X45366 GE Push Nut
800WB06T10007 GE Oven Cooktop Tape
802WB02X26088 GE Oven Foam Tape
809WB1X1137 GE Oven Screw
999PM MINI MANUAL AND WIRING
999PM OWNERS AND INSTALL
