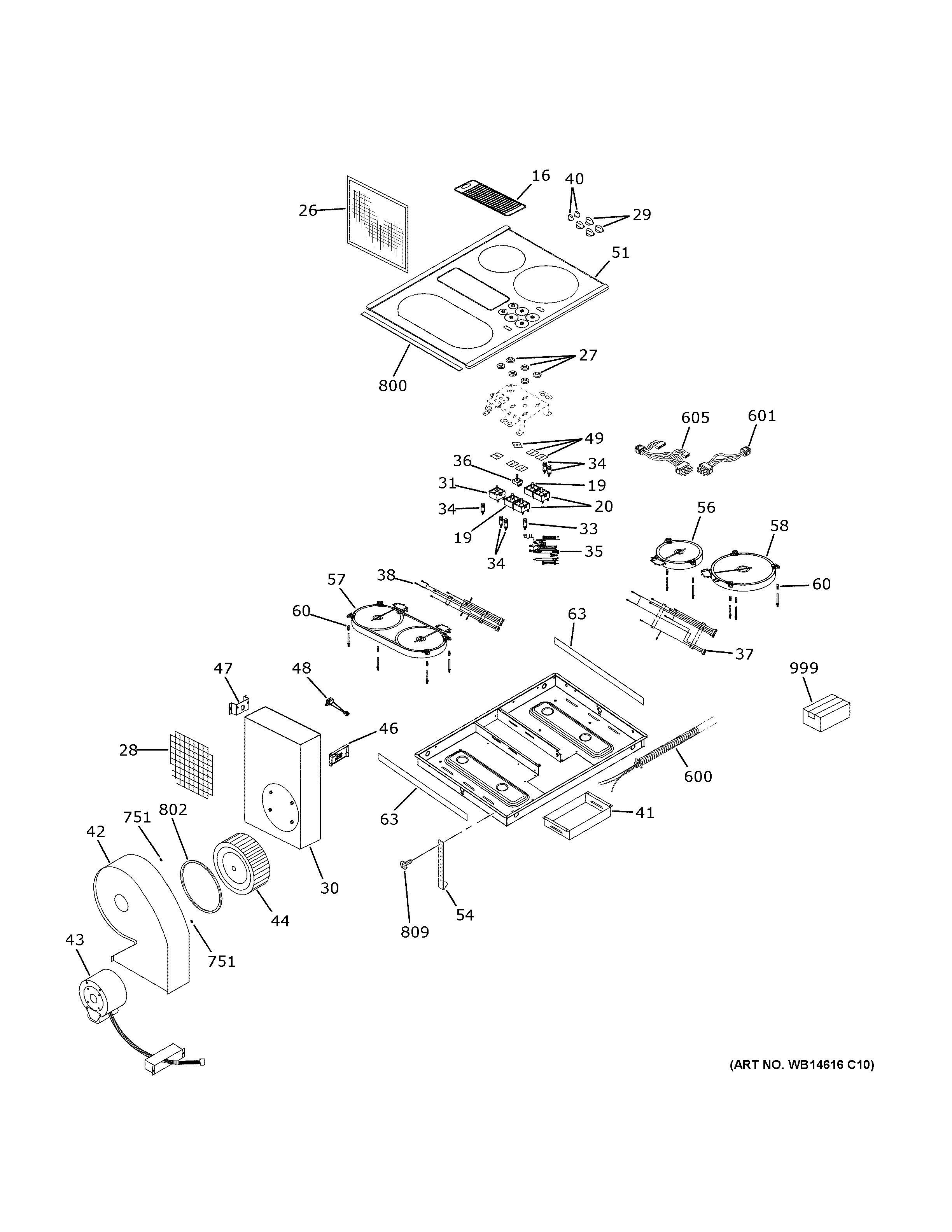

PP9830SR1SS CONTROL PANEL & COOKTOP

Products

Position	Product
16	WB07X11210 GE Vent Grill Assembly (Black)
19	SWITCH INFINITE
20	SWITCH INFINITE
26	FILTER
27	WB35X28480 GE Glass and Shaft Seal
28	GUARD WIRE
29	WB03X10324 GE Oven Stainless Steel Knob Switch
30	BLOWER PLENUM
31	WB24X10177 GE Oven Switch Lockout with Screw
33	WB25K10006 GE Oven Control Indicator Light
34	GEN WB25X10018
35	CONTROL PANEL WIRE HARNESS
36	WB24X10174 GE Oven Fan Switch
37	MAINTOP WIRE HARNESS RH
38	MAINTOP WIRE HARNESS LH
40	WB03T10272 GE Oven Knob
41	COVER WIRE RADIANT
42	BLOWER HOUSING
43	WB26X45053 GE Motor
44	GEN WB26X10130
46	ENCLOSURE PLENUM
47	SUPPORT PLENUM REAR
48	WB18X24105 GE Oven Buzzer
49	SWITCH GASKET
51	WB62X45046 GE Maintop Assembly
54	WB2K5328 GE Oven Hold Down Bracket
56	RADIANT ELEMENT 7"
57	WB30X45041 GE Bright Radiant Element
58	WB30X45058 GE Radiant Element 10"
60	WB09X10035 GE Heater Spring
63	INSULATION SIDE
600	CONDUIT WIRE
601	P1 TO INFINITE SWITCH PILOT JUMPER
601	L TO ON INDICATOR LIGHT JUMPER
601	L1 TO LOCK INDICATOR LIGHT JUMPER
601	LOCK SWITCH TO INFINITE SWITCH JUMPER
605	INFINITE SWITCH WIRE HARNESS RH
605	INFINITE SWITCH WIRE HARNESS LH
751	WB01X45366 GE Push Nut
800	WB06T10007 GE Oven Cooktop Tape
802	WB02X26088 GE Oven Foam Tape
809	WB1X1137 GE Oven Screw
999	PM MINI MANUAL AND WIRING
999	PM OWNERS AND INSTALL
