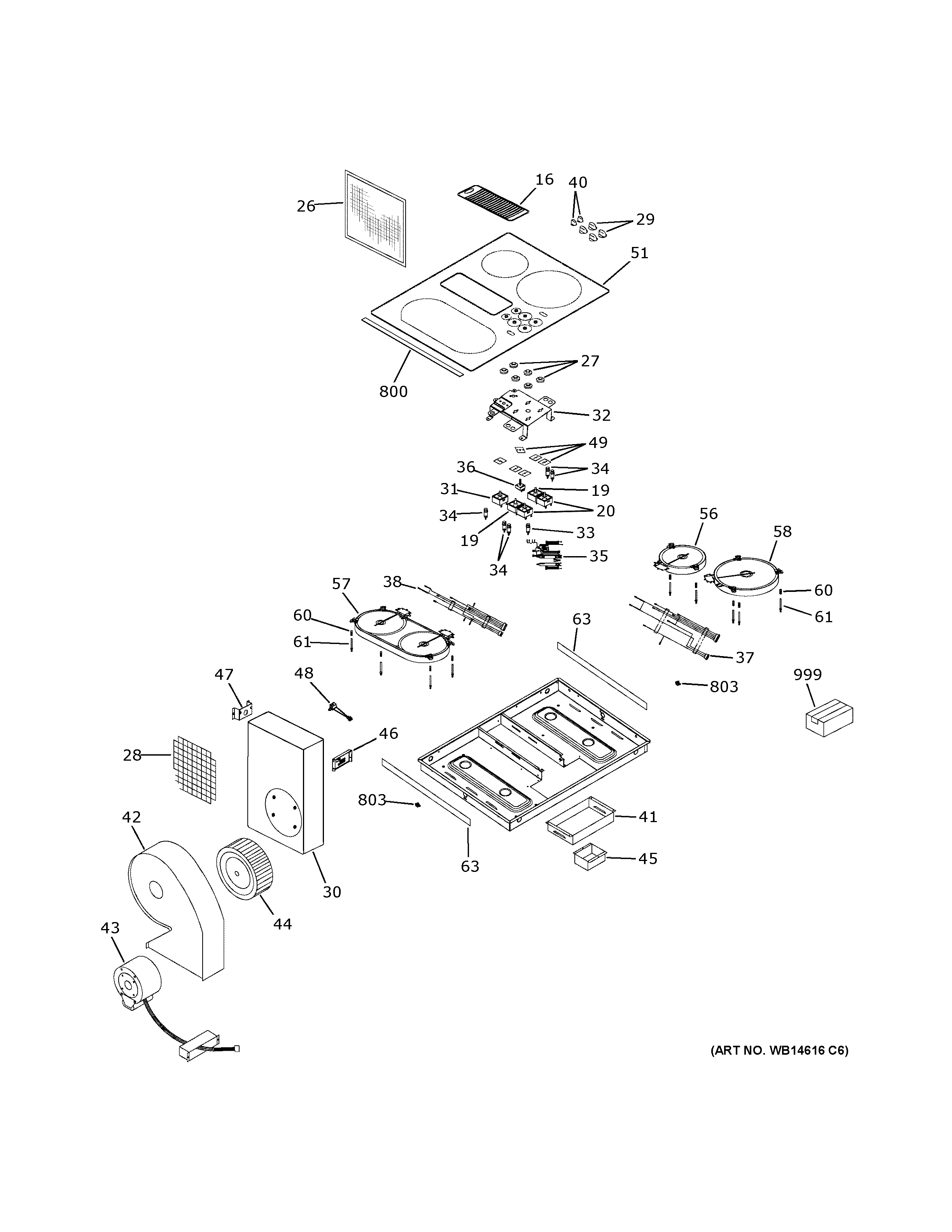

PP9830TJ1WW CONTROL PANEL & COOKTOP

Products

Position	Product
16	GEN WB07X11211
19	SWITCH INFINITE
20	SWITCH INFINITE
26	GEN WB02X10651
27	SEAL, SWITCH
28	WB02X10652 GE Oven Guard Wire
29	WB03X10138 GE Oven Knob Assembly Switch
30	GEN WB64X10019
31	WB24X10177 GE Oven Switch Lockout with Screw
32	WB02X11367 GE Range Control Panel
33	WB25K10006 GE Oven Control Indicator Light
34	GEN WB25X10018
35	WB18X10426 GE Control Harness
36	WB24X10174 GE Oven Fan Switch
37	WB18X23140 GE Right Hand Wire Harness
38	LH WIRE HARNESS
40	GEN WB03X10323
41	WB02X11366 GE Radiant Wire Cover
42	GEN WB26X10129
43	GEN WB26X10131
44	GEN WB26X10130
45	GEN WB02X11191
46	WB02X11368 GE Wall Plenum Ran
47	WB02X11364 GE Cooktop Support
48	WB08T10038 GE Oven Buzzer 240V
49	SWITCH GASKET
51	MAINTOP GLASS, WH
56	WB30T10129 GE Oven Radiant Element 6 In
57	WB30T10152 GE Oven Radiant Element Bridge
58	WB30T10133 GE Oven Dual Radiant Element
60	WB09X10035 GE Heater Spring
61	STUD
63	WB35X10007 GE Oven Radiant Insulation
800	WB02X26088 GE Oven Foam Tape
803	CLIP RETAINER
999	PM OWNERS MANUAL
999	PM OWNERS & INSTALL
999	PM MINI MANUAL
999	INSTALLATION KIT
