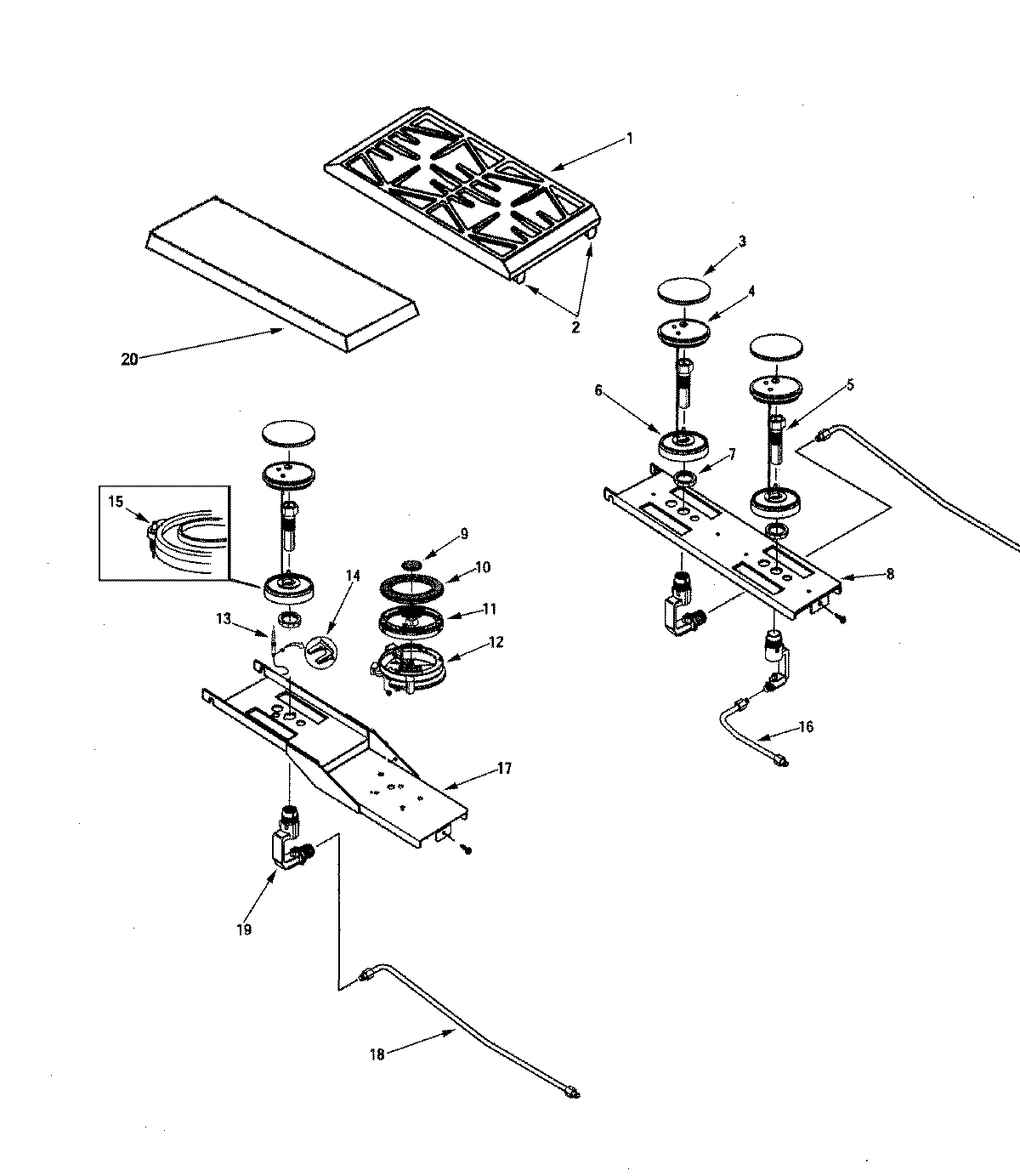

PRD3030NP 07 – SURFACE BURNER ASSEMBLY
Written by
in
PRD3030NP 07 – SURFACE BURNER ASSEMBLY
Products
Position
Product
1
MAY 73001005
2
WP73001276 Whirlpool Grate Foot
3
MAY 73001274
4
MAY 73001275
5
MAY 73001286
6
MAY 73001285
7
MAY 73001280
8
MAY 73001351
9
MAY 73001337
10
WP8285258 Whirlpool Top Cap
11
MAY 73001336
12
TUBE, MAIN FRONT (DUAL FLOW)
12
MAY 73001298
12
BURNER (DUAL FLOW/NAT)
12
MAY 73001551
12
TUBE, SIMMER FRONT (DUAL FLOW)
13
MAY 73001283
14
MAY 73001284
15
WP73001283 Whirlpool Igniter Spring
16
MAY 73001278
17
MAY 73001356
18
MAY 73001279
19
HOLDER, ORIFICE (NAT)
20
MAY 73001311
←
