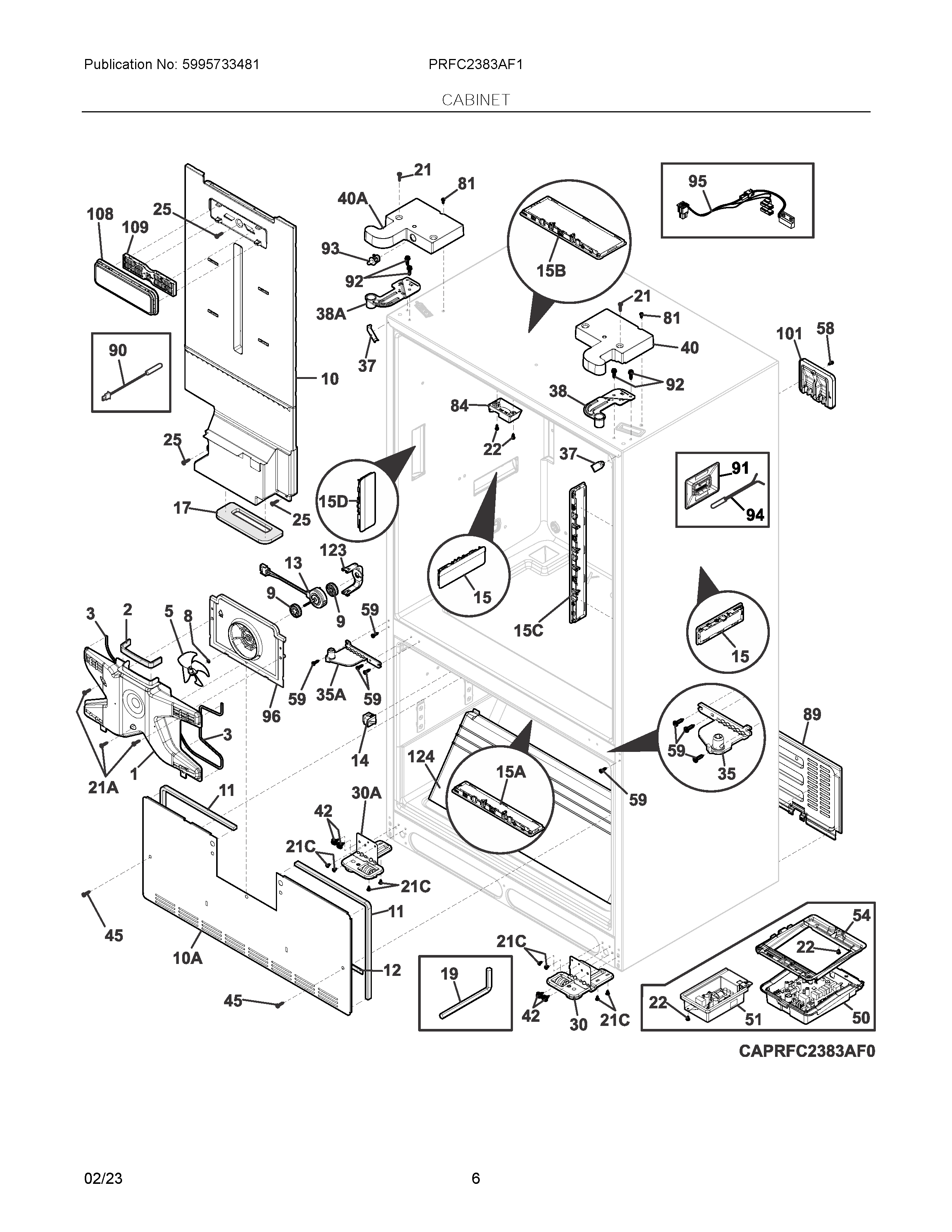

PRFC2383AF1 04 – CABINET

PRFC2383AF1 04 – CABINET

Written by

in

PRFC2383AF1 04 – CABINET

Products

Position	Product
NI	242039702 Frigidaire Refrigerator Screw
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	241695906 Frigidaire Screw
NIA	WCI 5304531189
NI	218515401 Frigidaire Refrigerator Clip
NIA	241842301 Frigidaire Refrigerator Thermistor Cap
NIC	241969001 Frigidaire Refrigerator Cap
NIA	5304532916 Frigidaire Harness
NIA	241500305 Frigidaire Refrigerator Screw
NIB	241953902 Frigidaire Refrigerator Screw
NIA	5304508776 Frigidaire Washer Lock
1	5304530963 Frigidaire Cover
2	218249809 Frigidaire Refrigerator Seal
3	241860117 Frigidaire Gasket
5	5304532795 Frigidaire Refrigerator Blade
8	215474201 Frigidaire Refrigerator Washer
9	5304508006 Frigidaire Refrigerator Bushing
10	5303918904 Frigidaire AIR TOWER W/ Gasket
10A	241860404 Frigidaire Refrigerator Cover
11	241860104 Frigidaire Refrigerator Coil Cover Gasket
12	241860105 Frigidaire Refrigerator Gasket-Coil Cover
13	MOTOR
14	5304520495 Frigidaire Refrigerator Switch
15A	LIGHT ASSEMBLY, LED, DOUBLE, W/LENS
15B	LAMP
15C	5304524658 Frigidaire Refrigerator Light Assembly
15D	5304524656 Frigidaire Refrigerator Assembly-Light
15	LIGHT ASSEMBLY, LED, SINGLE, W/LENS
17	5304530941 Frigidaire Refrigerator Gasket
19	5304532082 Frigidaire Door Alignment Kit
21A	242015001 Frigidaire Refrigerator Screw
21	241732101 Frigidaire Refrigerator Screw
21C	218252201 Frigidaire Refrigerator Screw
22	5304455650 Frigidaire Refrigerator Screw
25	240383407 Frigidaire Refrigerator Screw
30	5304530657 Frigidaire Refrigerator Stabilizer
30A	5304530656 Frigidaire Refrigerator Stabilizer
35A	5304530888 Frigidaire Refrigerator Hinge Assembly
35	5304530887 Frigidaire Refrigerator Hinge Assembly
37	5304519618 Frigidaire Refrigerator Cabinet Corner Trim
38A	5304530819 Frigidaire Refrigerator Hinge Bracket
38	5304530818 Frigidaire Refrigerator Hinge Bracket
40A	5304534838 Frigidaire Cover Assembly
40	5304534834 Frigidaire Cover
42	240578902 Frigidaire Screw Mounting Hinge
45	241500303 Frigidaire Refrigerator Screw
50	5304533130 Frigidaire Control Board
51	5304532919 Frigidaire Control Board
54	807854301 Frigidaire Refrigerator Support
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	134154100 Frigidaire Screw 10-32 x 0.375 Co
84	5304530886 Frigidaire Guide
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	240597220 Frigidaire Sensor
91	5304508041 Frigidaire Refrigerator Cover
92	241710601 Frigidaire Refrigerator Screw
93	5304533035 Frigidaire Light Switch Assembly
94	5303918775 Frigidaire Refrigerator Thermistor
95	5304531013 Frigidaire Refrigerator Harness
96	242204604 Frigidaire Shroud
101	5304531020 Frigidaire Refrigerator Cover
108	5304533103 Frigidaire Assembly Housing
109	FRGPAAF2 Frigidaire PureAir® Replacement Refrigerator Air Filter
123	5304508007 Frigidaire Refrigerator Bracket
124	242006903 Frigidaire Refrigerator Air Duct
