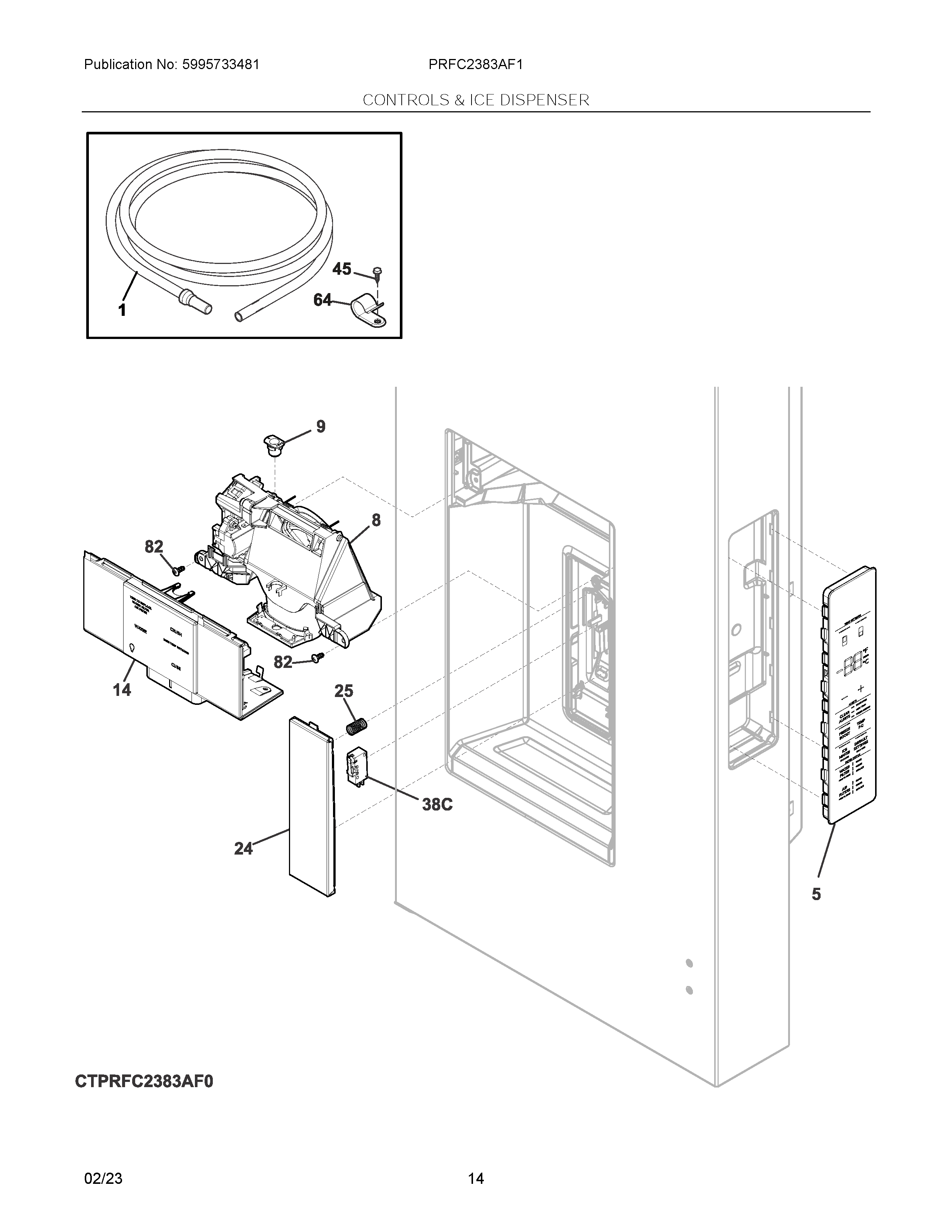

PRFC2383AF1 07 – CONTROLS & ICE DISPENSER

Products

Position	Product
NI	241510904 Frigidaire Refrigerator Dispenser Harness
NIA	241806601 Frigidaire Refrigerator Water Connector
NIB	242200102 Frigidaire Refrigerator Clip
1	218976448 Frigidaire Water Line Hose
5	5304523018 Frigidaire Refrigerator Control Assembly
8	5304533221 Frigidaire I&W Module Assembly
9	5304527100 Frigidaire Refrigerator Guide
14	5304532649 Frigidaire UI Display Assembly
24	ACTUATOR, DISPENSER, STAINLESS
25	5304519199 Frigidaire Refrigerator Spring
38C	241870104 Frigidaire Switch
45	5303307980 Frigidaire Oven Screw
45A	5304455650 Frigidaire Refrigerator Screw
64	240396801 Frigidaire Refrigerator Tube Clamp
82	241953902 Frigidaire Refrigerator Screw
