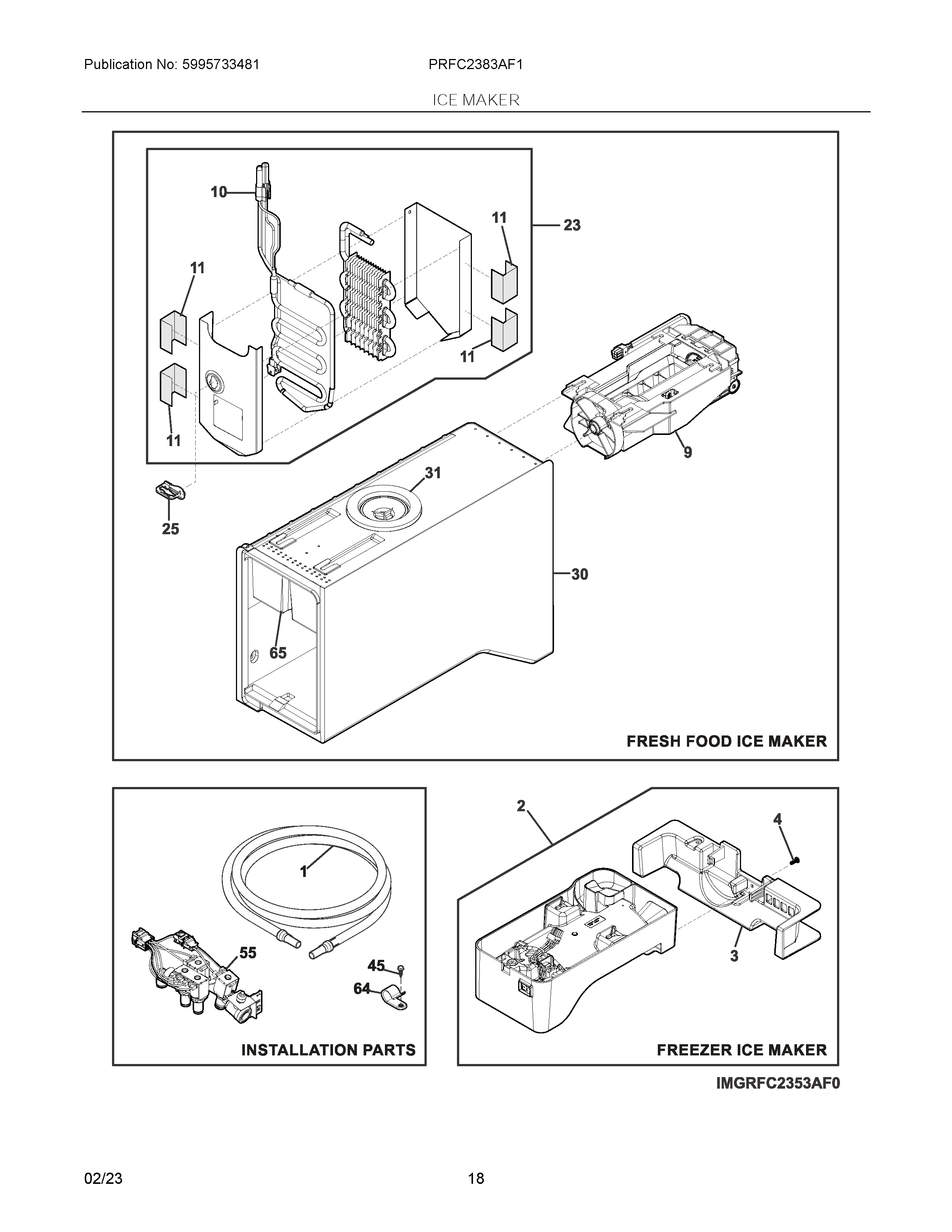

PRFC2383AF1 09 – ICE MAKER

Products

Position	Product
NIA	241953902 Frigidaire Refrigerator Screw
NIB	5304530732 Frigidaire Refrigerator Wiring Harness
NIC	218976830 Frigidaire Refrigerator Tube
NIA	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	218515401 Frigidaire Refrigerator Clip
NIB	218976829 Frigidaire Refrigerator Tube
NIA	5303918645 Frigidaire Refrigerator Thermistor Kit
NIB	240363602 Frigidaire Refrigerator Shoulder Screw
NIA	242200102 Frigidaire Refrigerator Clip
1	218976443 Frigidaire Refrigerator Tube
2	A21755301 Frigidaire Refrigerator Ice Maker Assembly
3	5304531313 Frigidaire Bracket Assembly
4	5304453707 Frigidaire Oven Screw
9	243297608 Frigidaire Refrigerator Ice Maker
10	5304519629 Frigidaire Refrigerator Clip
11	5304485759 Frigidaire Refrigerator Tape
23	5304530680 Frigidaire Assembly Evaporator
25	5304508037 Frigidaire Refrigerator Connector
30	5304531300 Frigidaire Assembly Housing
31	241512813 Frigidaire Seal Doughnut
45	5303307980 Frigidaire Oven Screw
55	VALVE,WATER,QUAD SOLENOID
64	240396801 Frigidaire Refrigerator Tube Clamp
65	COVER, WIRING
