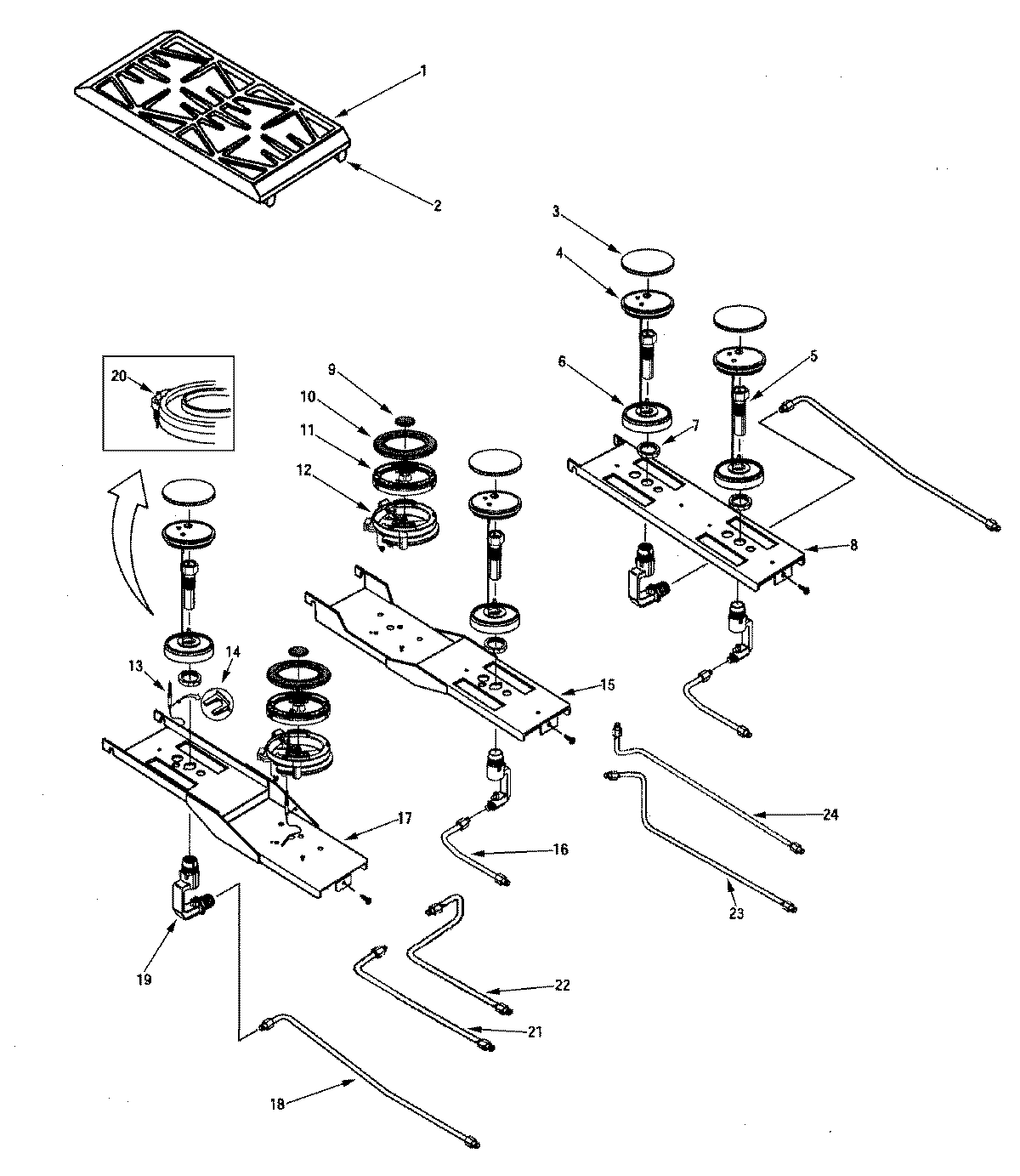

PRG3610LP 06 – SURFACE BURNER ASSEMBLY
Written by
in
PRG3610LP 06 – SURFACE BURNER ASSEMBLY
Products
Position
Product
1
MAY 73001005
2
WP73001276 Whirlpool Grate Foot
3
MAY 73001274
4
MAY 73001275
5
MAY 73001286
6
MAY 73001285
7
MAY 73001280
8
MAY 73001418
9
MAY 73001337
10
WP8285258 Whirlpool Top Cap
11
MAY 73001336
12
MAY 73001613
12
TUBE, MAIN FRONT (DUAL FLOW)
12
MAY 73001298
12
TUBE, SIMMER FRONT (DUAL FLOW)
12
MAY 73001614
12
BURNER (DUAL FLOW/NAT)
12
MAY 73001551
13
MAY 73001283
14
MAY 73001284
15
MAY 73001422
16
MAY 73001347
17
MAY 73001421
18
MAY 73001442
19
HOLDER, ORIFICE (NAT)
20
WP73001283 Whirlpool Igniter Spring
←
