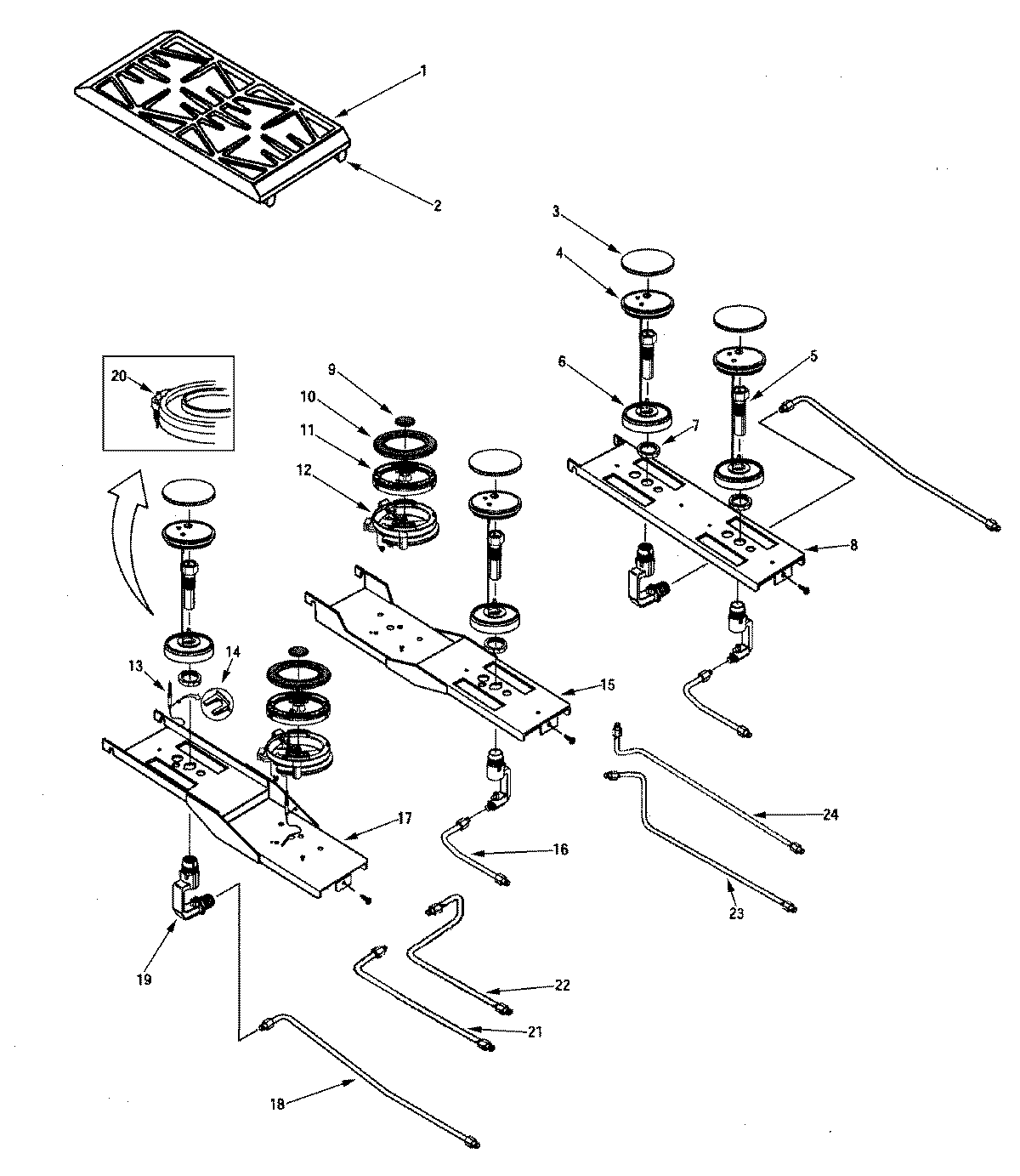

PRG4810LP 09 – SURFACE BURNER ASSEMBLY

Products

Position	Product
1	MAY 73001005
2	WP73001276 Whirlpool Grate Foot
3	MAY 73001274
4	MAY 73001275
5	MAY 73001286
6	MAY 73001285
7	MAY 73001280
8	MAY 73001418
9	MAY 73001337
10	WP8285258 Whirlpool Top Cap
11	MAY 73001336
12	MAY 73001613
12	MAY 73001551
12	MAY 73001614
12	BURNER (DUAL FLOW/NAT)
13	MAY 73001283
14	MAY 73001284
15	MAY 73001422
16	MAY 73001347
17	MAY 73001421
18	MAY 73001442
19	MAY 210542-1
20	WP73001283 Whirlpool Igniter Spring
21	MAY 73001298
21	TUBE, SIMMER FRONT (DUAL FLOW)
22	TUBE, MAIN FRONT (DUAL FLOW)
