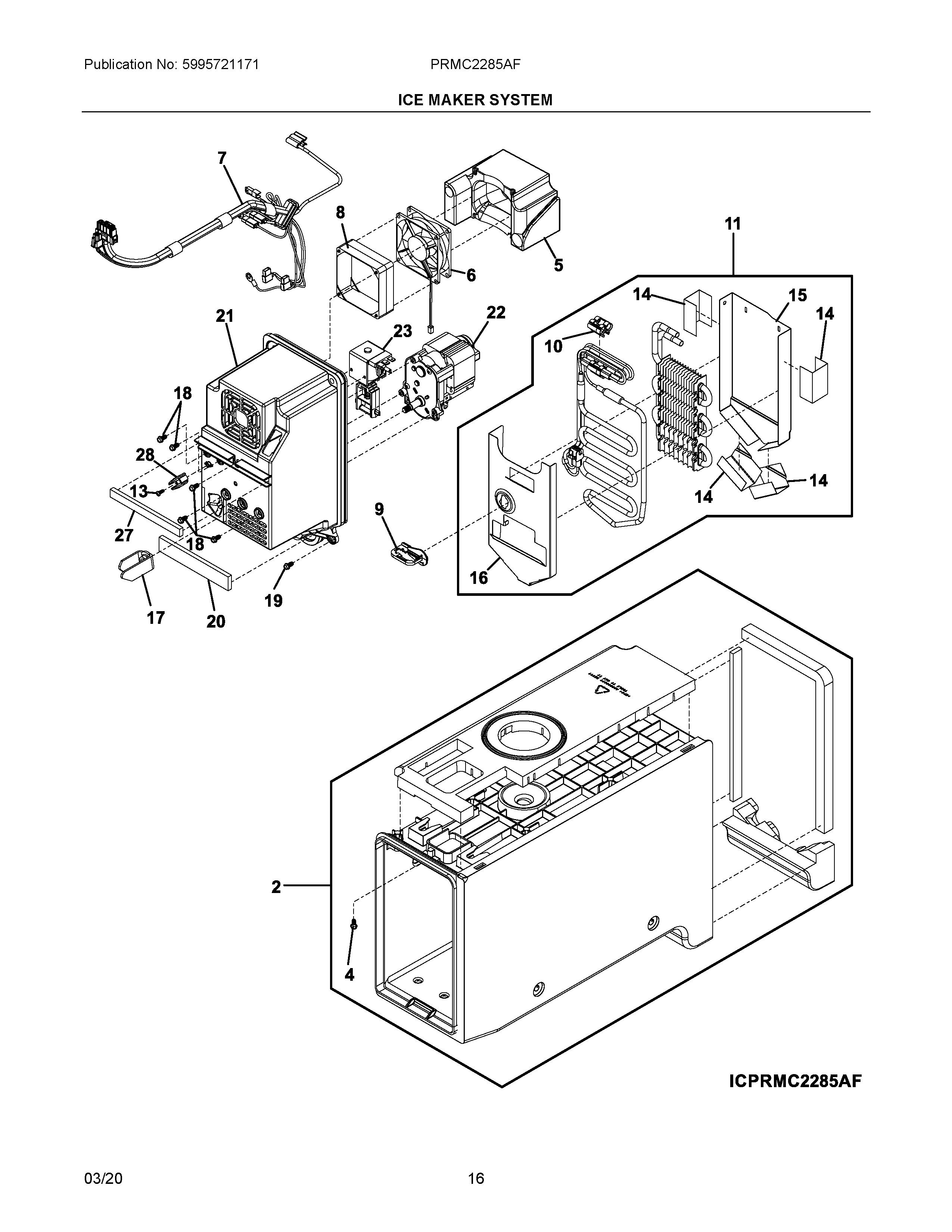

PRMC2285AF 09 – ICE MAKER SYSTEM

Products

Position	Product
NIA	218359202 Frigidaire Refrigerator Screw
2	5303918901 Frigidaire Ice Maker Housing
4	241953902 Frigidaire Refrigerator Screw
5	5304523073 Frigidaire Refrigerator Duct
6	5304524796 Frigidaire Refrigerator Motor
7	5304519206 Frigidaire Refrigerator Harness
8	5304508063 Frigidaire Refrigerator Grommet
9	5304508037 Frigidaire Refrigerator Connector
10	5304519629 Frigidaire Refrigerator Clip
13	241641502 Frigidaire Refrigerator Screw
14	5304485759 Frigidaire Refrigerator Tape
15	5304519630 Frigidaire Refrigerator Evaporator Assembly
17	241829001 Frigidaire Refrigerator Bar Drive
18	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
19	519088008 Frigidaire Refrigerator Screw
20	5303918784 Frigidaire Refrigerator Air Handler Housing
21	5304519207 Frigidaire Refrigerator Housing
22	5304519208 Frigidaire Refrigerator Motor
23	241675705 Frigidaire Refrigerator Solenoid
27	5304519211 Frigidaire Refrigerator Gasket
28	5304519212 Frigidaire Refrigerator Pin
