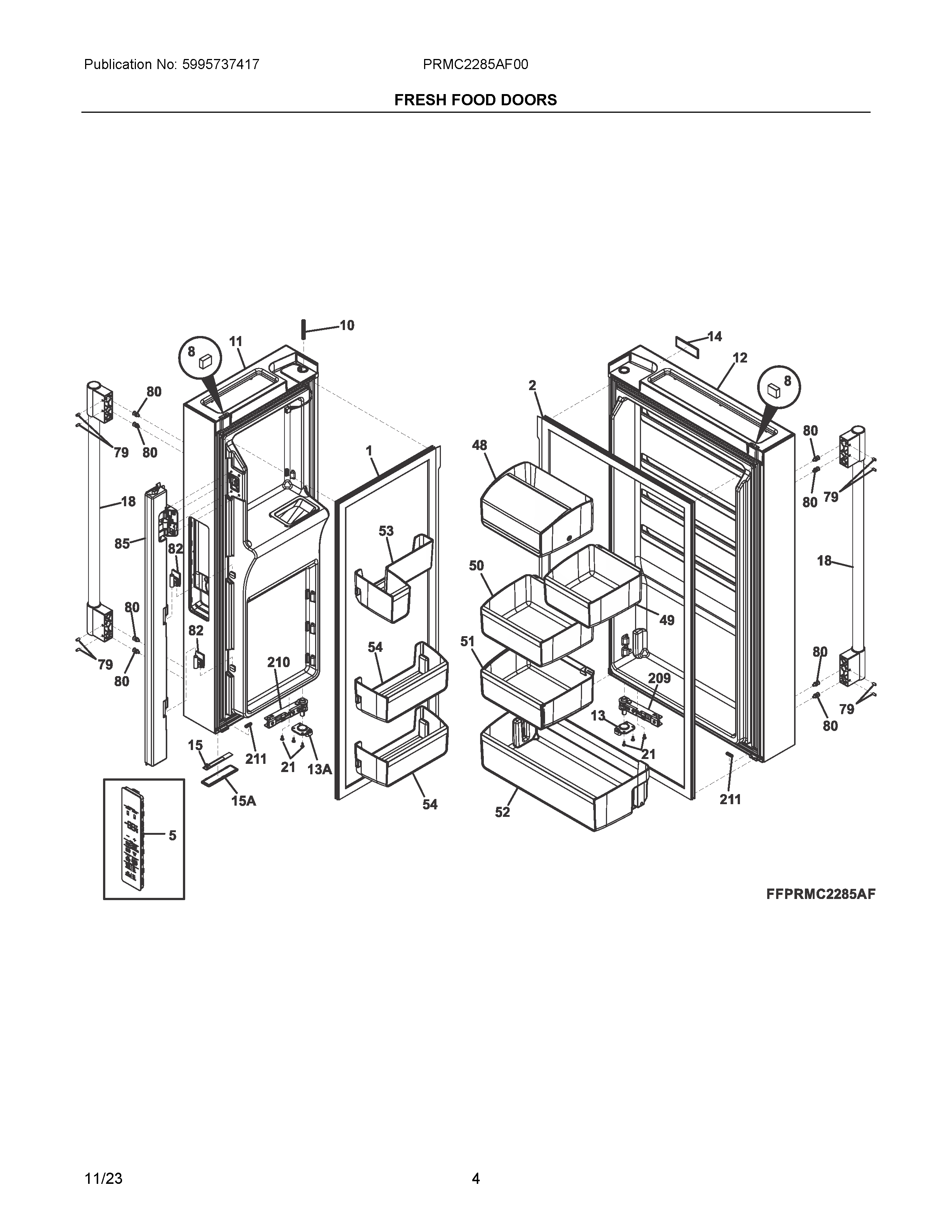

PRMC2285AF00 03 – FRESH FOOD DOORS

PRMC2285AF00 03 – FRESH FOOD DOORS

Written by

in

PRMC2285AF00 03 – FRESH FOOD DOORS

Products

PositionProduct
NIAASTOP, ASSEMBLY, LH DOOR, ANGLE REDUCTION, (OPTIONAL ITEM)
NIBScrew, hilo phil pn, .5", white
NIA5304519070 Frigidaire Refrigerator Stop
NIA5304531674 Frigidaire Heater
NI242200102 Frigidaire Refrigerator Clip
15304529569 Frigidaire Refrigerator Gasket
25304529576 Frigidaire Refrigerator Gasket
55304523018 Frigidaire Refrigerator Control Assembly
85304519044 Frigidaire Magnet
105304519067 Frigidaire Refrigerator Spring
11DOOR ASSY, OUTER, STAINLESS
12WCI 5304523020
13ASTOP, ASSEMBLY, LH DOOR
14809108704 Frigidaire Refrigerator Badge
155304523011 Frigidaire Refrigerator Light Board
15A5304519049 Frigidaire Refrigerator Lens
185304533253 Frigidaire Handle
21241953902 Frigidaire Refrigerator Screw
485304523022 Frigidaire Refrigerator Bin Assembly
495304523023 Frigidaire Refrigerator Bin
505304523024 Frigidaire Refrigerator Bin
515304523025 Frigidaire Refrigerator Bin Assembly
525304523026 Frigidaire Refrigerator Bin
535304523027 Frigidaire Bin
545304523028 Frigidaire Refrigerator Bin
79218755402 Frigidaire Refrigerator Set Screw
805304519063 Frigidaire Refrigerator Screw
825304519080 Frigidaire Refrigerator Hinge
855304519081 Frigidaire Refrigerator Mullion Assembly
2095304526201 Frigidaire Refrigerator Right Hand Door Closer Without
2105304526202 Frigidaire Refrigerator Left Hand Door Closer
2115304519083 Frigidaire Refrigerator Bumper
