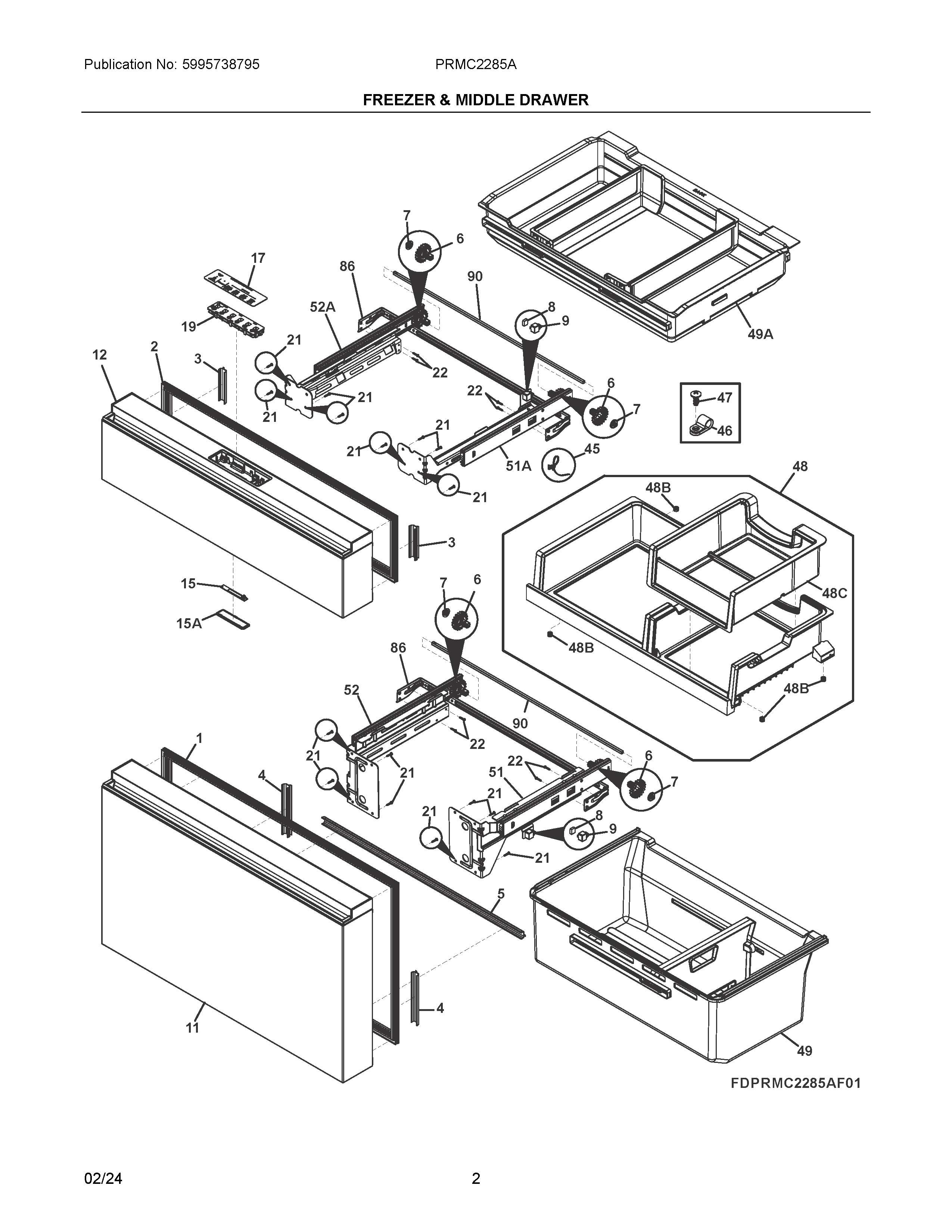

PRMC2285AF01 02 – FREEZER & MIDDLE DRAWER

PRMC2285AF01 02 – FREEZER & MIDDLE DRAWER

Written by

in

PRMC2285AF01 02 – FREEZER & MIDDLE DRAWER

Products

PositionProduct
NIBA811949503 Frigidaire Screw
NIASCREW, PHIL PN HD, M4 X 8
NIA5304519084 Frigidaire Screw
NIA5304519048 Frigidaire Refrigerator Harness
15304519037 Frigidaire Refrigerator Gasket
25304519038 Frigidaire Refrigerator Gasket
35304519041 Frigidaire Refrigerator Gasket
65304524001 Frigidaire Refrigerator Gear
75304519043 Frigidaire Refrigerator Bearing
85304519044 Frigidaire Magnet
9SUPPORT
11DOOR ASSY FREEZER DRAWER
12WCI 5304523010
155304523011 Frigidaire Refrigerator Light Board
15A5304519049 Frigidaire Refrigerator Lens
17WCI 5304523012
195304531769 Frigidaire Refrigerator PCB Board
21811949401 Frigidaire Refrigerator Screw
225304519053 Frigidaire Refrigerator Screw
45539151026 Frigidaire Clip
46CLAMP, CABLE, 1/4"
47241953902 Frigidaire Refrigerator Screw
48BCushion,rubber ,freezer drw
485304523015 Frigidaire Refrigerator Assembly Drawer
48C5304523681 Frigidaire Refrigerator Container
49AWCI 5304523016
495304519057 Frigidaire Refrigerator Assembly-Basket
515304519059 Frigidaire Refrigerator Slider
51A5304519060 Frigidaire Refrigerator Slider
52A5304519062 Frigidaire Refrigerator Slider
525304519061 Frigidaire Refrigerator Slider
865304519064 Frigidaire Refrigerator Bracket
905304524002 Frigidaire Shaft
