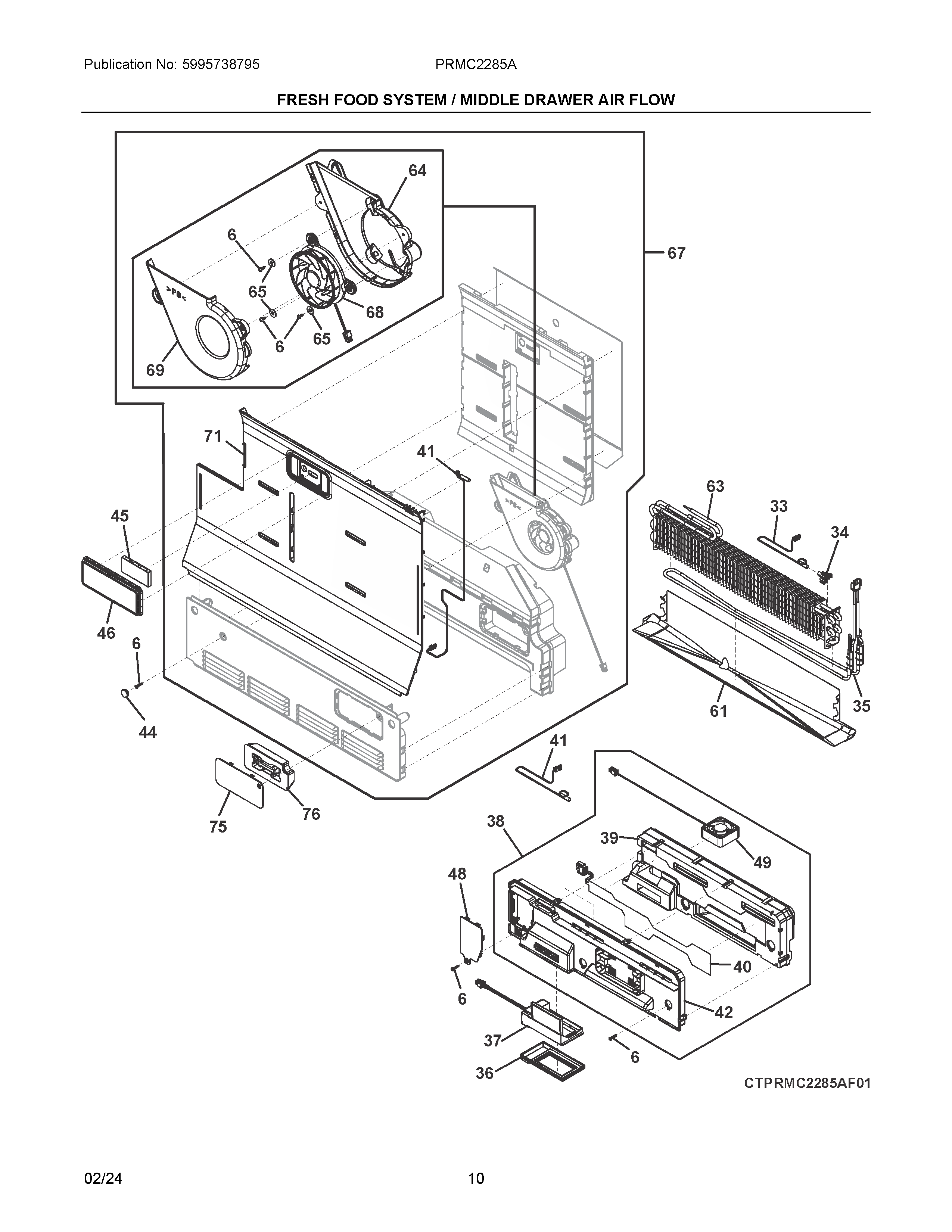

PRMC2285AF01 06 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

PRMC2285AF01 06 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

Written by

in

PRMC2285AF01 06 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

Products

PositionProduct
NI5304523029 Frigidaire Screw Assembly
NIScrew, hilo phil pn, .5", white
NI811950601 Frigidaire Refrigerator Seal
NIASEAL, 6X20X450, FOAM
NIA5304523687 Frigidaire Sticker
6811949503 Frigidaire Screw
335303918851 Frigidaire Refrigerator Thermostat Kit
34811980406 Frigidaire Clamp
355304534878 Frigidaire Heater
365304523686 Frigidaire Seal
375304519166 Frigidaire Refrigerator Baffle Assembly
385304519167 Frigidaire Refrigerator Assembly Cover
39DUCT ASSEMBLY, AIR FLOW, MIDDLE DRAWER
40HEATER ASSEMBLY, MIDDLE DRAWER
415303918775 Frigidaire Refrigerator Thermistor
425304519170 Frigidaire Cover
445304524004 Frigidaire Refrigerator Cover
45PAULTRA2 Frigidaire Pure Air Ultra 2 Filter
465304523057 Frigidaire Refrigerator Cover
48COVER, WINDOW, MIDDLE DRAWER
495304519173 Frigidaire Refrigerator Fan Assembly
615304519180 Frigidaire Drain Trough
635304526811 Frigidaire Refrigerator Evaporator
645304519182 Frigidaire Refrigerator Bracket
655304519183 Frigidaire Washer
675304524899 Frigidaire Refrigerator Cover Assembly
685304519186 Frigidaire Refrigerator Fan Assembly
695304519187 Frigidaire Refrigerator Housing
715304523059 Frigidaire Cover
755304519189 Frigidaire Cover
765304522062 Frigidaire Insulation Assembly
