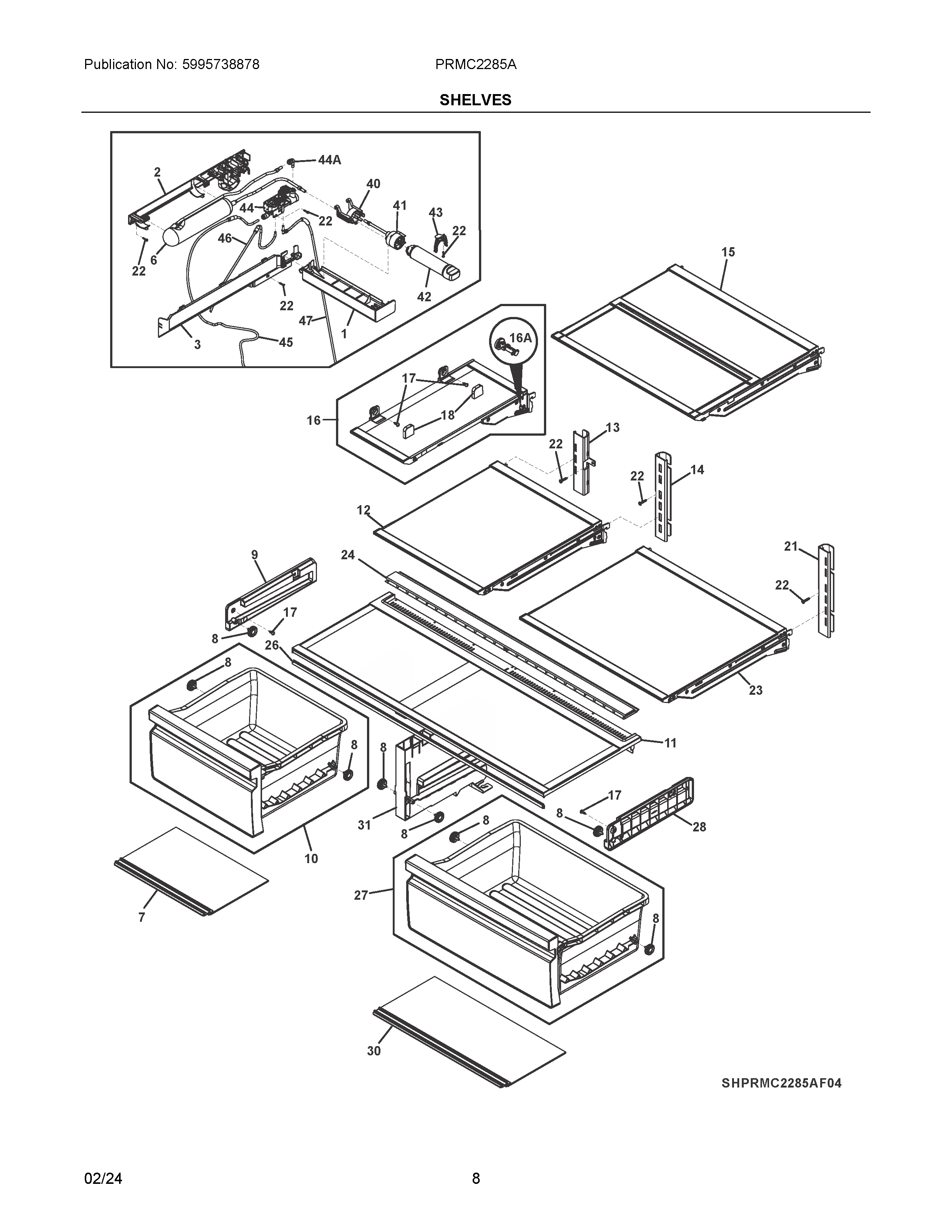

PRMC2285AF04 05 – SHELVES

PRMC2285AF04 05 – SHELVES

Written by

in

PRMC2285AF04 05 – SHELVES

Products

Position	Product
NIA	WCI 5304533519
NI	5304529552 Frigidaire Seal
NI	5304529553 Frigidaire Seal
NI	242200102 Frigidaire Refrigerator Clip
1	5304533262 Frigidaire Refrigerator Cover
2	5304529601 Frigidaire Support Bracket
3	5304523035 Frigidaire Refrigerator Cover
6	5304523037 Frigidaire Refrigerator Tank
7	COVER, MULLION STORAGE, GLASS, LH
8	5304519124 Frigidaire Roller
9	5304519125 Frigidaire Refrigerator Rail
10	5304527986 Frigidaire Refrigerator Drawer Assembly
11	5304531895 Frigidaire Cover Assembly
12	5304523041 Frigidaire Shelf Assembly
13	BRACKET, CANTILEVER SHLF, GREY, LH
14	BRACKET, CANTILEVER SHLF, GREY, CENTER
15	5304523044 Frigidaire Shelf Assembly
16A	5304523682 Frigidaire Pin
16	5304523045 Frigidaire Shelf Assembly
17	Screw, hilo phil pn, .5", white
18	5304519133 Frigidaire Refrigerator Cover Assembly
21	BRACKET, CANTILEVER SHLF, GREY, RH
22	811949503 Frigidaire Screw
23	SHELF ASSEMBLY, CANTILEVER, GLASS, RH
24	5304523048 Frigidaire Housing Assembly
26	5304519140 Frigidaire Refrigerator Gasket
27	5304527987 Frigidaire Refrigerator Drawer Assembly
28	Rail, crisper, RH side
30	5304523050 Frigidaire Refrigerator Cover
31	5304532661 Frigidaire Dishwasher Divider
40	5304531743 Frigidaire Refrigerator Guide
41	5304533202 Frigidaire Refrigerator Manifold
42	EPTWFU01 Frigidaire Refrigerator PureSource Ultra II Water Filter
43	5304519148 Frigidaire Refrigerator Holder
44A	5304523053 Frigidaire Refrigerator Connector
44	5304523052 Frigidaire Refrigerator Water Valve
45	5304524353 Frigidaire Refrigerator Tubing
46	5304527422 Frigidaire Refrigerator Tube
47	5304523685 Frigidaire Refrigerator Tubing
