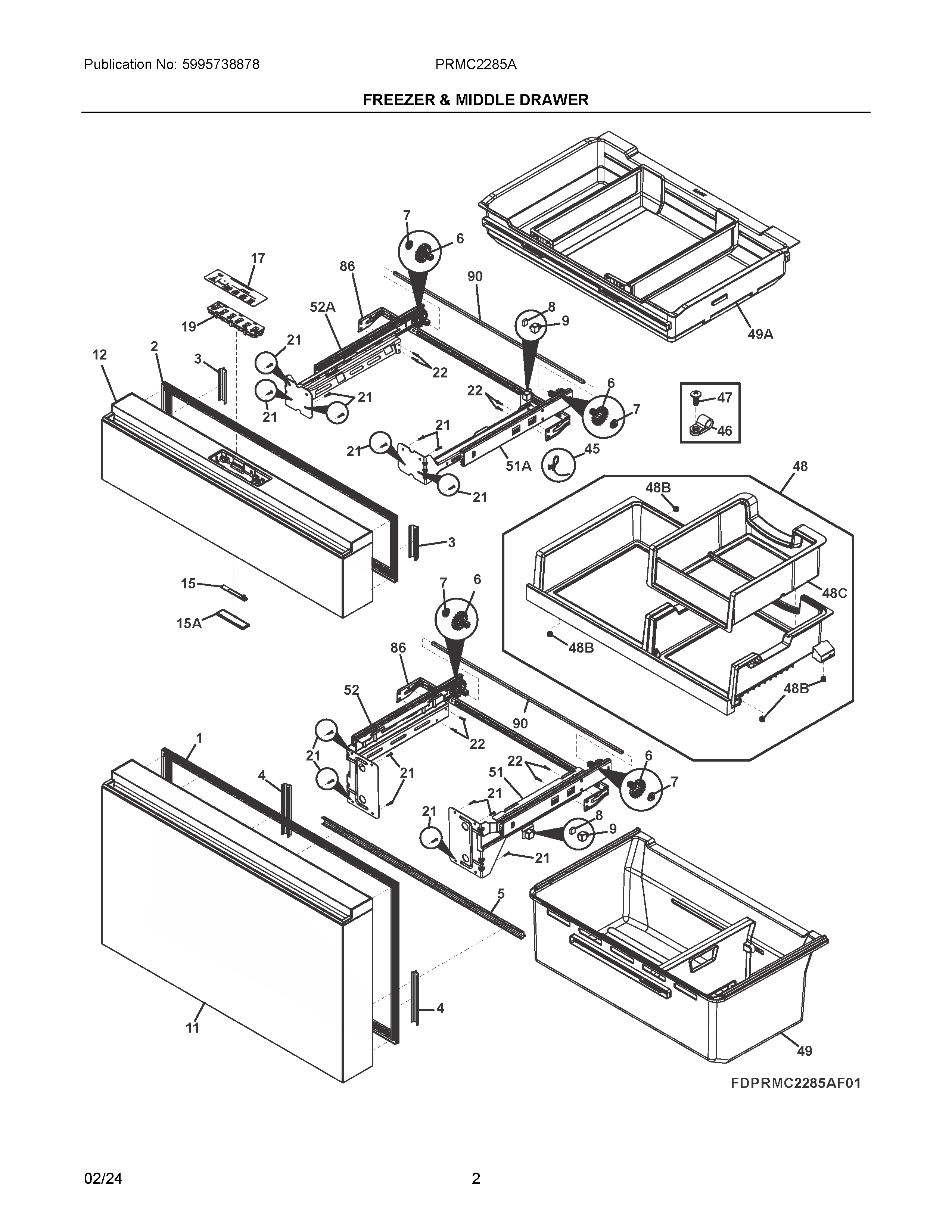

PRMC2285AF05 02 – FREEZER & MIDDLE DRAWER

Products

Position	Product
NIBA	811949503 Frigidaire Screw
NIA	SCREW, PHIL PN HD, M4 X 8
NIA	5304519084 Frigidaire Screw
NI	5304519048 Frigidaire Refrigerator Harness
1	5304519037 Frigidaire Refrigerator Gasket
2	5304519038 Frigidaire Refrigerator Gasket
3	5304519041 Frigidaire Refrigerator Gasket
6	5304524001 Frigidaire Refrigerator Gear
7	5304519043 Frigidaire Refrigerator Bearing
8	5304519044 Frigidaire Magnet
9	SUPPORT
11	DOOR ASSY FREEZER DRAWER
12	DOOR ASSEMBLY
15A	5304519049 Frigidaire Refrigerator Lens
15	5304523011 Frigidaire Refrigerator Light Board
17	OVERLAY, USER INTERFACE, MIDDLE DRAWER
19	5304531769 Frigidaire Refrigerator PCB Board
21	811949401 Frigidaire Refrigerator Screw
22	5304519053 Frigidaire Refrigerator Screw
45	539151026 Frigidaire Clip
46	CLAMP, CABLE, 1/4"
47	241953902 Frigidaire Refrigerator Screw
48C	5304523681 Frigidaire Refrigerator Container
48	5304523015 Frigidaire Refrigerator Assembly Drawer
48B	Cushion,rubber ,freezer drw
49A	BASKET ASSEMBLY, MIDDLE DRAWER, W/DIVIDER
49	5304519057 Frigidaire Refrigerator Assembly-Basket
51A	5304519060 Frigidaire Refrigerator Slider
51	5304519059 Frigidaire Refrigerator Slider
52A	5304519062 Frigidaire Refrigerator Slider
52	5304519061 Frigidaire Refrigerator Slider
86	5304519064 Frigidaire Refrigerator Bracket
90	5304524002 Frigidaire Shaft
